| Prod Model: |
vfvb |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| None: |
None |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Certification: |
CE |
| Application: |
Household |
| Insulation Material: |
Other |
| Range Of Application: |
Other |
| Brand: |
Jytop |
Product Description

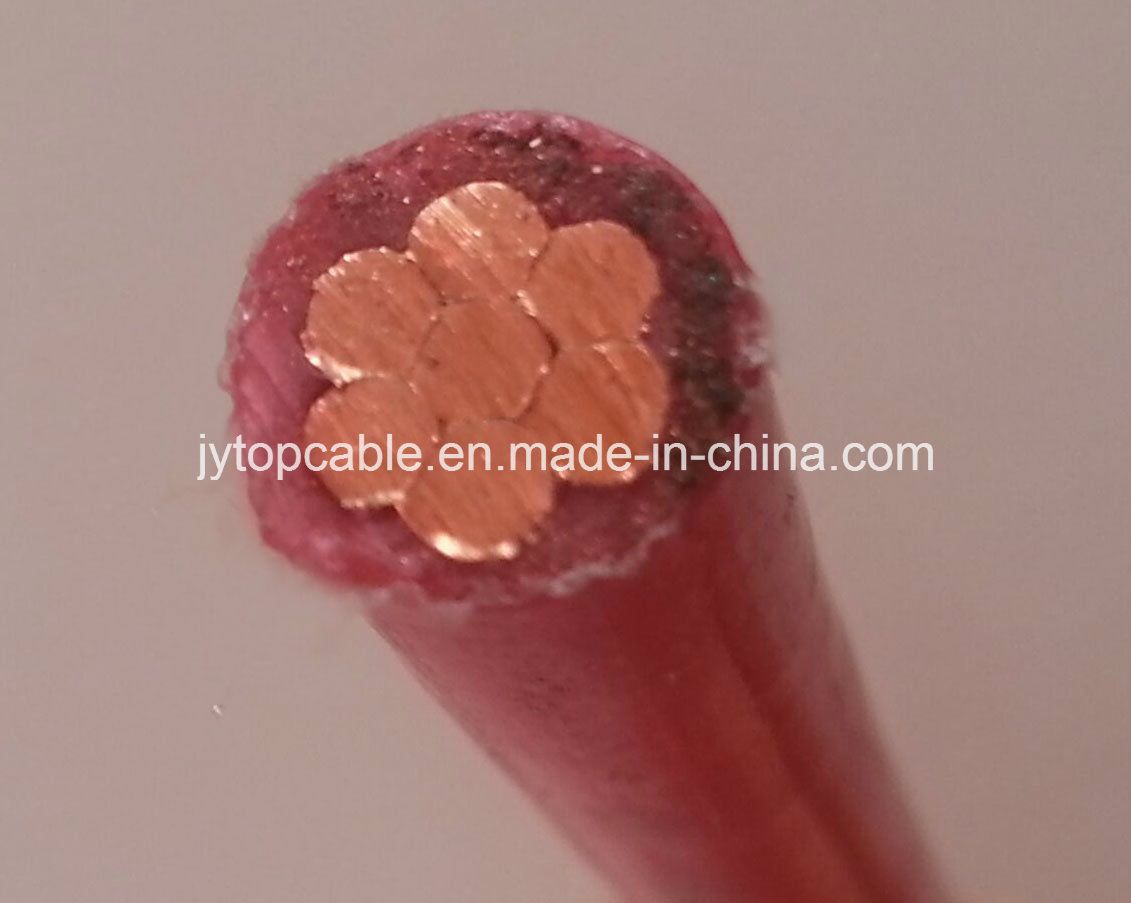

Cable Electrical VFVB 4 cores professional supplier:
This cable for energy distribution is suitable for all types of low voltage industrial type connections, in urban grids, building installations, etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. It can be buried or installed in a tube as well as outdoors without requiring addtional protection. Lastly, the Powerflex RV-K can excellently withstand damp conditions.
Rated Voltage Uo/U (Um) : 0.6/1kV
Standard applied: International IEC60502, IEEE383, UNE-EN 50265-2-1
Operating temp.: -15 °C to +90°C
Max. Short-circuit conductor temp.: 250°C
Conductor: Class 5 annealed bare copper
Insulation: XLPE (cross linked Polyethylene)
Color code: 1 core - Black; 2 core - Blue and Brown; 3 core - Brown, Blue and Green / Yellow; 4 core - Brown, Black, Grey and Green / Yellow; 5 core - Brown, Black, Grey, Blue, Green / Yellow
Outer sheath: PVC (color is black)
Lead free: Yes
Designation: R - XLPE insulation, V - PVC sheath, K - Flexible conductor
Flame retardant: EN 50265-2-1
Chemical resistance: Accidental
Weather resistance: Very good
Water proof: Good
Packing: 100m per roll, wooden drum or as per requirement
Company cert.: ISO9001/ISO14001/OHSMS18001/CE/CB/CCC/SAA
OEM: Available
Parameter sheet
| Cross Section | Overall | Weight Approx. | Bending radius mm | Current rating 40°C | Current rating |
| mm2 | Diameter | Kg/km | 25°C |
| | mm | | |
| 1 x 1.5 | 5.7 | 45 | 25 | 19 | 27 |
| 1 x 2.5 | 6.1 | 60 | 25 | 27 | 36 |
| 1 x 4 | 6.7 | 75 | 30 | 37 | 46 |
| 1 x 6 | 7.2 | 95 | 30 | 48 | 58 |
| 1 x 10 | 8.2 | 140 | 35 | 67 | 78 |
| 1 x 16 | 9.2 | 195 | 40 | 91 | 100 |
| 1 x 25 | 10.8 | 285 | 45 | 122 | 125 |
| 1 x 35 | 11.9 | 375 | 50 | 153 | 150 |
| 1 x 50 | 13.5 | 515 | 55 | 188 | 185 |
| 1 x 70 | 15.6 | 710 | 65 | 243 | 225 |
| 1 x 95 | 17.4 | 920 | 70 | 298 | 260 |
| 1 x 120 | 19.4 | 1160 | 80 | 348 | 300 |
| 1 x 150 | 21.4 | 1435 | 90 | 404 | 340 |
| 1 x 185 | 23.3 | 1735 | 95 | 464 | 380 |
| 1 x 240 | 26.6 | 2290 | 135 | 552 | 445 |
| 1 x 300 | 30.2 | 2885 | 155 | 639 | 500 |
| 1 x 400 | 34.8 | 3920 | 175 | 748 | 590 |
| 1 x 500 | 39.1 | 5015 | 200 | 860 | 670 |
| 1 x 630 | 43.7 | 6585 | 220 | 990 | 790 |
| 2 x 1.5 | 8.6 | 100 | 35 | 23 | 27 |
| 2 x 2.5 | 9.4 | 130 | 40 | 32 | 36 |
| 2 x 4 | 10.5 | 170 | 45 | 44 | 46 |
| 2 x 6 | 11.6 | 220 | 50 | 57 | 58 |
| 2 x 10 | 13.5 | 330 | 55 | 78 | 77 |
| 2 x 16 | 15.5 | 465 | 65 | 104 | 100 |
| 2 x 25 | 18.8 | 700 | 75 | 135 | 128 |
| 2 x 35 | 21.2 | 940 | 85 | 168 | 154 |
| 2 x 50 | 21.3 | 1160 | 85 | 204 | 183 |
| 2 x 70 | 24.7 | 1600 | 100 | 262 | 224 |
| 2 x 95 | 27.7 | 2075 | 140 | 320 | 265 |
| 2 x 120 | 31.3 | 2640 | 160 | 373 | 302 |
| 2 x 150 | 34.5 | 3255 | 175 | 430 | 342 |
| 2 x 185 | 37.8 | 3950 | 190 | 493 | 383 |
| 2 x 240 | 43.3 | 5220 | 220 | 583 | 442 |
| 3 G 1.5 | 9 | 115 | 40 | 23 | 27 |
| 3 G 2.5 | 9.9 | 155 | 40 | 32 | 36 |
| 3 G 4 | 11.1 | 205 | 45 | 44 | 46 |
| 3 G 6 | 12.3 | 275 | 50 | 57 | 58 |
| 3 G 10 | 14.3 | 415 | 60 | 78 | 77 |
| 3 G 16 | 16.5 | 600 | 70 | 104 | 100 |
| 3 x 25 | 20 | 900 | 80 | 115 | 106 |
| 3 x 35 | 22.7 | 1225 | 95 | 143 | 129 |
| 3 x 50 | 24.9 | 1555 | 100 | 174 | 152 |
| 3 x 70 | 29.2 | 2170 | 150 | 223 | 187 |
| 3 x 95 | 32.5 | 2805 | 165 | 271 | 222 |
| 3 x 120 | 36.7 | 3560 | 185 | 314 | 253 |
| 3 x 150 | 40.6 | 4415 | 205 | 363 | 286 |
| 3 x 185 | 44.3 | 5340 | 225 | 414 | 320 |
| 3 x 240 | 50.8 | 7050 | 305 | 489 | 370 |
| 3 x 300 | 64.1 | 10705 | 385 | 565 | 418 |
| 4 G 1.5 | 9.9 | 140 | 40 | 20 | 23 |
| 4 G 2.5 | 10.9 | 185 | 45 | 29 | 30 |
| 4 G 4 | 12.2 | 255 | 50 | 38 | 38 |
| 4 G 6 | 13.5 | 340 | 55 | 49 | 48 |
| 4 G 10 | 15.8 | 525 | 65 | 68 | 64 |
| 4 G 16 | 183 | 760 | 75 | 91 | 82 |
| 4 x 25 | 22.4 | 1155 | 90 | 115 | 106 |
| 4 x 35 | 25.1 | 1560 | 125 | 143 | 129 |
| 4 x 50 | 27.5 | 2075 | 140 | 174 | 152 |
| 4 x 70 | 32.3 | 2900 | 165 | 223 | 187 |
| 4 x 95 | 35.6 | 3735 | 180 | 271 | 222 |
| 4 x 120 | 40.5 | 4770 | 206 | 314 | 253 |
| 4 x 150 | 44.5 | 5895 | 225 | 363 | 296 |
| 4 x 185 | 49.2 | 7190 | 250 | 414 | 320 |
| 4 x 240 | 56.4 | 9495 | 340 | 489 | 370 |
| 5 G 1.5 | 10.8 | 170 | 45 | 20 | 23 |
| 5 G 2.5 | 11.9 | 225 | 50 | 29 | 30 |
| 5 G 4 | 13.4 | 310 | 55 | 38 | 38 |
| 5 G 8 | 14.9 | 420 | 60 | 49 | 48 |
| 5 G 10 | 17.5 | 645 | 70 | 88 | 64 |
| 5 G 18 | 20.2 | 925 | 85 | 91 | 82 |
| 5 G 25 | 24.6 | 1410 | 100 | 115 | 106 |
| 5 G 35 | 27.8 | 1905 | 140 | 143 | 129 |
| 5 G 50 | 32.5 | 2670 | 165 | 174 | 152 |
| 5 G 70 | 39.6 | 4075 | 200 | 223 | 187 |
Main manufacturing procedure
Copper wire drawing and annealing
Copper wire stranding
XLPE insulation extruding
Cores twisting
Outer sheath extruding and labelling
Spooling
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
