Cable Factory Flat FTTH 1core G657A LSZH Fiber Optical Drop Cable/Indoor Butterfly Drop Cable

Name: Cable Factory Flat FTTH 1core G657A LSZH Fiber Optical Drop Cable/Indoor Butterfly Drop Cable
Brand: all-electronics-online.com
SKU: 810405795
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 52/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH
Product Name:	Drop Cable
Messenger Od:	1.0mm
Strengthen Member:	Steel Wire
Jacket Material:	LSZH
Jacket Color:	Black
Installation:	Outdoor Aerial Drop Cable
Fiber Type:	G657A2
Fiber Color:	Customized
Outer Diameter Of Cable:	2.0mm*5.0mm
Application:	Drop Cable
Type:	Single-mode Fiber
Certification:	Drop Cable
Connection Structure:	Drop Cable
Sheath Material:	LSZH

Product Description

Fiber Single Mode 9/125 OS2, FRP Strength Member, LSZH , Butterfly Flat Indoor FTTH Drop Cable GJXFH

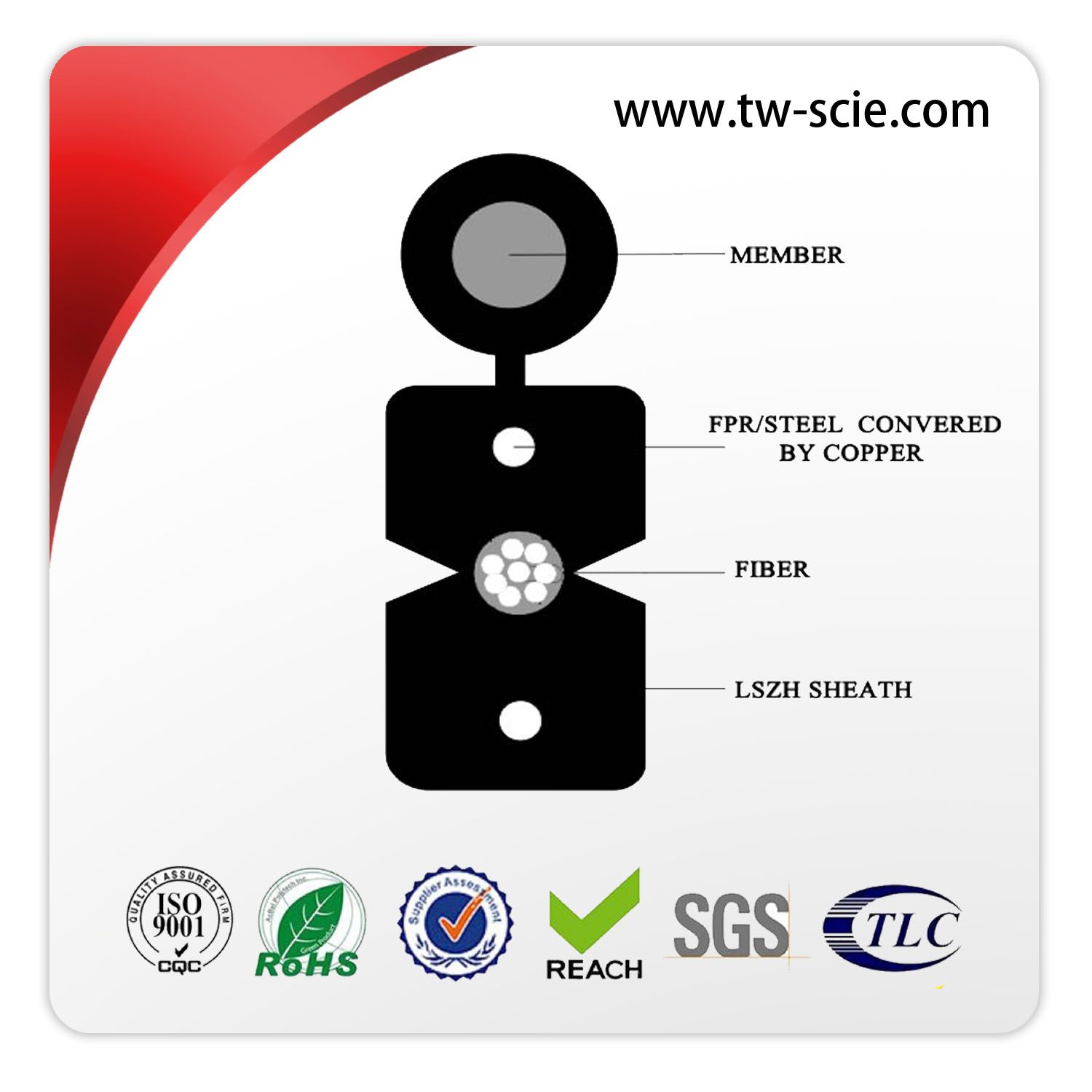

GJXFH FTTH Indoor Drop Cable uses butterfly flat structure, whose optical fiber unit is positioned in the centre. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.

Specifications

Cable Type	FTTH Drop Cable	Fiber Count	1 Fiber
Construction	Butterfly Flat	Singlemode G.657A	Singlemode G.657A
Outer Jacket Material	LSZH (Black/White)	Strength Member Material	FRP
Cable Diameter	(2.0±0.1)×(3.0±0.1)mm	Weight	10kg/km
Tensile Strength (long/short term)	100/200N	Crush Load (long/short term)	300/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-40 to +85 °C

Features

- Good waterproof performance
- Low smoke, zero halogen and flame retardant sheath
- Smaller diameter, simple structure, light weight, and high practicability
- FRP strength member ensures anti- electromagnetic and crush resistance
- Special low-bend-sensitivity fiber provides high bandwidth data transmission
- Novel flute design, easily strip and splice, simplify installation and maintenance

- Access network
- Local area network (LAN)
- Used end users directly cabling
- Fiber optic communication system
- FTTH indoor cabling and distribution

Detailed Images

Application

Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's very suitable for indoor cabling, end users directly cabling, and access network.

Related Products

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
