| Prod Model: |
NL-7/16" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
7/16 Inch |
| Length: |
965mm |
| Color Code: |
Green |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PE |
| Certification: |
RoHS |
| Range Of Application: |
Telecommunication |
| Brand: |
Optelec |
Product Description

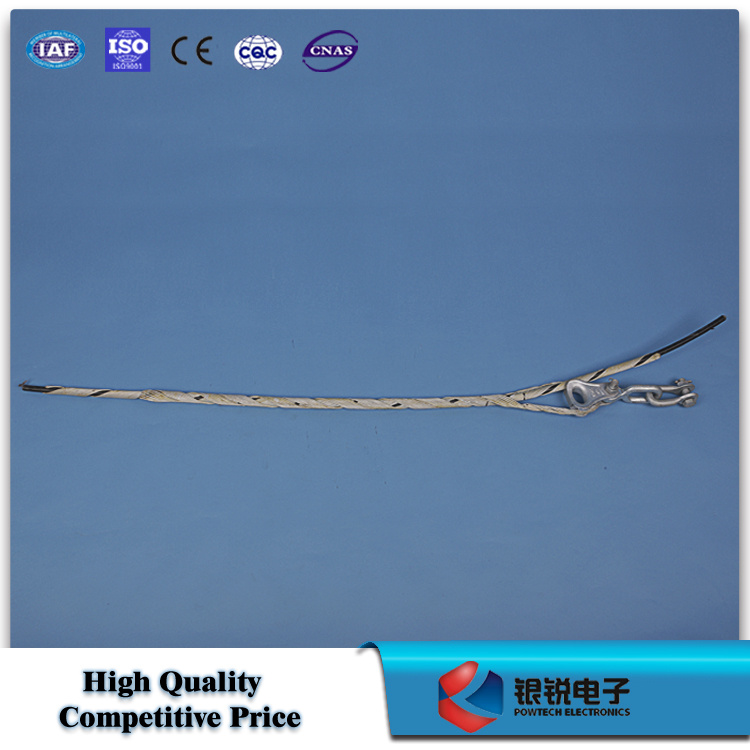

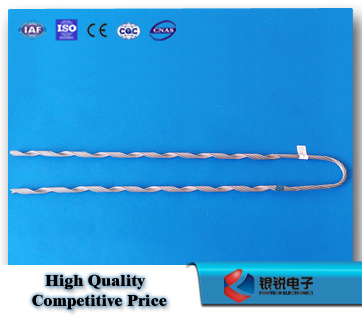

Preformed Guy Grips 7/16" for Stay Wire
Features:1. Preformed guy grip 7/16 inch
2. For use on Galvanized Steel Strand
3. Length: 965mm
4. Color: Green
5. Preformed guy grips Adopts the steel wire
Details:1. Preformed guy grips Armor Rod are designed to protect the conductor by Reducing bending, compression, and abrasion at the support point.
2. Preformed guy grips Armor Rod are recommended as protection for spans greater Than 300 ft. (91m).
3. Preformed Armor Rod are designed for use with ADSS, OPGW and ACAR conductors As well as Alumoweld and steel ground wire.
4. The material of Preformed Armor Rod is aluminum alloy or aluminum Covered steel wire.
5. Preformed Armor Rod sets are manufactured with right-hand lay as standard

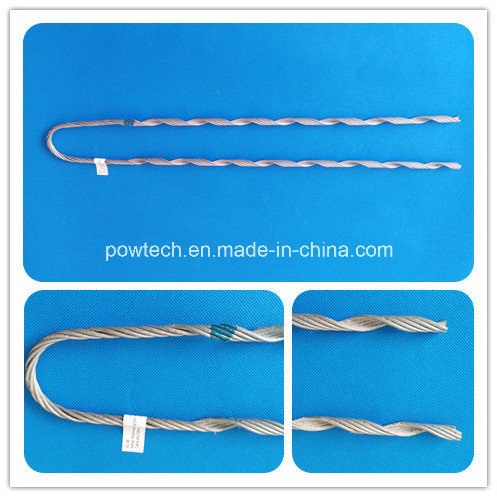

Detailed Images:

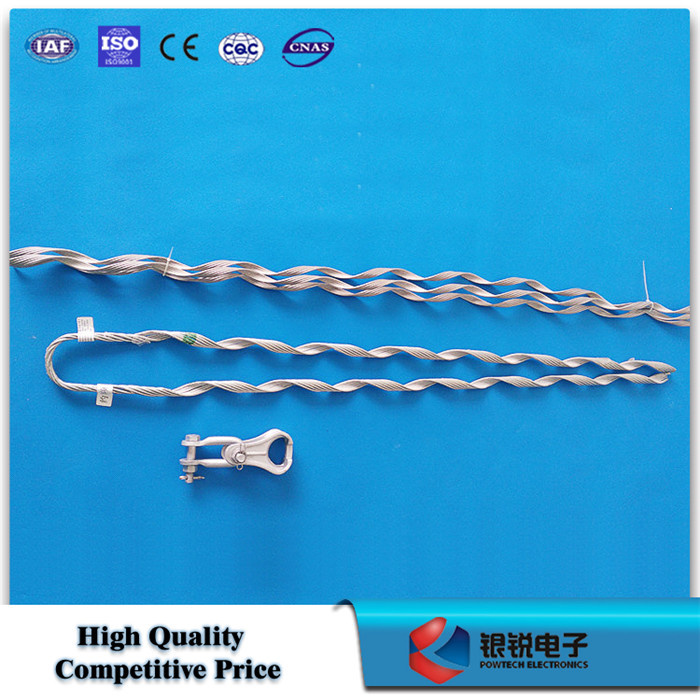

DescriptionProduct Name: Preformed guy grips
Model: NL
The Preformed guy end grips are used for fixing terminals tower stay wire and where the large size stay wires are needed, such as electric transmission line, antenna, correspondence and lines etc, which can replace the common U-T clamps and wedge type clamps of line tower. The structure of preformed guy grip is simple. Two legs of preformed wire form an empty pipe, and its rear is a preformed stranding link. After coiled around the stay wire, the two legs of preformed wire can generate great grip strength, and stranding link is fixed on the earth anchor or tower. The unique theory and structure provide the clamp with particular function and vivid characters.
Technical Specifications:| Model | Guy Wire (mm) | Length (mm) | Guy Wire (mm2) | Weight (kg) | Color code |
| NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
| NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
| NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
| NL-70/G | 10.82~11.10 | 1016 | 70 | 0.8 | Green |
| NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
| NL-100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
| NL-120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |

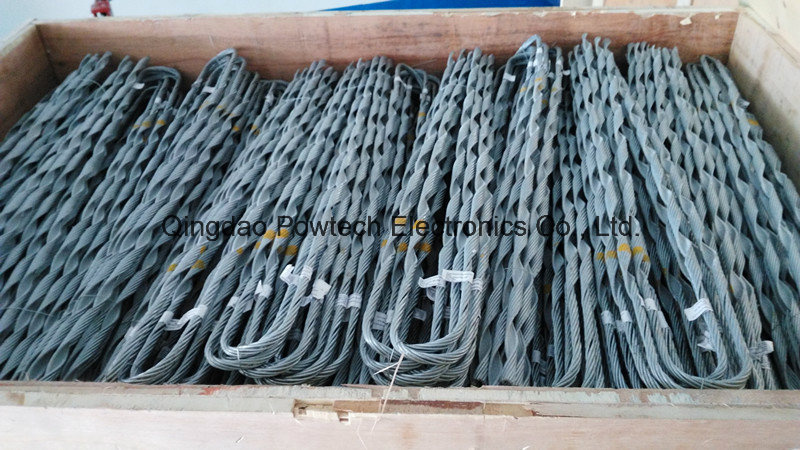

Warehouse:

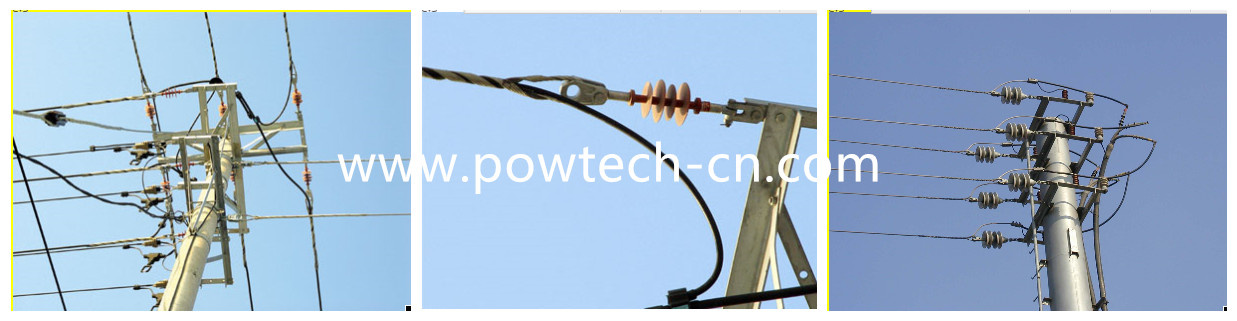

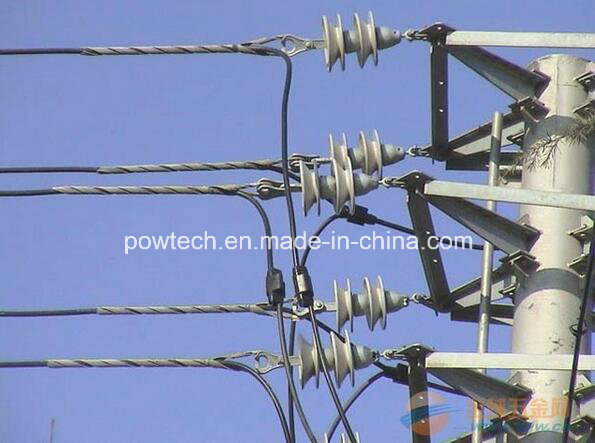

Installation Guide:
Why Choose Us?1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated
