Cable Ring Type LV Split Core CT Assistant Manufacturer

Name: Cable Ring Type LV Split Core CT Assistant Manufacturer
Brand: all-electronics-online.com
SKU: 799921865
Availability: InStock
Rating: 4.9 (103 reviews)

Price:	US $ 54.6-60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMZK-11C-2
Split Core:	Cable
LV:	Indoor
Current Transformer:	Busbar Type
Indoor:	Cable Ring Type
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

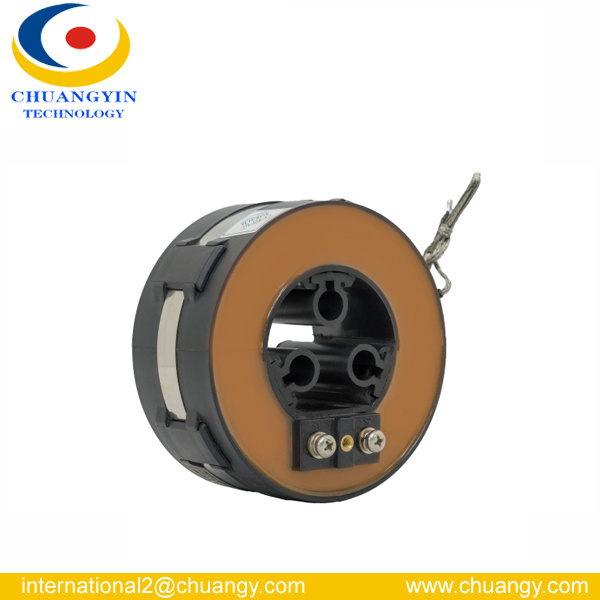

LMZK-11 split core current transformers(CT)

high quality epoxy resin poured into inflaming retarding PVC ring doss hell is adopted in two half cirque metal slug and secondary windings
It has many advantages, including small size and cubage, light weight, and dispense with maintenance
It is especially fit to be fixed on the incoming/outgoing cables of the high-tension switchgear, and the two half cirque of the current transformer encircle the split phase cable tightly and uniformly
It has two configuration formats of single ratio and double ratios and two Installation modes of plastic waistband and stainless steel waistband, and it is applicable to all the 35 mm2-500mm2 and 12kV cables

Type	LMZK1-11C			LMZK1-11P			LMZK1-11CP
Purpose	Measuring current transformer			Protection current transformer			Double winding current transformer
Ratio	Accuracy class and rated burden			Accuracy class and rated burden			Accuracy class and rated burden
Ratio	0.5	1	3	10P15	10P10	10P5	0.5	1	10P10	10P5
50/5			2.5
75/5			2.5			1.5
100/5		2.5				2.5
150/5		2.5			1.5	3.75
200/5	2.5	5			2.5	5
300/5	2.5	5		1.5	2.5	5		2.5		1.5
400/5	5	5		1.5	2.5	5	2.5			2.5
500/5	5	5		2.5	3.75	7.5	2.5			2.5
600/5	5	5		2.5	5	10	2.5			2.5

Type	LMZK2-11C			LMZK2-11P			LMZK2-11CP
Purpose	Measuring current transformer			Protection current transformer			Double winding current transformer
Ratio	Accuracy class and rated burden			Accuracy class and rated burden			Accuracy class and rated burden
Ratio	0.2	0.5	1	10P15	10P10	10P5	0.5	1	10P10	10P5
50/5			2.5			2.5
75/5			2.5			2.5		2		1.5
100/5		2.5	5		2.5	5		2.5		2.5
150/5		2.5	5		2.5	5		2.5		2.5
200/5		3.75	7.5		3.75	7.5		3.75		2.5
300/5	2.5	5		3.75	5	10	2.5	5	2.5	5
400/5	5	7.5		3.75	5	10	5	5	2.5	5
500/5	5	7.5		5	7.5	15	5	5	3.75	7.5
600/5	5	10		5	7.5	15	5	5	3.75	7.5

Note:
