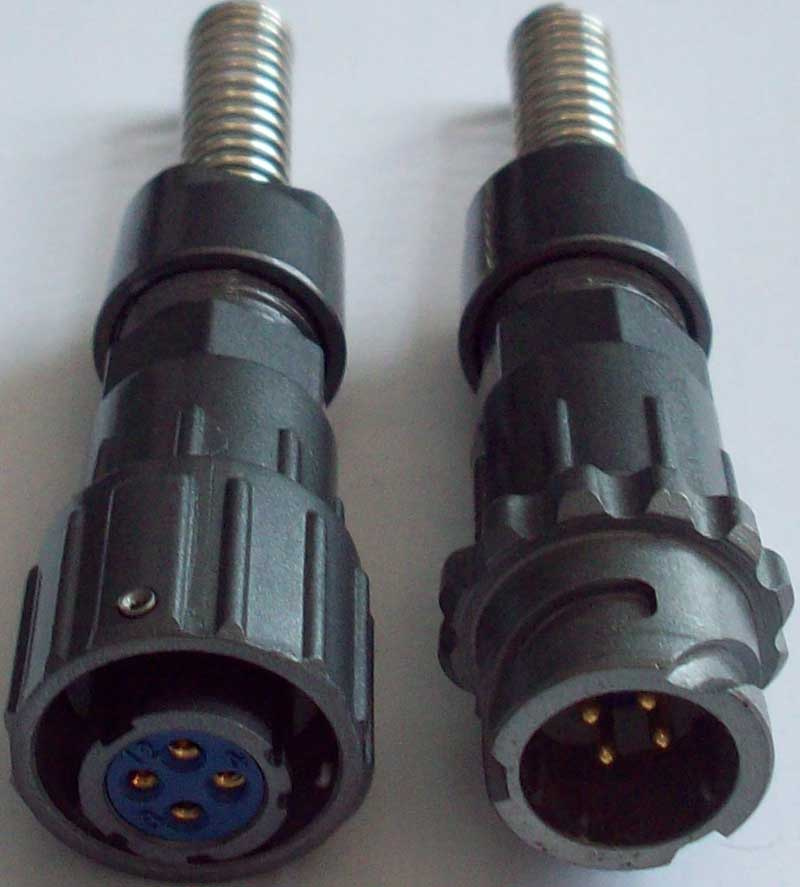

Cable to Cable Connecting Fq14 Series Circular Connectors

Name: Cable to Cable Connecting Fq14 Series Circular Connectors
Brand: all-electronics-online.com
SKU: 681658905
Availability: InStock
Rating: 4.7 (121 reviews)

Price:	US $ 2.7-3.3/Set
Trade Terms:	FOB
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQ14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Fq14-4zpy-7
Size3:	Fq14-4zpy-8
Size1:	Fq14-4t-7
Size2:	Fq14-4t-8
Current:	10A

Product Description

FQ series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment...

Product Ordering
FQ 14 - 4 T K - 8
1 2 3 4 5 6
1. Name of series: FQ
2. Shell size: 14
3. Number of contacts: 4
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle, ZPY
Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Cable gauge OD: 5, 6, 7, 8
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min. (IP67)

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
