Cable Type Current Test Ca Clamp on Probe

Name: Cable Type Current Test Ca Clamp on Probe
Brand: all-electronics-online.com
SKU: 688691032
Availability: InStock
Rating: 4.3 (31 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Ca Clamp on Probe
Features:	Low Phase Shift for Power Measurement
Measurement Range:	1mA to 12A AC
Nominal Input Current:	10A
Output Signal:	10mA AC at Nominal Input Current
Max. Jaw Opening:	8mm
Accuracy:	0.1%, 0.2 %
Temperature Range:	-20 °c...+55 °c
Output Model:	Lead Output
Weight:	225g

Product Description

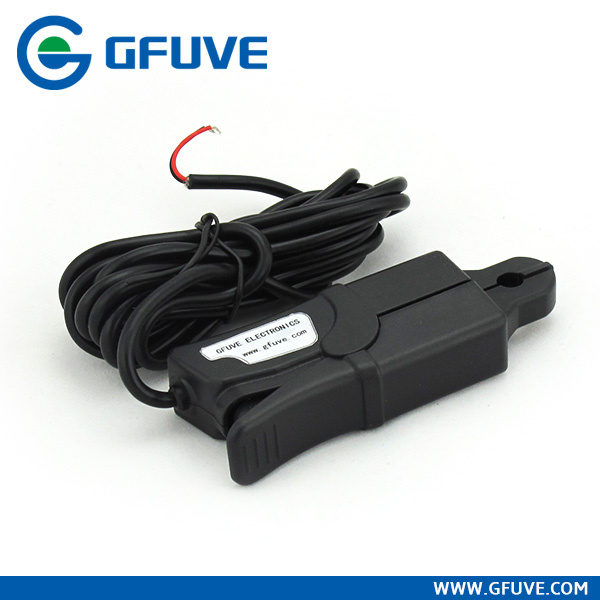

Q8 10A/10mA Cable Type Current Test CA Clamp on Probe
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 10A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· Output model: Lead output (2.5m)

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	10 A
Max. Cont. Input current	12 A
Accuracy	0.5 %, 0.2%
Over voltage category	CAT III 600 V
Output signal	10mA AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	8 mm
Standard	EN 61010-1
Dimensions	42.6mm x 122.5mm x 23 mm
Weight	225 g
