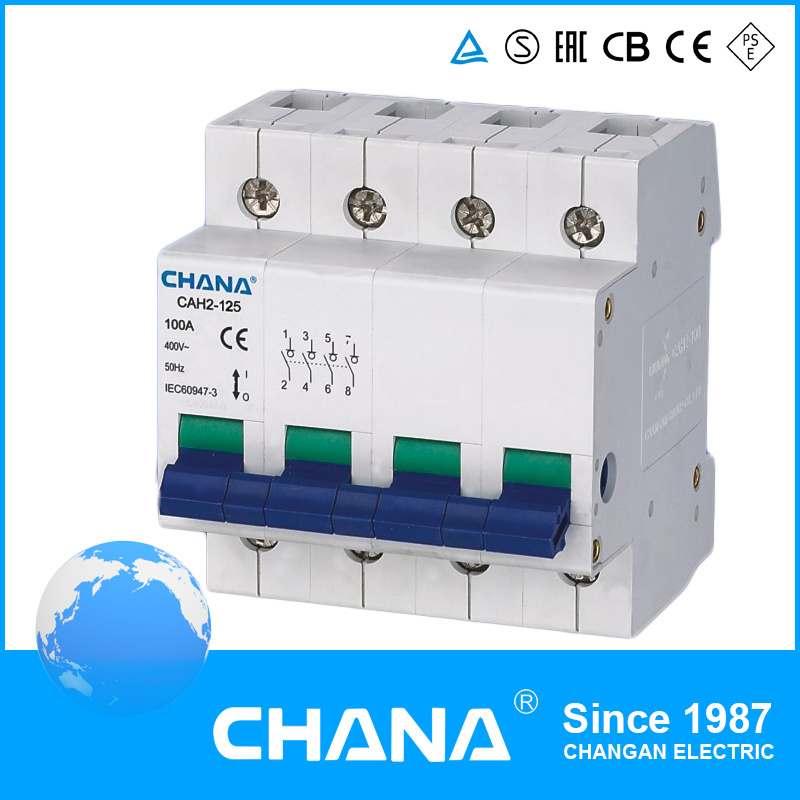

CAH2-125 1P-4P Main Switch Isolation Switch

Name: CAH2-125 1P-4P Main Switch Isolation Switch
Brand: all-electronics-online.com
SKU: 758478485
Availability: InStock
Rating: 5 (52 reviews)

Price:	US $ 0.6-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAH2-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current In:	32, 40, 50, 63, 80, 100A
Manufacturer:	Original Factory
Company Certification:	ISO9001,SGS
Company Credit Rate:	AAA
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CCC
Installation:	DIN-Rail
Structure:	Isolation Switch
Poles Number:	1p,2p,3p,4p
Function:	Avoid The Shock Hazard and Fire Caused by Earth L

Product Description

Free samples can be provided!!!
Electrical Features
Rated voltage Ue: 240/415V
Rated current ln: 32, 40, 50, 63, 80, 100,125A
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short-time withstand current lcw: 12le, 1s
Rated making and breaking capacity: 3le, 1.05Ue, cosφ =0.65
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min: 2.5kV
Insulation voltage Ui: 500V
Pollution degree: 2
Uilization category: AC-22A

Mechanical Features
Electrical life: 1, 500
Mechanical life: 8, 500
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 50mm2 18-1/0AWG
Terminal size top/bottom for busbar: 50mm2 18-1/0AWG
Tightening torque 2.5 N*m 22In-Ibs.
Connection: From top and bottom
Dimensions(mm)
About US:
Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"
Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
