| Prod Model: |
GN-MR100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220V 50Hz (Can Be Changed) |
| Roll Size: |
Dia100mm, L 200mm |
| Power: |
200W |
| Roll Hardness: |
HRC62 |
| Supply 1: |
Lithium Ion Battery Materials |
| Supply 2: |
Lithium Ion Battery Machine |
| Supply 3: |
Thermal Battery Materials |
| Product Name: |
Battery Rolling Machine |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
24V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
Product Description
Welcom to contact us any time:

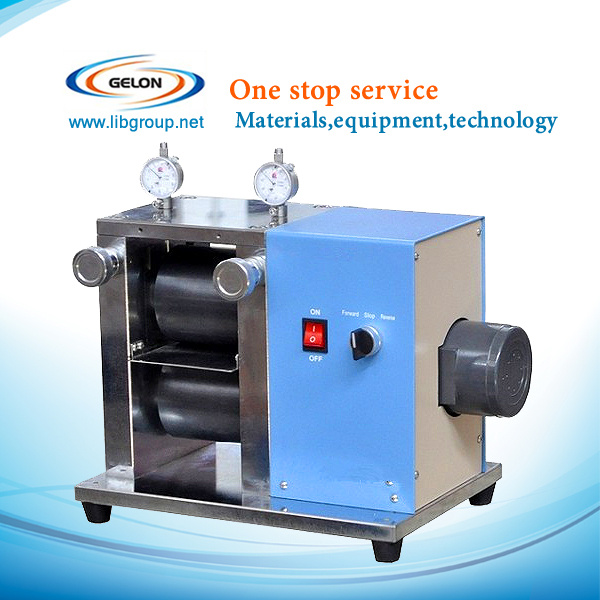

Mobile:+86 13255390189Lab Calendaring Machine/ Pressing Machine for Lithium Ion BatteryProduct Description
Specifications:
1. Supply Power: AC220V/50Hz.
2. Roll size: Diameter 100mm x 200mm
3. Working Power: 0.20KW
4. Roll surface hardness: HRC62
5. Press thickness: 0~1.5mm
6. Pressure width: 200mm Max.
7. Working speed: Multiltronic, linear speed 0-1.5m. Min, adjustable.
8. Max. Pressure: About 3 T
9. Roller polished
10. Weight: 45Kg
11. Size: 700*320*310mm
Operation Manual:
1. Adjustment method of electrode thickness
1)Put the pressure material into the middle of roll, meanwhile spin two interval adjustable handles by anti-clockwise direction (namely down direction), until cant move. Then equip the dialgage and tighten the screws(note: When equipping the dialgage should press it then tighten screws)
2)Turn dialgage dial to zero, then meanwhile oppositely spin two interval adjustable handles, loosen the roll and take out the pressure material
3)Take out the material, then spin the handles so that to make the dial indicator zero, then read, when 5μ And smash once is best.
2. Turn on and open power.
3. Choose the foreward or reversal knob, if foreward, pay-off from front and ejection of compact from back, reversal is opposite. We could supply one stop solution ( turn key project) for lithium ion battery production line.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode batterymaterials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
PROJECT EXPERIENCES:
BOLIVIA TURN KEY PROJECT SUCCESSFULLY COMPLETE
Now we have successfully completed the lithium battery production line project (including mobile phone battery and E-bike battery production line project, and lab. line ) with Bolivia government. All of the materials, equipments and technology that used in the project is provided by our company.
The produced battery performance is very good, highly praised by Bolivia president.
And president personally attend the celebration dinner and take photos with our manager as a commemorate. Next project we will cooperate with Indonesia government.
TKS FOR YOUR TIME,WELCOME TO INQUIRY.
Gelon (Int) LIB Group Ltd. was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Now we have Gelon New Battery Materials Co., Ltd., E-Battery Lithium Battery Co., Ltd., Linyi Dake Trading Co., Ltd., with total manufacturing facilities of around 100, 000 square meters and more than 500 staff. Owning a group of experienced engineers and staff, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
Gelon New Battery Materials Co., Ltd. Focus on R&D, manufacturing and sales of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) and separator and so on for new power lithium ion batteries.
Meanwhile, we have our own lithium ion battery factory- E-Battery Co., Ltd., mainly produces lithium ion battery for camera, mobile, EV application. Based on the factory, we can offer all services (Raw Materials, Equipments, Technology, etc. ) for full set of lithium battery producing line to help clients to establish a factory of lithium battery.
Our group also has a subsidiary exporting company -- Linyi Dake Trade Co., Ltd, mainly deals in all exporting business of group. We have a professional and experienced exporting team to supply perfect services for you. Through trading company, all of our products and services such as materials, equipments, technology, etc. Will be offered to clients from all over the world.
We are confidence on our quality and service. And we ensure that we will offer you the best services based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one-stop services of lithium battery in the world.
Welcome batteries manufacturers all over world visit our company, and your inquiry will be appreciated.
