Prod Model: |
gps car tracking device tk105 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
Ce FCC |
Warranty Time: |
1 Year |
Weight: |
220g |
Size: |
110*82*28mm |
GPRS Communication: |
TCP UDP |
Important Features: |
RFID, Camera, Central Lock System |
Central Lock System: |
to Open/Close Car Door |
Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
GSM/GPRS: |
850/900/1800/1900MHz |
Web GPRS Tracking Platform: |
with Google Map |
Type: |
GPS Tracker |
Use: |
Automotive |
Carrier Frequency: |
Dual-Frequency |
Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
Port Number: |
20 |
Model: |
GPS 105 |
Screen Size: |
No Screen |
Chip: |
No |
Brand: |
Baanool |
Certification: |
ISO9001 |
Product Description

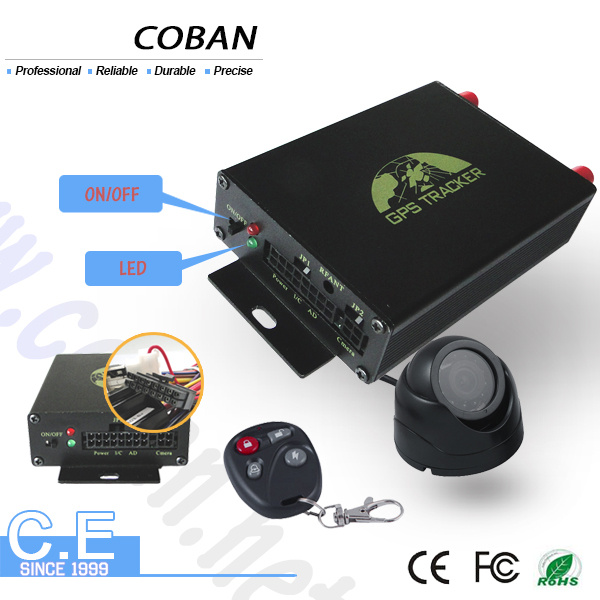

Camera GPS Car Tracking Device with Fuel Monitor Engine ShutFunctions 1. GPS + LBS double solution,exact street address | if not GPS Fix, GSM message LAC code or tracking by LBS in GPRS mode |
2. Auto track continuously | Track with limited times upon time interval Track with unlimited times upon time interval smart track upon time and distance interval |
3.Turning points update automatically | vehicle changing driving direction,effective in GPRS mode |
4.GPS drift suppression | GPS data stop updating if vehicle is not driving |
5.Data logging or load | |
6.Alarms | Low battery alarm GPS blind Spot alert SOS Geo-fence Overspeed alert Movement alert Multi-area management Built in Acceleration Sensor Alarm |
7.Sleep Mode | No sleep/Sleep by time/Sleep by shock/ Deep sleep by shock/Awake according to schedule |
8. Real time tracking via SMS or GPRS | (TCP/UDP) |
9.Track on demand by calling or sms comamnd | |
10. Live http google map link in message | |
11.Five authorized phone numbers | |
12. Voice Surveillance | monitor |
13.Easy switch for track or Monitor | |
New Functions |
14.ACC work and alarm |
15.Cut off the Oil and Power,Engine stop and resume |
16.Fuel sensor, Fuel alarm |
17.Remote controller for option |
18.Arm/disarm/silent mode/ |
19.Door oopen alarm,external shock sensor alarm, Accident alarm |
20.Speed detector (speed recording,kilometrage report,governor mode) |
21.Vehicle maintenance notification |
22.RFID |
23.Take photo |
24.Temperature alert |
25.Electric lock and Vapor lock swith |
26.Supports dual SIM card |
Specifications Content | Specification |
DIM | 92*71*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPSAccuracy | 5m |
GPS Start Time | Cold status 45s Warm status 35s Hot status 1s |
Applicable vehicle power | 12 V/24V |
Backup Battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
Storage Temp | -40°C to +85°C |
Operation Temp | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Waranty 1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
