| Prod Model: |
car vehicle tracking device 105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Dual SIM Card with Camera / RFID / Speed Limited |
| Weight: |
55g |
| Network: |
GSM/GPRS |
| Tracking Way: |
SMS, Phone APP, Our Web Platform |
| Warranty Time: |
12 Months |
| Delivery Time: |
2-3 Business Days |
| OEM: |
Yes |
| Function: |
Vehicle GPS Tracking Device |
| Certificate: |
CE FCC ISO |
| Manufacturer Or Not: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
105 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

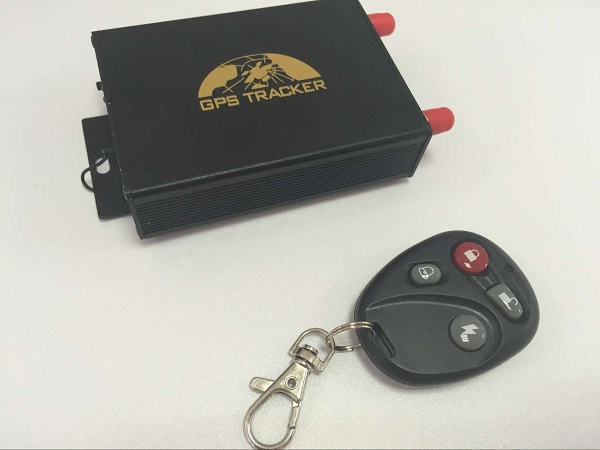

Model: GPS tracker TK-105A /B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* GPS/LBS (location based service) double way tracking solution.
* SMS/GPRS/Internet Network data transmission.
* Configure by remote terminal, remote control vehicle.
* Snapshoot photo automatically when alarm triggered
* RFID.
* Fuel level measurement, Oil leakage or theft alarm.
* Vehicle Speed Detection.
* Kilometrage report.
* Tracking and monitoring by SMS, web server and mobile app
3. Main Function discription
*Get absolute street address by SMS
*Take photo via camera by SMS message and temperature monitoring
*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*Location based service (LBS)
*SOS button alarm
*Geo fencing alarm
*Turning points update automatically in GPRS mode
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Compatible with car original anti-theft system
*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.
*Remote Start engine
*GPS blind area alarm
*Setup Appointment for engine
*Dual sim card and real time fuel sensor for fuel monitor
*Central locking system
*Empty / Loaded
*Footbrake Alarm
*Support sleep mode
*Bonnet alerts
*Vehicle maintenance notification
4. Optional function:
*Central locking system box
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID
5,Specifications:
Content |
Specifications |
Size |
92*71*26mm |
Weight |
120g |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
GPS start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V/24V |
Backup battery |
Chargeable changeable 3.7V 500mAh Li-ion battery |
Storage Temp |
-40°C to +85°C |
Operation temp |
-20°C to +65°C |
humidity |
5%--95% non-condensing |
6, Packaging Detail:
GPS Unit
16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Remote control
CD | manual | package
Optional accessories:
Central locking relay box
Shock sensor | alarm siren
SD Memory card | Fuel sensor
RFID | Camera
Speed detector IC of speed governor(LM2917 weld on PCB)
7, Web Platform Tracking:
8. Andriod and IOS Apps for GPS trackers:
