| Prod Model: |
GPS TK105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Tk105 GPS Tracker with RFID, Camera, Speed Limiter |
| Tracking Mode: |
SMS/GPRS Mode |
| Warranty Time: |
12 Months |
| Certificate: |
CE FCC ISO |
| Application: |
Tracking Car/Motorcycle/Truck |
| Weight: |
170g |
| Optional Accessory: |
RFID, Camera, Fuel Sensor |
| APP Software: |
Support |
| Band: |
850m/900/1800/1900MHz |
| OEM: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
MEDIATEK |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
105 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE, FCC |
Product Description

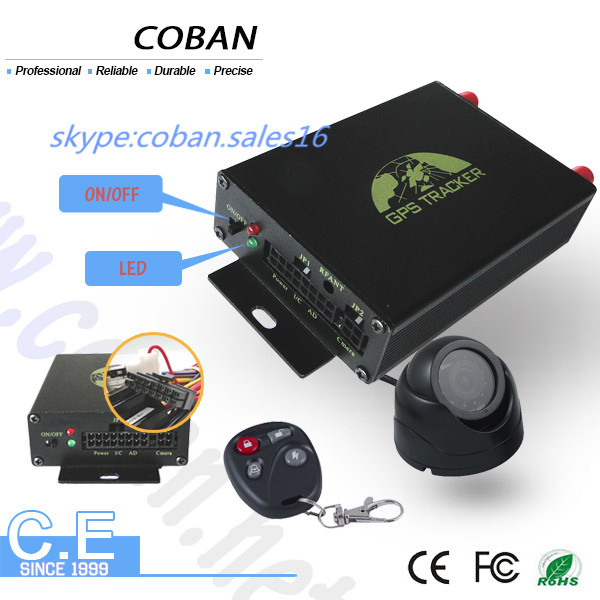

Camera Vehicle Car GPS Tracker Tk105b with Speed Limited, RFID reader
Model: GPS tracker TK-105A/B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
Features * GPS/LBS (location based service) double way tracking solution.
* SMS/GPRS/Internet Network data transmission.
* Configure by remote terminal, remote control vehicle.
* Snapshoot photo automatically when alarm triggered
* RFID.
* Fuel level measurement, Oil leakage or theft alarm.
* Vehicle Speed Detection.
* Kilometrage report.
* Tracking and monitoring by SMS, web server and mobile app
Main Function *Get absolute street address by SMS
*Take photo via camera by SMS message and temperature monitoring
*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*Location based service (LBS)
*SOS button alarm
*Geo fencing alarm
*Turning points update automatically in GPRS mode
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Compatible with car original anti-theft system
*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.
*Remote Start engine
*GPS blind area alarm
*Setup Appointment for engine
*Dual sim card and real time fuel sensor for fuel monitor
*Central locking system
*Empty / Loaded
*Footbrake Alarm
*Support sleep mode
*Bonnet alerts
*Vehicle maintenance notification
Optional function:*Central locking system box
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID
Specification
Content | specifications |
| DIM. | 92*71*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

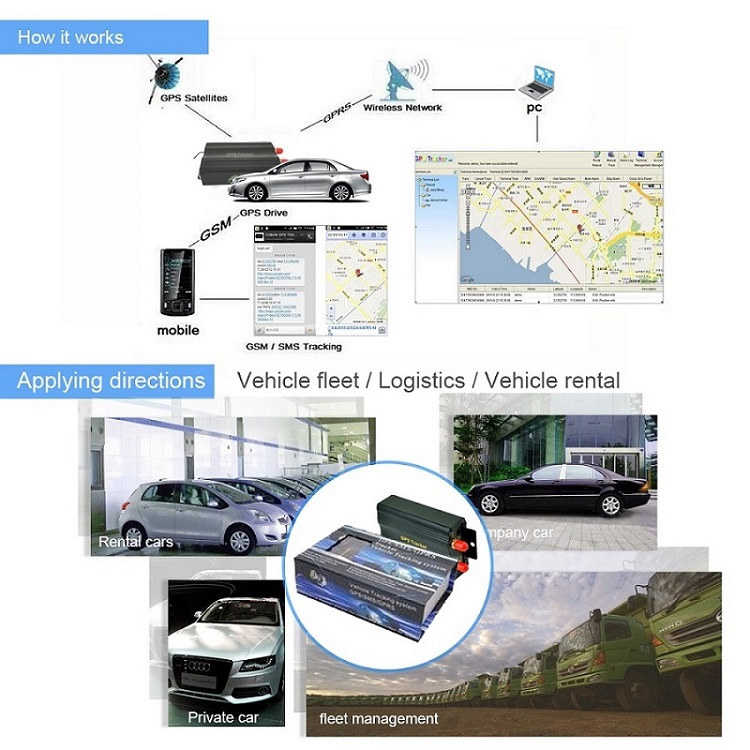

5 tracking solutions: SMS tracking on cellphone with a googlemap link.
Get absolute address by SMS
PC Installation software tracking.
Web server online tracking
Andriod/ios APP

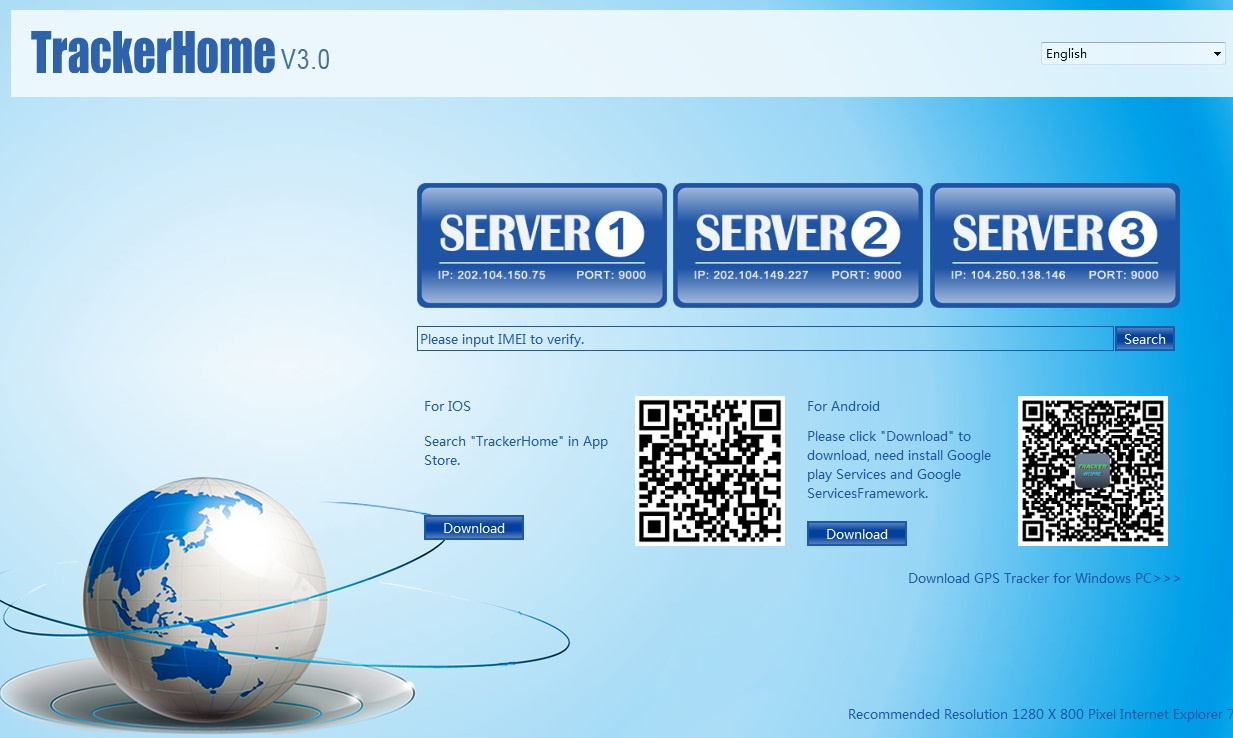

Web platform www.gpstrackerxy.com
Android & IOS APP on mobile phone
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
