| Prod Model: |
Camera vehicle gps tracker GPS105A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Weight: |
170g |
| Delivery Time: |
1-3 Working Days |
| New Features: |
Speed Limiter, Engine Cut, RFID Camera |
| Anti Theft Car Tracking: |
Shut Engine off, Lock/Unlock Car Door |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental (12 to 24V) |
| Alarms Under Arm State: |
Door Alarm, Acc Alarm, Shock Sensor Alarm, Photogr |
| Fuel Alarm (Optional): |
Oil: Xx%+Latitude/Longitude |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Vehicle GPS Tracker GPS105A |
| Brand: |
Baanool |
| Chip: |
No |
| Certification: |
Ios9001 |
Product Description

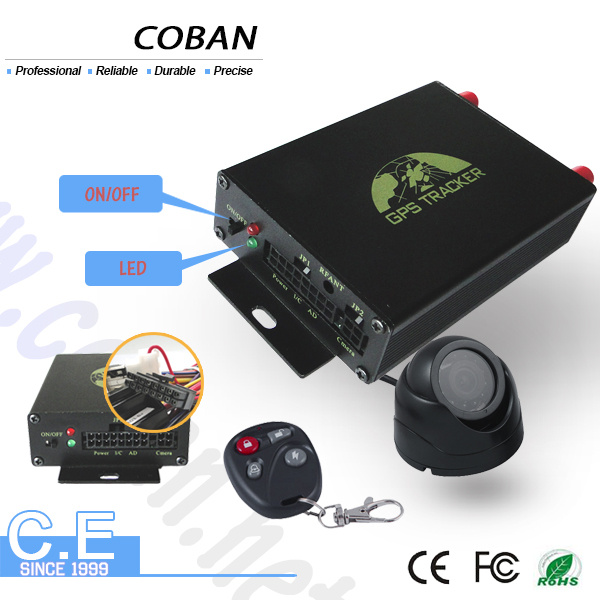

Camera Vehicle GPS Tracker with Speed Governor / Limiter GPS105
-Location memory
-cut engine
-camera
-fuel check sensor alarm
AVL GPS Tracking System with Location Memorization GPS105
Description:
It is based on GSM/GPRS (850/900/1,800/1,900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel&temperature detection and tracking in its entirety.
Track by multiple tracking 5 ways:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS 3.Free PC based tracking application (send you in CD package) 4. Optional web server www.gpstrackerxy.com 5.APP
Basic functions:
* Location based service (LBS) if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network.
* Get location in absolute street address
*Show location directly on mobile phone with HTTP Google map link
* Single tracking/ Auto track continuously
*Five authorized phone number to protect tracker information and assets
* View photos on cell phone
* Storage& Data Load (optional)
*Engine-cut and restore alarm by SMS/GPRS
*Fuel alarm (optional) If the tracker device detects the fuel decrease by 8% in three minutes, then it will send oil leak or theft alarm "oil: xx%+latitude/longitude" to authorized numbers
* Photograph
*SD card (optional)
* Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*SOS button alarm
*Geo fencing alarm
*Over-speed alarm
* Alarms under Arm State: Door alarm, ACC alarm, Shock Sensor alarm, Photograph
*Movement alert
*Compatible with car original anti-theft system
Applying directions:
*Vehicle fleet/logistics/vehicle rental (12 to 24V)
Content |
specifications |
DIM. |
92*71*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V -24V
|
Backup battery |
Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |
