| Prod Model: |
JQ-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
Diode |
| Usage: |
Metal |
| Laser Power: |
50W/75W/100W |
| Marking Area: |
110mm*110mm |
Product Description
Canada Diode Side-Pump Laser Marking Machine
Description:
JQ diode side-pump laser marking machine is the new product developed by JQ Laser Company, it is updated product of YAG laser marking machine. It adopts the most advanced laser technology in the world and the imported diode laser arrays. The 808 nm laser diode pumping Nd: YAG mediums produce quantity of antiparticles, which will cause 1064nm high power laser pulse output under the function of Q switch. The beam quality is very good and the line is rather nice. For the convenience fo our customers, we have improved the machine structure. The optical system uses the fully sealed structure. It looks more beautiful and easier to operate. Not only can it work alone, but also compatible with other equipments in production line.
The size for JQ Diode side-pump Laser Marking Machine is small. The volume is only 1/4 of the traditional lamp pump laser.
The optical system uses the fully sealed structure to prevent the dust entering laser body and reduces the equipment failure rate.
The machine is able to preview the light path and point out the focus, which are very convenient for the materials that will be processed to be located.
This machine provides the precise three dimensional worktable and newest outside water-cooling system. The cooling system can control the water temperature very accurately, which ensures the long time working. Besides, the machine running noise is extremely low.
Applicable materials:
This laser marking machine is widely applied in most metal marking industries such as brass, titanium, steel, iron, aluminium and so on It can mark on many non-metals also. For example, ABS, nylon, PES. PVC. Makrolon, etc.
Guarantee and after sale service:
A) Guarantee for the whole machine: 2 years
B) Providing aroundthe clock professional service to customers, any call for technical help will be handled in 24 hours
C) International after service department, and our engineers can speak English well, which make communication easy
D) Free training, free maintenance and free technical support within warranty period
E) We offer life-long free service in technical upgrading.
Workshop:

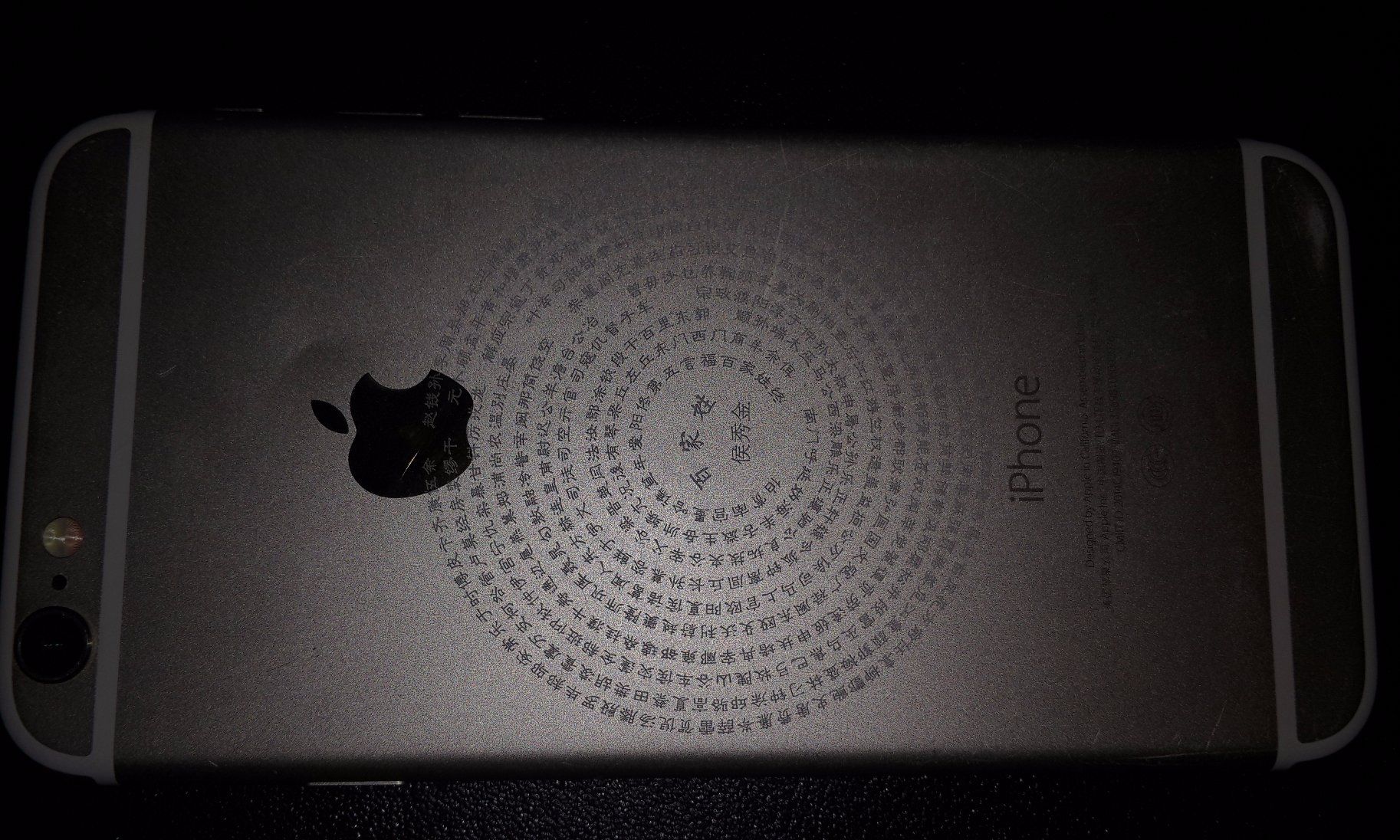

Samples:
********************************************************
We also provide other laser machine with different working area and different function,
There must be a right machine for you:
Laser cutting and engraving machine:
JQ4030, JQ6040, JQ9060, JQ1060, JQ1290, JQ1390, JQ1490, JQ1412, JQ1318, JQ1325, etc.
Laser marking machine:
JQ80W-CO2 glass tube. JQ30W-CO2 metal tube, JQ50W-Diode side-pump, JQ20W-Fiber, etc.
********************************
Please feel free to contact with us!
Be sure to be your best supplier!
| Type | JQ-50 | JQ-75 | JQ-100 |
| Laser Power | 50w | 75w | 100w |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Cooling System | Water cooling | Water cooling | Water cooling |
| Beam Quality | m2 | | |
| Laser Repetition Frequency | ≤50kHz | ≤50kHz | ≤50kHz |
| Marking Area | 110mm*110mm/4.33in*4.33in |
| Optional Marking Area | 150mm*150mm | 200mm*200mm | 300mm*300mm |
| Making Depth | ≤0.3mm | ≤0.4mm | ≤0.5mm |
| | The depth is adjustable according to different materials. |
| Linear speed | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s |
| Min. Line Width | 0.02mm | 0.02mm | 0.02mm |
| Min. Letter | 0.25mm | 0.25mm | 0.25mm |
| Repeatable Accuracy | ±0.002mm | ±0.002mm | ±0.002mm |
JQ company manufactures more than fifty different kinds of machines types, including quick speed laser engraver and cutter, big working table machine type, stone engraving machine, logo cutter, fabric engraver and cutter. Glass engraver, metal cutter and etc. The machines are widely used in many different fields and industries, such as advertisement, package. Metal sheet cutting. Kitchen ware,
Machine body manufacturing, ship building, aerospace equipment, military products, medical equipments, computer case, light fitting, arts and gifts, nonferrous metal manufacturing and marking, sports equipment, upholstered furniture.
Besides domestic market, the machines are also sold to Hundreds of international countries. Such as United States, Germany, France, Middle-EasLindia, Russia, Brazil. Thailand, Malaysia, Mexico, Korea and so on.
Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day, always being in the lead position
Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system.
We welcome customers from all over the world to cooperate with us and achieve win-win. Please feel free to contact us for further information.
Our company uses our good service for market, based on high product quality, and developing on technology, making progress by innovation. JQ is very glad to be at your service!
