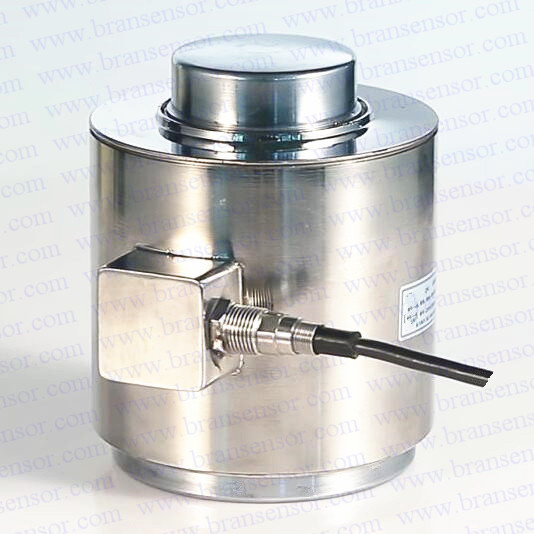

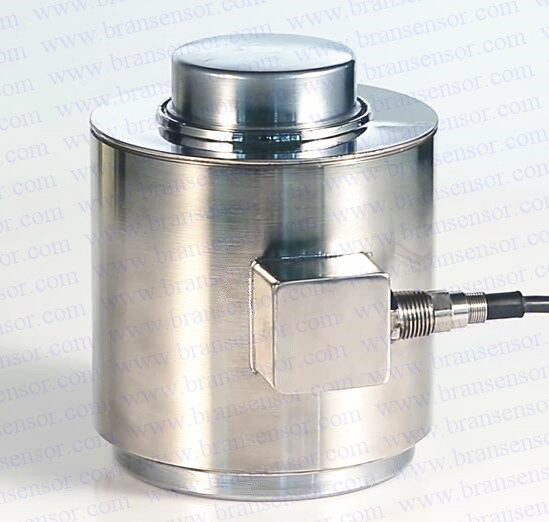

Canister Column Load Cell (BP-9)

Name: Canister Column Load Cell (BP-9)
Brand: all-electronics-online.com
SKU: 822105795
Availability: InStock
Rating: 4.9 (129 reviews)

Price:	US $ 160-180/Piece
Min Order:	4/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BP-9
Capacity:	5-450t
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauges

Product Description

Product Name: Vishay CSP-M Stainless Steel Truck Scale Load Cells
Model: BP-9

Material: Stainless Steel
Cpacity: 5t-50t

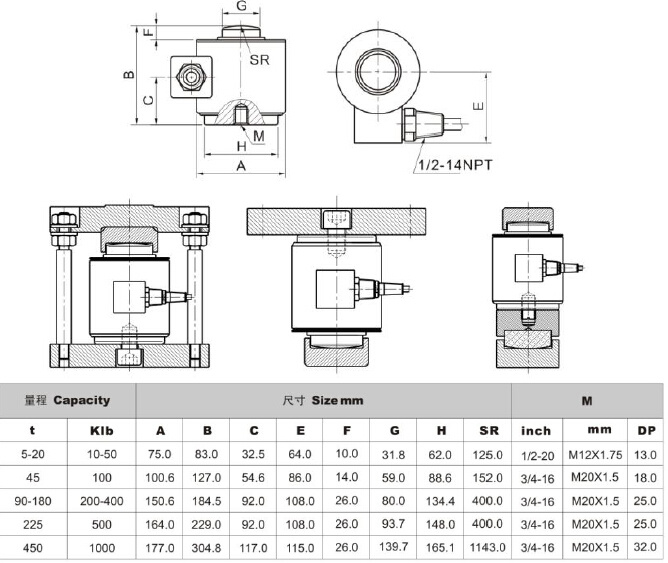

Design

Datasheet

Number	Specifications	Technique
1	Capacity	5-20T, 45T, 90-180T, 225T, 450T
2	Rated output	2.0±0.005mV/V, 1.75±0.005mV/V
3	Zero balance	±1.00%F.S.
4	Non-linearity	0.02%F.S.
5	Hysteresis	0.02%F.S.
6	Repeatability	0.01%F.S.
7	Creep(30min)	0.02%F.S.
8	Temp.effect on output	0.02%F.S./10ºC
9	Temp.effect on zero	0.02%F.S./10ºC
10	Input impedance	450±5Ω
11	Output impedance	480±3Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~50ºC
16	Operation temp range	-20~60ºC
17	Safe overload	120%F.S.
18	Ultimate overload	200%F.S.
19	Cable size	Φ6×9000mm
20	Material(option)	Alloy steel/stainless steel
21	IP Class	IP68

Instruction:
The BP-8 is an analog canister load cell with maximum capacities from 5 t to 450 t. is the ideal load cell for tank scales, hopper weighing, mixer scales and conveyor weighing. The rocker pin load cell provides the best weighing performance.
The load cell's robust design together with the patented rotation stop makes the load cell especially fit for use in vehicle scales. IP68 protection class and stainless steel design guarantee a long lifetime.
The BP-8 load cell with capacity range from 5t to 450t allows the weighing of mid size tanks, hoppers and silos with ease. The stainless steel design, hermetic sealing and IP68 protection provides the best reliable in tank weighing applications.
Advantages:
Simple to install
Stainless steel material, laser welded, IP68 with Highest reliability
Inbuild overvoltage protection
Self restoring rocker pin, no corner adjustment necessary
High overload capacity
Best overvoltage protection

Need something special or a completey customized design? Contact RANS to discuss your particular application requirements.

This load cells could replace Vishay CSP-M load cells directly with same design and performance. This is special for truck scales clients. Looking forward to your favorable reply.
