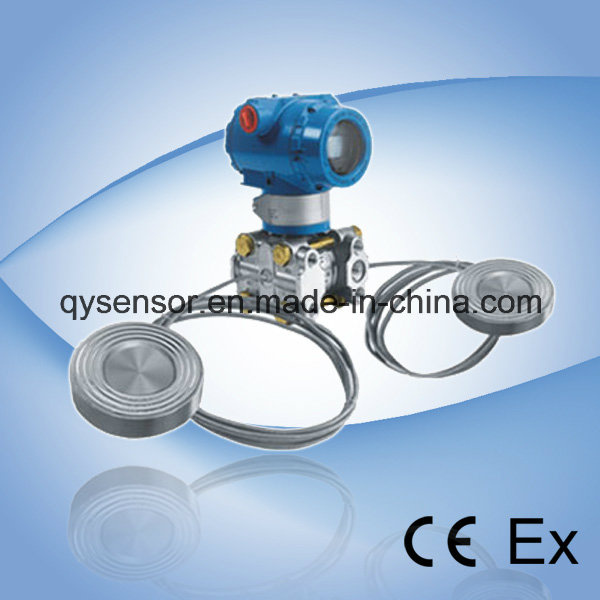

Capacitance Differential Pressure Transmitter for Tank
| Price: |
US $ 234-296/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QP-86F |
| Static Pressure: |
0~3.5 MPa |
| Accuracy: |
≤0.25%Fs |
| Output Signal: |
4~20mA |
| Material: |
Stainless Steel |
| Product Name: |
High Viscosity Differential Pressure Transmitters |
| Pressure Range: |
0~2500kpa |
Product Description
QP-86F Capacitance Differential Pressure TransmitterProduct introductionQP-86F pressure and differential pressure transmitter provide several credible measure method for avoiding the medium contact the membrane of the transmitter, application as follow.
1.transmitter need to be isolated from high temperature medium
2.medium is able to corrupt the sense organ of the transmitter
3.suspension or High Viscosity medium
4.medium would curing or crystallization
5.If change the midium, the connection need to be cleaned strictly.
6.connection must keep clean.Technical DataOutput: Analog output: two wire 4~20mADC
Digital output: two wire 4~20mADC and variable digital signal in accordance with HART AGREEMENT.Power: supply voltage 12.5~45VDCLimit load: Max load resistor Rmax in loop decided by the supply voltage,see the below drawing. HART AGREEMENT require the load resistor not less than 250Ω,not more than 600ΩCommunication distance: Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max.Output display: 4 digital display,5 digit LCD display, pointer type.Marking: ExiaII CT5 ;explosion-proof isolation typeZero offset: can positive offset or negative offset, but can not overstep the utmost valueTemperature: environment temperature -40~85ºC(When choose LCD : -20~70ºC)Medium temperature: -40~+104ºCFilled liquid operating temperature: Silicon oil: -29~+149ºC
Inter oil: -18~+204ºCpressure limit: Thread pattern: 3.45Kpa(Absolute)~13.78Mpa
Flange pattern: 3.45Kpa(Absolute) rated pressure of Flange
Plug-in pattern: 3.45Kpa(Absolute) rated pressure of Flange
Flat pattern: 3.45Kpa(Absolute) rating pressure of Flangerelative humidity:5~98%RHstartup time: less than 5 secCapability change: less than0.16cm3Damp adjust: 0.20~25sec.Protection: To avoid the datas are modified random, can utilize software or protect switch lock the memory dataPerformanceReference condition: In the condition : No offset, 1.53m capillary fill with silicon oil, 316SS membraneTemperature influence:
long-distance transmission fitting( typical) one side with(1.53m capillary long-distance transmission fitting)Flat pattern: error is less than 0.62Kpa/55ºC,capillary filled with silicon oil, the error increase 0.2 Kpa along with the length increased 1.53m. Tread and Flange Pattern: error is less than1.99Kpa/55ºC,capillary filled with silicon oil, the error increase 0.62 Kpa along with the length increased 1.53mLibration effect: withstand frequency 200Hz at any direction, arouse error ±0.05%URLPower influence: < 0.005%/V of rangeLoad influence: no load influence.Install position influence: about 250Pa zero offset, can be eliminate via calibration,no range influence.RF interference: drift is ±0.1%span in the condition of 30-1000MHz frequency and the most field intensity 10V/mPackaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
