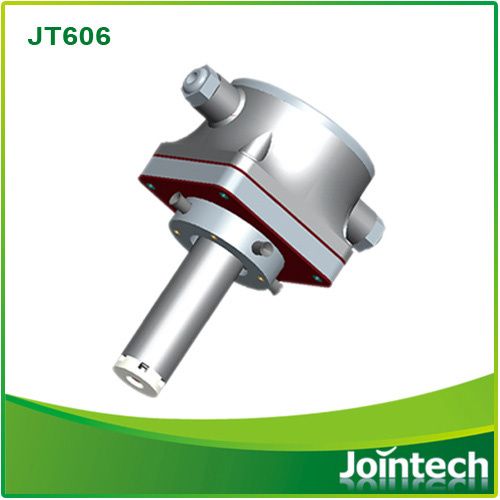

Capacitance Fuel Level Sensor with Voltage Analog Output 0~5V

Capacitance Fuel Level Sensor with Voltage Analog Output 0~5V
Price: US $ 85-100/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 3/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: JT606X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE, Anti-Explosion Certification
Housing Material: Aluminum Alloy
Protection Grade: IP67
Outputs: RS-232, RS-485, 0-5V, 4-20mA
Function: Fuel Monitoring
Accuracy: 0.5%
Length: 100-2500mm
Kind: Liquid Level Transmitter
Structure: All in One, All in One~
Input Voltage: 4~70V
Type: Fuel Level Sensor

Product Description

The capacitance fuel sensor is used for fuel monitoring in dynamic conditions for fleet fuel management.


1. Applications
Logistics Fleet Fuel Consumption Monitoring
Oil Transportation Remote Monitoring
Genset Fuel Consumption Monitoring
Buses Fuel Consumption Monitoring
Coaches Fuel Consumption Monitoring
Consutruction Machineries Fuel Consumption Monitoring
Diesel Fuel Consumption Monitoring


2. Key Features

Cut off,

Flange patent

high Accuracy: 0.5%

Resolution: 1mm

Kinds of Output Signal: Voltage, Current, RS232, RS485
            Output Voltage: 0— 5V
            Output Current: 4— 20mA

Size: 100— 2500mm


Easy Installation
Easy Calibration


3. Parameters
IndexParameter
Acquisition PrincipleCapacitive
Power Input4-70V
Power Consumption0.13W/5V,0.19W/12V,0.38W/24V
AccuracyResolution: <1mm, Accuracy: <0.5%
Communication InterfaceRS-232, RS-485, CAN (Customizable)
Baud Rate2400,4800,9600,57600,115200 (or customized by users)
Output Voltage : 0-5V, Current: 4-20mA
Measuring Range10CM-150CM
Protection GradeIP67
Housing MaterialAluminum alloy
Operating Temperature-40°C ~~+85°C
Storage Temperature-40°C ~~+105°C
Weight400g (500mm)
Size550mm, 750mm, 1000mm (Customizable)

Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
