Capacitance Linear Excellent Displacement Sensor for Air-Actuated Control System

Name: Capacitance Linear Excellent Displacement Sensor for Air-Actuated Control System
Brand: all-electronics-online.com
SKU: 825007665
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LWH-500mm
Feature:	High Resolution
Warranty:	12 Months
Grade:	IP65
Repeatability:	0.01mm
Material:	Aluminum Alloy

Product Description

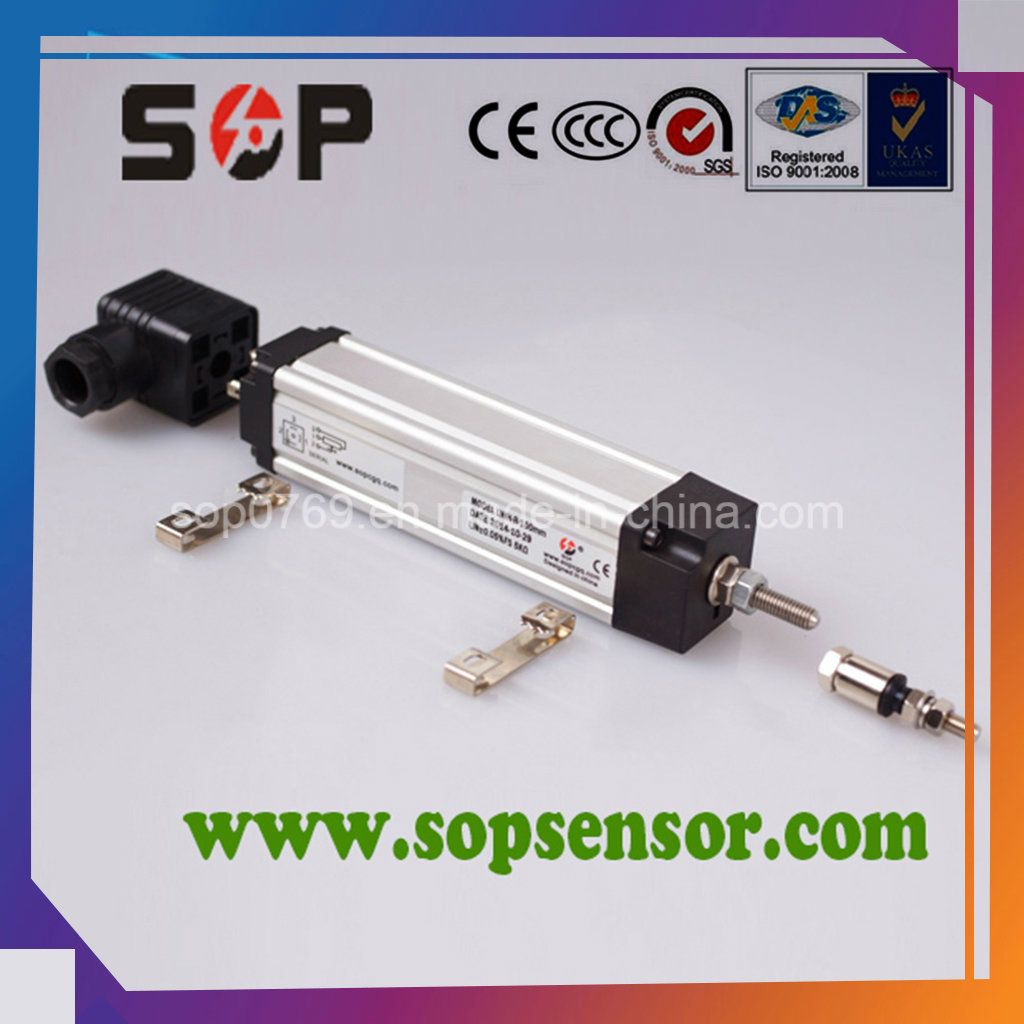

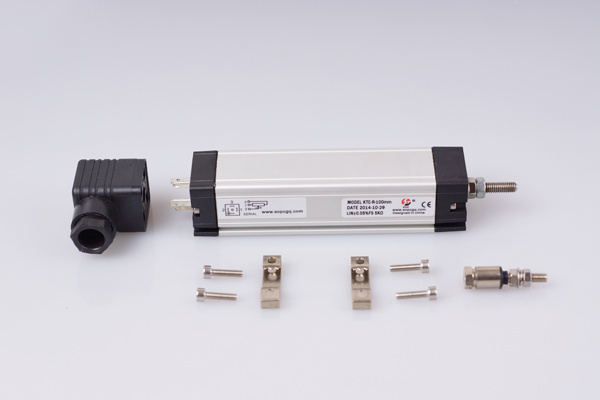

Capacitance Linear Excellent Displacement Sensor for Air-actuated Control System

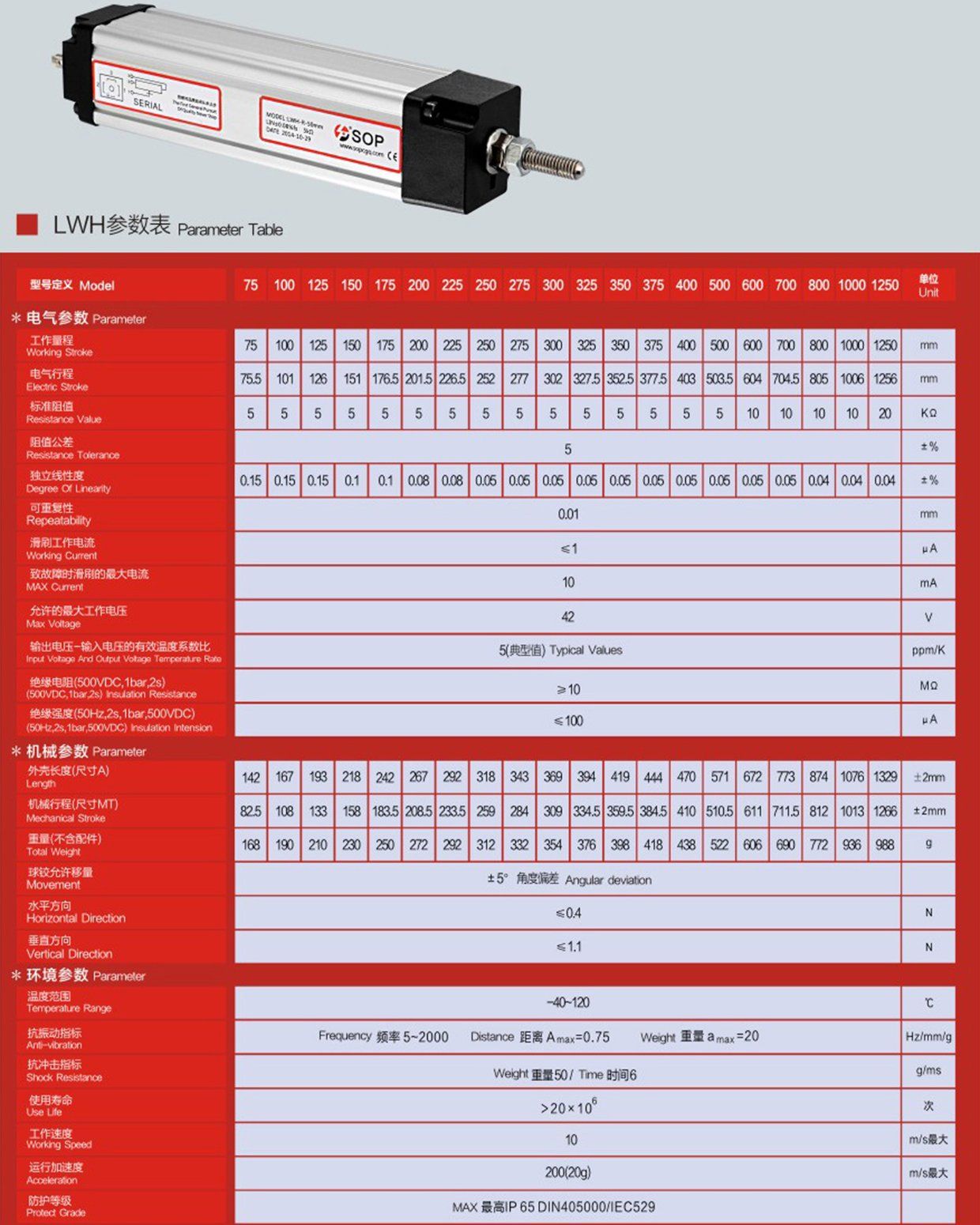

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-1250	-40~120	≤0.4	≤1.1

Product Feature:
Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

LWH is a versatile, suitable for various types of equipment to detect the position, such as: injection molding machines, die-casting machines, rubber injection machines, shoes, EVA injection machine, woodworking machine, hydraulic machine

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
