Capacitance Proximity Switch Cm12, Capacitive Sensor

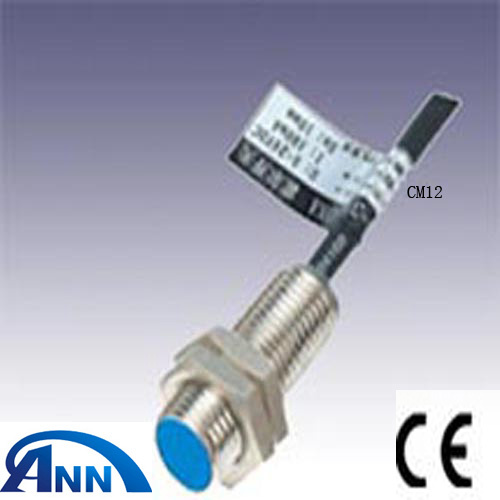

Name: Capacitance Proximity Switch Cm12, Capacitive Sensor
Brand: all-electronics-online.com
SKU: 792949915
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CM12
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Product Description

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model explanation

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Technical Parameters:

Model NO.	Detection distance	Working voltage	Output		Flush
Model NO.	Detection distance	Working voltage	Form	State	Flush
CM12-3004NA	0-4mm	DC6-36V	NPN	NO	Non-flush
CM12-3004NB	0-4mm	DC6-36V	NPN	NC	Non-flush
CM12-3004PA	0-4mm	DC6-36V	PNP	NO	Non-flush
CM12-3004PB	0-4mm	DC6-36V	PNP	NC	Non-flush

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
