| Prod Model: |
CBB15 CBB16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Welding Inverter Capacitor(Cbb15/Cbb16) |
| Rated Voltage: |
200~3000VAC |
| Operating Temperature: |
40/70/21 or 40/85/21 |
| Capacitance Tolerance: |
±5% |
| Class Of Operation: |
Class B, Class C |
| Class Of Safety Protection: |
P0/P2 |
| MOQ: |
1 PCS |
| Shape: |
Squareness |
| Capacitor Case: |
Plastic |
| Export Market: |
Global |
| Type: |
Polystyrene-film-capacitors |
| Application: |
Welding Machine |
| Package Type: |
Surface Mount |
| Capacitance: |
0.47~100UF |
| Manufacturing Material: |
Plastic Case and Capacitor Mpp Film |
| Electrolyte: |
Film Capacitor |
| Usage: |
EMI, Welding Machine , UPS , Electric Vehicles etc |
| Filter: |
Film Capacitor |
Product Description
****************Basic Info.****************
& Basic specifications:

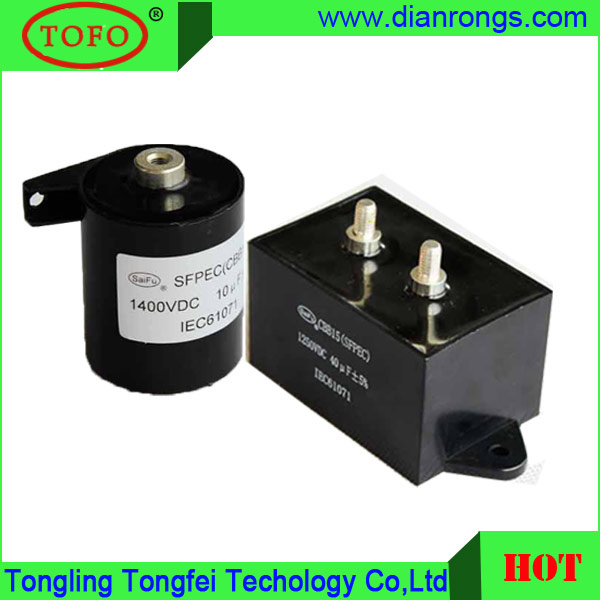

Model No.: Welding Inverter Capacitor(CBB15/CBB16)
Type: Polypropylene Capacitor
Capacitance: 0.47~100uF
Capacitance Tolerance: ±5%
Rated Voltage: 200~3000VAC
Structure: Film Capacitor
Manufacturing Material: Polypropylene
Electrolyte: Electric Heating
Operating Temperature: 40/70/21 or 40/85/21
Class of Safety Production: P2/P1
Dielectric Dissipation Factor: Tgδ≤0.002 (50Hz~100Hz)
Class of Operation: Class B,Class C
Insulation Resistance: 3000s
Production Capacity: 500,000pcs/Month
MOQ:1pcs
Size: Available on Request (Customized Capacitor)
&Appearance and Application:
Terminals: Tinned Brass Nut or Screws
Capacitor Case: Plastic
Installation Type: Through Hole
Application: CBB15/CBB16 Capacitor applied to High Frequency Switching Power,High Frequency Welding Inverter,UPS,Electric Vehicle,Welding Machine,etc.
** *************Additional Info.*******************
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Packing: Export Stand Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
Export Market: Global
****************Product Description***********************
&Features:
1.Used in high-power high-frequency switching power supply of high-frequency pulse current absorption, filter
2.Low ESR, high ripple current and Large current shock handling capabilities
3.Low Ls, good high frequency characteristics
4. Self-healing property
5.Long lifetime
6.Plastic case, Filled with resin
& Applications:
1.Used in high frequency switching power supply filter, absorption, blocking, resonant circuit
2.Widely applied to EMI,Such as highfrequency welding inverter, UPS, electric vehicles, etc.
& Technical Specification:
| Capacitance(uf) | 3uF | 10uF | 20uF | 40uF | 50uF |
| Rated DC voltage Un (V) | 500VAC | 1400VDC | 1400VDC | 1250VDC | 350VDC |
| Max rms current Imax (A) | 45A | 18A | 35A | 40A | 35A |
| Capacitance Tolerance (J) | +/-5% | +/-5% | +/-5% | +/-5% | +/-5% |
| Dv/dt (V/us) | 800 | 20.0 | 20.0 | 20.0 | 20.0 |
| Self Inductance Rs (nH) | <10 | <10 | <10 | <10 | <10 |
| Ut-t (V) | 1800V,10S | 1800V,10S | 1800V,10S | 1250V,10S | 600V,10S |
| Ut-c (V) | 3000VAC,60S | 3000VAC,60S | 3000VAC,
60S | 3000VAC,
60S | 3000VAC,
60S |
| Size (mm) | dia50*60 | dia50*60 | dia50*60 | 74*46*49 | dia50*60 |
| tgδ(20C,10Khz) | <10x10-4 | <30x10-4 | <50x10-4 | <100x10-4 | <55x10-4 |
Ø Note:
1,Other capacitance and dimension serials can be specified in compliance with customer's request.
2,Terminal forms can be made in conformity to the requirements of agreements with customers.
