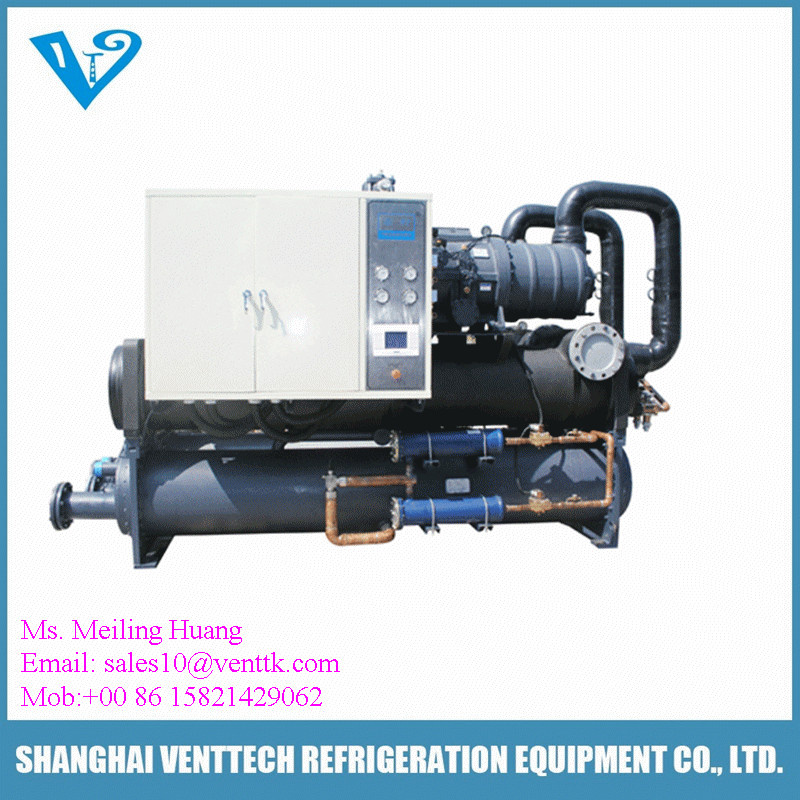

Capacity Industrial Integrated Evaporative Cooled Water Chiller
| Price: |
US $ 20000-25000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
150Z |
| Production Name: |
Water Chiller From Venttech |
| Cooling Capability: |
496kw |
| Model Number: |
150z |
| Power Supply: |
380V/3pH /50Hz |
| Sound Pressure Level(dB(a)): |
70 |
| Compressor Type: |
Semi- Hermetic, Twin Screw Compressor |
| Shipping Weight: |
3320kg |
| Refrigerant: |
R134A |
| Warranty: |
12 Months |
| Input Power: |
124kw |
| Type: |
Air-Cooled |
| Certification: |
SGS |
| Condition: |
New |
| Cooling Water: |
Chilled Water |
Product Description
Precision electric temperature controller /water Chiller Unit
Feature:1. 8 sizes available ranging from 380 kW to 1419 kW cooling capacity.2.Semi-hermetic screw compressor for all models. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.3.External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.4.Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.5.Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.6.Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.7.Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.8.Electric panel consist of: compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.9. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
Product description: | Model | | 380Z | 500Z | 600Z | 720Z | 880Z | 1000Z | 1200Z | 1420Z |
| cooling capacity | kW | 376 | 496 | 594 | 720 | 880 | 996 | 1203 | 1419 |
| cooling power input | kW | 124 | 159 | 187 | 234 | 285 | 318 | 381 | 466 |
| power supply 380V/3pH /50Hz |
| compressor |
| compressor type | Semi- hermetic, twin screw compressor |
| Qty/ refrigerant circuit | Nr. | 1/1 | 1/1 | 1/1 | 1/1 | 2/2 | 2/2 | 2/2 | 2/2 | | | | | | | |
| Energy adjustment | \ | 25%,50%,75%,100% 4-step ( 50%~100% stepless as option) | |
| Refrigerant | R134A |
| Water side heat exchanger |
| Type | Shell-and-tube heat-exchanger |
| Water Volume | m3/h | 65.4 | 86 | 103.2 | 123.8 | 151.4 | 172 | 206.4 | 244.2 | | | | | | | |
| Water pressure drop | kpa | 39 | 54 | 56 | 58 | 70 | 75 | 71 | 69 | | | | | | | |
| Inlet/outlet pipe diameter | mm | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | DN200 | DN200 | | | | | | | |
| Water side fouling factor | m2.ºC/kW | 0.086 | |
| Air side heat exchanger | | | | | | | | | | | | | | | | |
| Type | M shape Heat exchanger, High efficient exchanger tube + aluminum fins |
| Fans Quantity | Nr. | 6 | 8 | 10 | 10 | 14 | 16 | 16 | 20 | | | | | | | |
| Air Volume | m3/h | 23000X6 | 23000X8 | 23000X10 | 23000X10 | 23000X14 | 23000X16 | 23000X16 | 23000X20 | | | | | | | |
| Motor Input | kW | 2.8X6 | 2.8X8 | 2.8X10 | 2.8X10 | 2.8X14 | 2.8X16 | 2.8X16 | 2.8X20 | | | | | | | |
| Physical dimensions |
| Standard type (mm) | L | 3810 | 4680 | 5880 | 5880 | 8800 | 9460 | 9460 | 11700 | | | | | | | |
| W | 2280 | 2280 | 2280 | 2280 | 2280 | 2280 | 2280 | 2280 | | | | | | | |
| H | 2370 | 2370 | 2370 | 2370 | 2430 | 2430 | 2430 | 2430 | | | | | | | |
| Shipping weight | kg | 3320 | 4330 | 5000 | 5500 | 7750 | 8900 | 9100 | 11100 | | | | | | | |
| Shipping weight | kg | 3520 | 4530 | 5200 | 5700 | 8050 | 9200 | 9400 | 11400 | | | | | | | |
| Sound pressure level ** | dB(A) | 70 | 70 | 71 | 71 | 72 | 74 | 75 | 75 | | | | | | | |
Note:
1) Nominal cooling capacities are based on the following conditions:
Chilled water inlet/outlet temp: 12ºC/7ºC; Outdoor temp (DB/WB):35ºC/24ºC. |
Contact toMs. Meiling Huang Mob:+00 86 15821429062
We VENTTK:
Best quality and best price is what we pursued. Customer`s meet is what we cared.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
We have our own laboratories, professional equipment.
A variety of performance testing of product can be finished by ourselves.
We have complete quality testing system.
5 more years experienced team strictly control production process.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, welding machines and other area. We can only only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in +-1C and humidity in +-5%. It can be used in data center and telecom base station. Most parts are world famous brand.
We ensure brand quality and good reputation. Our company can provide high quality service, consistent service warm for the majority of customers.
