Wuxi Huishan Automatic Controller Co., Ltd. >> Capillary Thermostat with Spiral Immersion Sensor, Heimeier Style

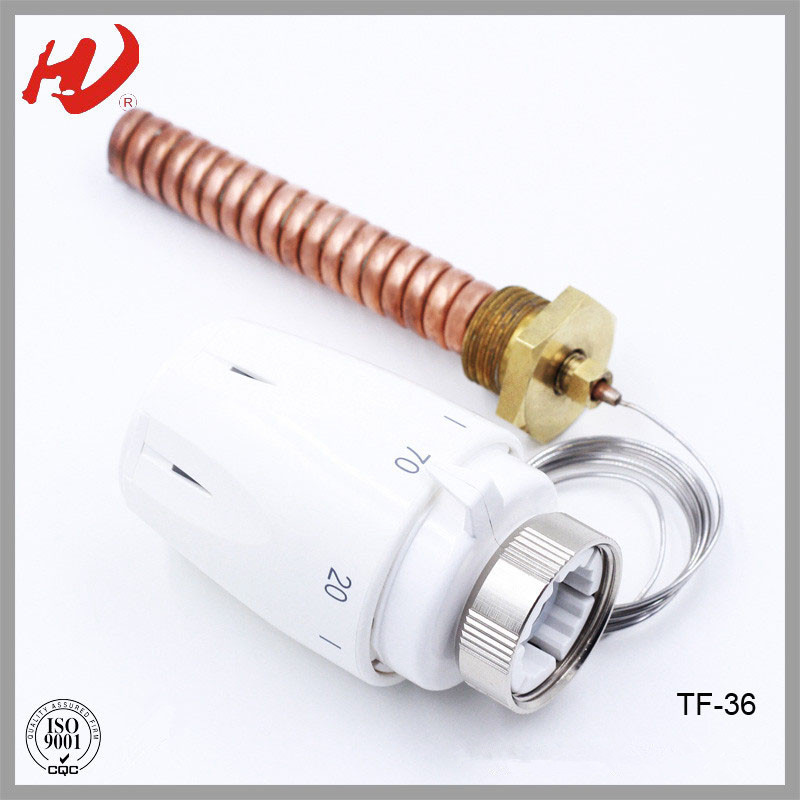

Capillary Thermostat with Spiral Immersion Sensor, Heimeier Style

Capillary Thermostat with Spiral Immersion Sensor, Heimeier Style
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: TF-36
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE
Type: Temperature Controller
Control Type: Mechanical
Material: Copper
Usage: Pipe ,Boiler
Display Type: Not Applicable

Product Description

Application :

Use for pipe or boiler for remote temperature control
Model TF-36
Color  white
Certification  CE if needed
Temperature range  20-70 degree C
Max.admissible static pressure  1.0MPa
Max.admissible differentital pressure  0.1MPa
Connection   M30X1.5
Capillary length   1000 mm
Bulb diameter  φ 14.75
Closing dimension  11.7 mm
Packing   50 pcs/CTN
 G.W.  14 KG
Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
