Capsule Disc Type Phase Control Thyristor SCR Kp

Name: Capsule Disc Type Phase Control Thyristor SCR Kp
Brand: all-electronics-online.com
SKU: 705290862
Availability: InStock
Rating: 4.9 (69 reviews)

Price:	US $ 10-10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Capsule Disc Type Phase Control Thyristor SCR KP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Furnace Spares Package:	Paper Box or Wood Box
Spare Parts Delivery Way:	Fast Courier

Product Description

1. Product Name:Thyristor, SCR, Induction furnace spare parts
Induction furnace spare parts, melting furnace spares, main board, MPU-6FK, thyristor, SCR, resistor, capacitor, reactor coil, furnace pot, induction coil, pulse transformer, meters, temperature tester, heat exchanger, water cooler

2. Model: For Induction Melting Furnace,Induction Heating, Induction Hardening, Induction Quenching furnace

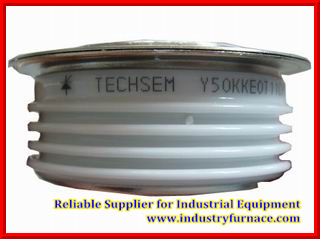

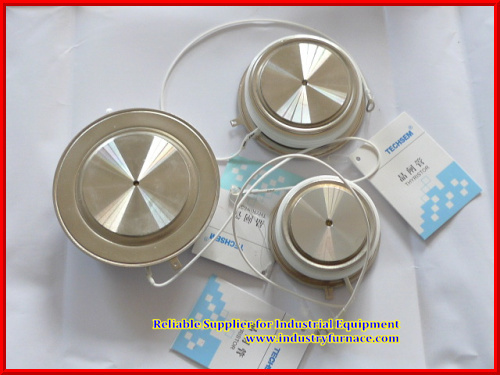

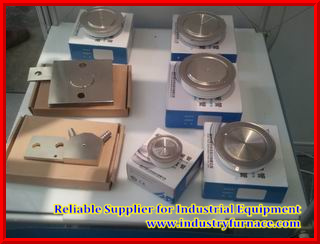

Phase Control Thyristors

Features	Typical Applications
1.Amplifying gates 2.International standard cases 3.Hermetic metal cases with ceramic insulators 4.Capsule packages for double sided cooling	1.High power industrial and power transmission 2.DC and AC motor control 3.Controlled rectifiers 4.Soft starters for induction motors 5.AC controllers

Type	VDRM/VRRM	IT(AV)		ITSM	IGT	VGT	VTM/ITM	VTO	rT	Rth(j-c)	Rth(c-hs)	Tjm	Mounting Force	Outline
Type		TC55°C	TC70°C	10 ms	25 °C		125 °C
	V	A		KA	mA	V	V/A	V	mΩ	°C/W	°C/W	°C	KN
Y24KPA	200-600	660	550	8	30-200	0.8-2.0	1.11/1000	0.75	0.36	0.080	0.020	125	3.3-5.5	outline
Y30KPA	200-600	1010	860	12	35-250	0.8-2.5	1.23/1500	0.73	0.33	0.045	0.010	125	5.3-10	outline
Y38KPA	200-600	1550	1300	18	35-300	0.8-2.5	1.04/2000	0.76	0.14	0.035	0.008	125	10-20	outline
Y50KPA	200-600	2450	2150	32	40-300	0.8-3.0	1.05/3000	0.75	0.10	0.020	0.005	125	19-26	outline
Y24KPC	400-1000	530	450	5	30-200	0.8-2.0	1.29/770	0.75	0.70	0.080	0.020	125	3.3-5.5	outline
Y30KPC	400-1000	1000	850	9	35-250	0.8-2.5	1.24/1550	0.70	0.35	0.045	0.010	125	5.3-10	outline
Y35KPC	400-1000	1080	920	11	35-250	0.8-2.5	1.40/1500	0.8	0.40	0.035	0.008	125	10-20	outline
Y38KPC	400-1000	1130	960	13	35-300	0.8-2.5	1.43/1800	0.80	0.35	0.035	0.008	125	10-20	outline
Y40KPC	400-1000	1350	1150	15	35-300	0.8-2.5	1.57/2400	0.85	0.30	0.028	0.0075	125	15-20	outline
Y45KPC	400-1000	1580	1340	20	40-300	0.8-3.0	1.63/3000	0.88	0.25	0.024	0.006	125	18-25	outline
Y50KPC	400-1000	2250	1900	30	40-300	0.8-3.0	1.25/2550	0.89	0.12	0.020	0.005	125	19-26	outline
Y60KPC	400-1000	2560	2160	33	40-300	0.8-3.0	1.43/4000	0.95	0.12	0.016	0.004	125	21-30	outline
Y70KPC	400-1000	3750	3170	38	40-300	0.8-3.0	1.22/5000	0.82	0.08	0.012	0.0035	125	30-40	outline
Y76KPC	400-1000	4370	3700	60	40-300	0.8-3.0	1.20/5000	0.85	0.07	0.010	0.003	125	35-47	outline
Y89KPC	400-1000	5770	4900	66	40-300	0.8-3.0	1.18/5000	0.88	0.06	0.007	0.002	125	63-84	outline
Y100KPC	400-1000	7500	6400	74	40-300	0.8-3.0	1.18/6000	0.85	0.055	0.005	0.0015	125	81-108	outline
Y24KPE	1100-1800	420	360	4.65	30-200	0.8-2.0	2.10/600	0.85	1.20	0.080	0.020	125	3.3-5.5	outline
Y30KPE	1100-1800	690	600	7.5	35-250	0.8-2.5	2.11/1550	0.88	0.80	0.040	0.010	125	5.3-10	outline
Y38KPE	1100-1800	1040	890	11	35-300	0.8-2.5	1.43/1700	0.85	0.42	0.035	0.008	125	10-20	outline
Y40KPE	1100-1800	1260	1070	12	40-300	0.8-3.0	1.75/2400	0.91	0.35	0.028	0.0075	125	15-20	outline
Y45KPE	1100-1800	1470	1250	13	40-300	0.8-3.0	1.80/3000	0.93	0.29	0.024	0.006	125	18-25	outline
Y50KPE	1100-1800	1800	1540	24	40-300	0.8-3.0	1.42/2550	0.91	0.23	0.020	0.005	125	19-26	outline
Y55KPE	1100-1800	2080	1760	26	40-300	0.8-3.0	1.49/3000	0.95	0.18	0.018	0.004	125	21-30	outline
Y60KPE	1100-1800	2360	2000	30	40-300	0.8-3.0	1.58/4000	0.98	0.15	0.016	0.004	125	21-30	outline
Y65KPE	1100-1800	2890	2460	35	40-300	0.8-3.0	1.32/3220	0.87	0.14	0.013	0.0035	125	27-34	outline
Y70KPE	1100-1800	3110	2670	38	40-300	0.8-3.0	1.50/5000	0.80	0.14	0.012	0.003	125	30-40	outline
Y76KPE	1100-1800	4040	3440	51	40-300	0.8-3.0	1.29/5000	0.84	0.09	0.010	0.003	125	35-47	outline
Y40KPH	1900-3000	870	750	10	40-3000	0.8-3.0	2.37/1500	1.20	0.78	0.028	0.0075	125	15-20	outline
Y50KPH	1900-3000	1460	1240	20	40-300	0.8-3.0	2.02/2550	1.11	0.36	0.020	0.005	125	19-26	outline
Y55KPH	1900-3000	1680	1430	18	40-300	0.8-3.0	1.78/3000	0.97	0.27	0.018	0.004	125	21-30	outline
Y60KPH	1900-3000	1950	1660	23.6	40-3000	0.8-3.0	1.83/3000	0.98	0.21	0.016	0.004	125	21-30	outline
Y70KPH	1900-3000	2440	2070	28	40-300	0.8-3.0	1.83/4000	1.07	0.19	0.012	0.0035	125	30-40	outline
Y76KPH	1900-3000	2960	2530	32	40-300	0.8-3.0	1.60/3000	1.05	0.18	0.010	0.003	125	35-47	outline
Y89KPH	1900-3000	4520	3860	44	40-300	0.8-3.0	1.54/5000	0.99	0.11	0.007	0.002	125	63-84	outline
Y100KPH	1900-3000	6160	5290	65	40-450	0.9-3.5	1.45/6000	0.91	0.09	0.005	0.0015	125	81-108	outline
Y38KPJ	3100-4200	590	510	7	35-300	0.8-2.5	2.83/1100	1.18	1.50	0.035	0.008	125	10-20	outline
Y50KPJ	3100-4200	1220	1050	13	40-300	0.8-3.0	2.18/1830	1.14	0.57	0.020	0.005	125	19-26	outline
Y65KPJ	3100-4200	1910	1640	20	40-300	0.8-3.0	2.30/3220	1.17	0.35	0.013	0.0035	125	27-34	outline
Y76KPJ	3100-4200	2460	2110	27	40-300	0.8-3.0	1.99/3000	1.15	0.28	0.010	0.003	125	35-47	outline
Y89KPJ	3100-4200	3750	3230	40	40-300	0.8-3.0	1.90/5000	1.0	0.18	0.007	0.002	125	63-84	outline
Y100KPJ	3100-4200	5560	4790	60	50-300	0.9-3.5	1.48/5000	0.88	0.12	0.005	0.0015	125	81-108	outline
Y38KPM	4300-5200	620	530	4.5	35-300	0.8-3.0	2.83/1200	1.45	1.15	0.035	0.008	125	10-20	outline
Y50KPM	4300-5200	1070	930	10	40-300	0.8-3.0	2.98/1830	1.04	0.84	0.020	0.005	125	19-26	outline
Y65KPM	4300-5200	1540	1330	17	40-300	0.8-3.0	2.46/2000	1.30	0.58	0.013	0.0035	125	24-34	outline
Y76KPM	4300-5200	2190	1880	24	40-300	0.8-3.0	2.35/3000	1.30	0.35	0.010	0.003	125	35-47	outline
Y89KPM	4300-5200	3290	2840	34	40-300	0.8-3.0	1.81/3000	1.09	0.24	0.007	0.002	125	63-84	outline
Y100KPM	4300-5200	4530	3650	45	40-300	0.8-3.0	1.64/3000	1.13	0.21	0.005	0.0015	125	81-108	outline
H38KPN	4500-5500	470	400	4.5	40-300	0.8-3.0	2.80/1000	1.08	1.92	0.045	0.008	125	10-20	outline
H38KPN	4500-5500	550	440	4.5	40-300	0.8-3.0	2.80/1000	1.08	1.92	0.035	0.008	125	10-20	outline
H50KPN	4500-5500	1010	850	12	40-300	0.8-3.0	1.90/1000	1.07	0.83	0.022	0.005	125	19-26	outline
H50KPN	4500-5500	1070	920	12	40-300	0.8-3.0	1.90/1000	1.07	0.83	0.020	0.005	125	19-26	outline
H76KPN	4500-5500	2170	1800	22	40-300	0.8-3.0	2.20/3000	1.01	0.36	0.011	0.003	125	35-47	outline
H76KPN	4500-5500	2300	1920	22	40-300	0.8-3.0	2.20/3000	1.01	0.36	0.010	0.003	125	35-47	outline
H89KPN	4500-5500	2820	2300	32	40-300	0.8-3.0	1.70/3000	1.03	0.25	0.009	0.002	125	63-84	outline
H100KPN	4500-5500	3990	3500	45	40-300	0.8-3.0	1.54/3000	1.02	0.21	0.0057	0.0015	125	81-108	outline
H125KPN	4500-5500	5800	5010	72	40-300	0.8-3.0	1.50/3000	1.02	0.14	0.004	0.001	125	110-140	outline
H38KPR	5600-6500	430	350	4.5	40-300	0.8-3.0	3.50/1000	1.25	2.20	0.045	0.008	125	10-20	outline
H38KPR	5600-6500	500	420	4.5	40-300	0.8-3.0	3.50/1000	1.25	2.20	0.035	0.008	125	10-20	outline
H50KPR	5600-6500	900	720	11.8	40-300	0.8-3.0	2.40/1000	1.25	1.03	0.022	0.005	125	19-26	outline
H50KPR	560-6500	950	830	11.8	40-300	0.8-3.0	2.40/1000	1.25	1.03	0.020	0.005	125	19-26	outline
H65KPR	5600-6500	1390	1000	18	40-300	0.8-3.0	2.35/1500	1.21	0.70	0.014	0.0035	125	27-34	outline
H65KPR	5600-6500	1450	1150	18	40-300	0.8-3.0	2.35/1500	121	0.70	0.013	0.0035	125	27-34	outline
H76KPR	5600-6500	1680	1370	22	40-300	0.8-3.0	2.12/1500	1.20	0.628	0.011	0.003	125	35-47	outline
H76KPR	5600-6500	1770	1500	22	40-300	0.8-3.0	2.12/1500	1.20	0.628	0.010	0.003	125	35-47	outline
H89KPR	5600-6500	2220	1800	32	40-300	0.8-3.0	1.90/1600	1.22	0.42	0.009	0.002	125	63-84	outline
H100KPR	5600-6500	3530	2800	45	40-300	0.8-3.0	2.0/3000	1.14	0.27	0.0057	0.0015	125	81-108	outline
H125KPR	5600-6500	5240	4200	71	40-300	0.8-3.0	1.73/3000	1.15	0.17	0.004	0.001	125	110-140	outline
H38KPS	6600-7200	380	320	4.0	40-300	0.8-3.0	2.90/500	1.13	3.10	0.045	0.008	125	10-20	outline
H50KPS	6600-7200	810	650	6.4	40-300	0.8-3.0	2.90/1000	1.28	1.32	0.022	0.005	125	19-26	outline

3. Usage: Used for GW Induction furnace

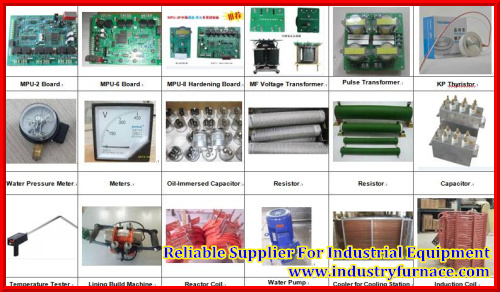

4. Spare parts list photo:

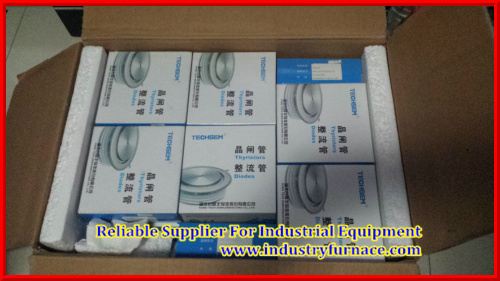

6. Package: Plastic film protection and paper box or wood box.

7. Delivery: By fast courier, EMS, TNT, DHL, ARAMEX, OR BY SEA
