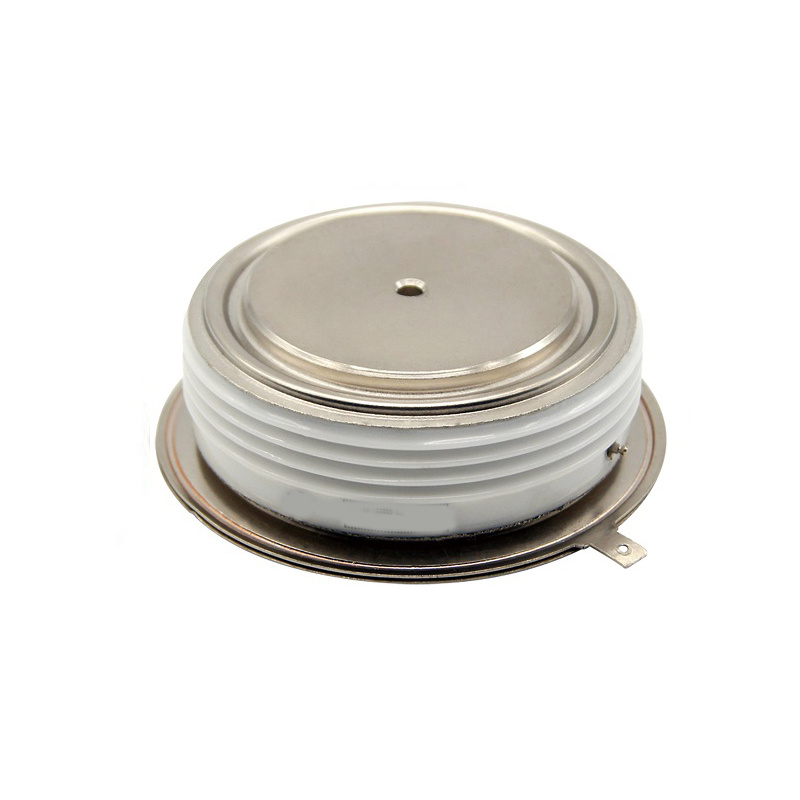

Capsule Version Avalanche Diode Zk200-1000A

Name: Capsule Version Avalanche Diode Zk200-1000A
Brand: all-electronics-online.com
SKU: 835855455
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZK200-1000A
Current:	200A-1000A
Voltage:	100-5000
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD
Brand:	Deson

Product Description

Rectifier diode is a kind of device changing AC to DC and has anode and cathode two sides, widely applicable in fields of high power drive, high power rectifiers, non-conotrollable and half-controllable rectifiers. The disc type rectifier diode is characterized by high mean current, low forward voltage drop and double-side cooling, matching with various air-cooling or water-cooling radiators. At present, the high power diode is up to 10000A and voltage can reach 8500V. The stud type, is a kind of device changing AC to DC and has anode and cathode two sides, widely applicable in fields of battery chargers, converters, power supplies, welding machines & motor controls etc. The stud type rectifier diodes are mainly improved from I.R & Semikron and apart from them, the Russian-style diodes, avalanche diodes are developed successfully,too. The metal stud structure and ceramic-metal stud structure both are available and characterized by high surge current capability. Its current is up to 500A.

Type	VRRM	IF(AV) THS 55ºC	IRRM	VFM/IFM 25ºC	RTH(j-hs)	Tjm	M²	Outline
	V	A	mA	V/A	ºC/W	ºC	KN
ZB200A	100-5000	200	16	1.8/600	0.090	150	3.3-5.5	A-2,8,12,15
ZB300A	100-5000	300	30	1.8/900	0.065	150	5.3-10	A-3,9,16
ZB400A	100-5000	400	40	1.8/1200	0.040	150	10-20	A-4,10,13,17,18
ZB500A	100-5000	500	40	1.8/1500	0.040	150	10-20	A-4,10,13,17,18

Type	VRRM	IF(AV) THS 55ºC	trr 100ºC	Qrr	IFSM 10ms	IRRM	VFM/IFM 25ºC	RTH(j-hs)	Tjm	M²	Outline
	V	A	μS	μC	KA	mA	V/A	ºC/W	ºC	KN
ZK200A	100-5000	200	2	70	2.7	16	2.2/600	0.090	150	3.3-5.5	A-2,8,12,15
ZK300A	100-5000	300	3	100	4.1	30	2.4/900	0.065	150	5.3-10	A-3,9,16
ZK400A	100-5000	400	3	100	5.4	40	2.4/1200	0.040	150	10-20	A-4,10,13,17,18
ZK500A	100-5000	500	3	120	8	40	2.4/1800	0.033	150	10-20	A-4,10,13,17,18
ZK800A	100-5000	800	3	130	10	40	2.6/2400	0.033	150	10-20	A-5,19
ZK1000A	100-5000	1000	4	150	13	50	2.6/3000	0.030	150	15-20	A-6,11,14,20

Note:
IGT,VGT,IH are test values under 25ºC . Unless otherwise specified,other parameters in the parameter table are test values under Tjm.
I²t=I²TSM×tw/2:tw=bottom width of half-sinusoid current. Under 50Hz,I²t=0.00512TSM(A²S)
When working under the current of 60 Hz:ITSM(8.3ms)=ITSM(10M=ms)×1.066,Tj=Tjm I²t(8.3ms)=I²t(10ms)×0.943,Tj=Tjm
Gate lead: white or colorless,cathode lead (if necessary): red

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
