| Prod Model: |
LLT-BENZ-VER2.2.1 |
| Device Type: |
Video Interface |
| Suitable Model: |
Mercedes Benz |
| Main Function: |
Android Navigation |
| Android Version: |
4.4 / 5.1 Compatible |
| CPU: |
Quad Core 1.6 GHz |
| RAM: |
1 / 2 GB |
| Storage: |
8 / 16GB |
| Video Support: |
HD 1080P |
| WiFi Bluetooth: |
Yes |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
Suit for Origin Car Screen |
| Model: |
Llt-Benz-Ver2.2.1 |
| Brand: |
Lsailt |
| Certification: |
Ce, SGS |
Product Description
Car Android Navigation System Video Interface box For MERCEDES BENZ C CLA CLK B A E GLC NTG 5.0
Upgrade Touch Navigation WIFI BT MirrorLink HD 1080P Google MAP Play Store Voice Control
Brand: Lsailt Model: LLT-BENZ-VER2.2.1
Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;
Suitable car model:2015-2016BENZ -C,CLA,CLK,B,A,E,GLC (Car NTG5.0 System)
Upgrading Function:Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TMPS etc.
Android's features:- Android 5.1 & 4.4 system, Quad core 1.6GHz A9 chip, faster running speed.
- Compatible all Android app include YouTube, Waze, Real-time & offline navigation etc.
- Car origin rear view & front view is compatible, DVR, 360 panorama, TV box, TPMS optional.
- Connection include Wi-Fi Bluetooth USB.
- Could be switch to origin system with just one click on dashboard and steering wheel.
- Simple plug & play installation.
Custom Properties
| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| Front View | Support | 360 | Optional |
| CPU | 1.6GHZ | RAM | 1GB/2GB |
| Flash | 8GB and 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android 4.4 5.1 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
| BT | Support | MirrorLink | Support |
What is the upgrading function of the original car screens?
It follows that the owner can realize navigation, visual trajectory reversing, DVD player, TV news, 360 panoramic, and automobile data recorder through interface box and use LCD (BYOD).Then we integrate these functions into a car which will realize touch handwriting navigation, remote control, mini system operation. After that, the original system is not changed and the system which is installed will not damage and interfere in the original car.
Suitable car model
Suitable for an original car with LCD true color display (BYOD). Due to the different model, the upgrading system is not also the same. Lsailt can perfectly and flexibly realize you car's upgrading function (navigation, BT, visual trajectory reversing HD playback, DVD player, mobile Internet app etc.)
Features of Android system
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.
Memory capacity:1G DDRIII,2G DDRIII optional.
Flash memory:8G EMMC Flash, maximum 64G.
OS:Android 4.4.4.
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
Applications
1.Vehicle:Original car with screen models;
4.Suitable for car Brand: 2015-2016 MERCEDES BENZ C,CLA,CLK,B,A,E,GLC (Car NTG 5.0 System)
3.Sales channels:Super auto supplies supermarket,car audio modification store,automobile service factory,standard 4S shop;
4.Suitable type:Original car with screen,support for touch control,HD display models.
Please add me on whatsapp(+86-136 9976 5242 Cosmo) for directly contact!

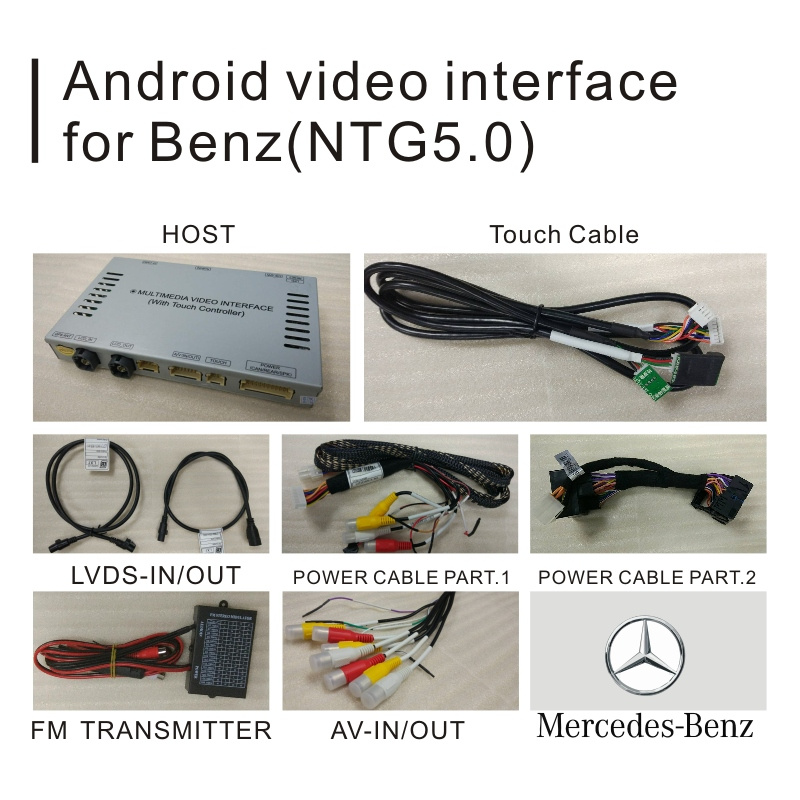

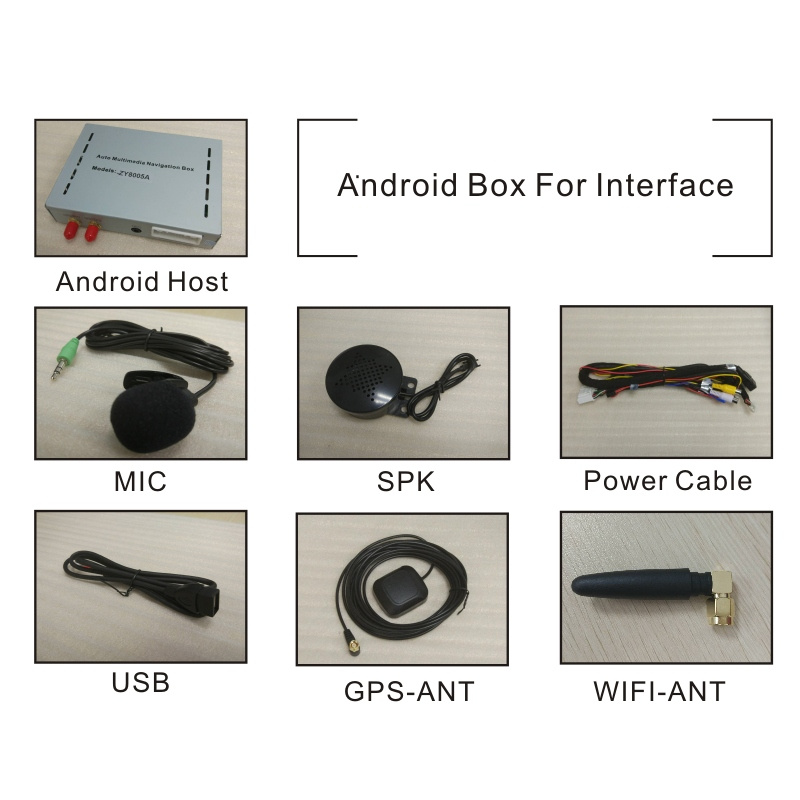

| Product Accessories |
| Interface box | 1(standard configuration) |
| Android box | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 2(standard configuration) |
| GPS-ANT | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| WIFI ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Interface Parameter |
| Model | LLT-BENZ-VER2.2.1 |
| Brand | (Lsailt) |
| Car Screen Size | 7.1 " |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(The Board) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
| Rear View | Track Reversing and Video |
| Customization | Negotiated |
| General Parameters Andrews |
| CPU | 1.6G Hz |
| Model | Cortex A9 Four dual-core processor,car rule PX3 |
| RAM | DDR3 1GB/2GB |
| Flash | Inand standard equipped,8GB or 16GB |
| Navigation Storage | TF card |
| OS | Android 4.2/4.4 |
| HVGA | 800X480 |
| WIFI | Support |
| BT | support BT4.0 |
| MirrorLink | Android and OS The android support touch |
| Operating Voltage | DC(9-15)V |
| Operating Current | Normal 400 mA@12V |
| Operating Temperature | -20°C-+70°C |
| Storage Temperature | -30°C-+80°C |
| Audio Output | Left and right channels,stereo,distribute the signal and analog output |
| Function Parameters Andrews |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don't support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. |
| Internet |
| WIFI | After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet
Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard |
| Support surf the Internet through 3G USB dongle or 3G mobile share next work |
| MAP (GPS Navigation) |
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC |
| Map Upgrading | Through TF card |
| Support 3D live navigation,(Need navigation software to support) |
| Support navigation sound mixing/sound sent back |
| Support real-time traffic(Need navigation software to support,internet) |
| Support multiple navigation software |
| File Manager |
| Functions | Support to copy, move files between different storage medium and different folders |
| Support to delete files |
| Task Manager |
| Functions | Support the task list of activities |
| Support to switch the activities task |
| Support to close the activities task |
| System with Google | The browser,calculator,calendar and send E-mail,Google store |
| Software Upgrading | TF or U flash disk |
| Voice Recognition | Support |
| System Language | Multi language |
| | | |
Specifications of System
| CPU | BCM4752 |
| Frequency | 1575.42± 1 .023 MHz |
| Number of channels | 66 channel |
| Tracking sensitivity | -1 61dBm |
| Positioning accuracy | 3.0m CEP |
| Rate | 0.1 m/s |
| Data update rate | 1HZ |
| Re-capture time | <1S |
| Hot start time | 1S |
| Warm start time | 32S |
| Cold start time | 35S |
| Maximum positioning height | 18000m |
| Maximum rate | 515m/s |
| GPS Antenna | Active ceramic antenna |
| Antenna gain | 27dB |
| Antenna noise factor | <2dB |
| VSWR | 1 .5 |
| Antenna voltage | 3V± 5% |
| Antenna current | 1 5mA |
The maximum rated operating parameters table
| Operating voltage | 9-12V |
| Operating current | 300mA |
| Maximum power consumption | 2.5W |
| Shutdown current | 1 mA |
| Off Power | 30mW |
| Operating ambient temperature | -10 ºC -- +80 ºC |
| Storage temperature | -50 ºC -- +90 ºC |
wireless specifications
| Protocol standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.n |
| Frequency Range | 2.400~2.4835GHz |
| Channels | 1~11(the US,Canada),1~13(China,Europe),1~14(Japan) |
| Modulation mode | 802.11b:DSSS (CCK, DQPSK, DBPSK)
802.11g/n:OFDM (BPSK, QPSK, 16QAM, 64QAM) |
| Speed of wireless | 802.11b 11, 5.5,2, 1Mbps
802.11g 54, 48, 36, 24, 18, 12, 9, 6Mbps
802.11n |
| Transmit power | 802.11b 11Mbps:15±1.5dBm
802.11g 54Mbps:13 ±1.5dBm
802.11n 135Mbps:13 ±1.5dBm |
| Sensitivity | 270M: -74dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -73dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -95dBm@8% PER |
| Working mode | Peer to pee(Ad-Hoc)or Centralized control type(Infrastructure) |
| Operating voltage | DC 3.3V ±0.2V |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission distance | indoor 100 M,outdoor 300 M(depend on surroundings) |
| system | WINXP/VISTA/LINUX/WINCE/WIN7 |
| Operating temperature | 0°C- 40°C |
| Operating Humidity | 10% -90% RH condensing |
| Storage temperature | -40ºC-70ºC; |
| Storage humidity | 5%-90% RH Non-condensing. |
Quality warranty policy:3 month free replacement and 1 year free maintenance.Deliver 1 or 2 days after payment received.
