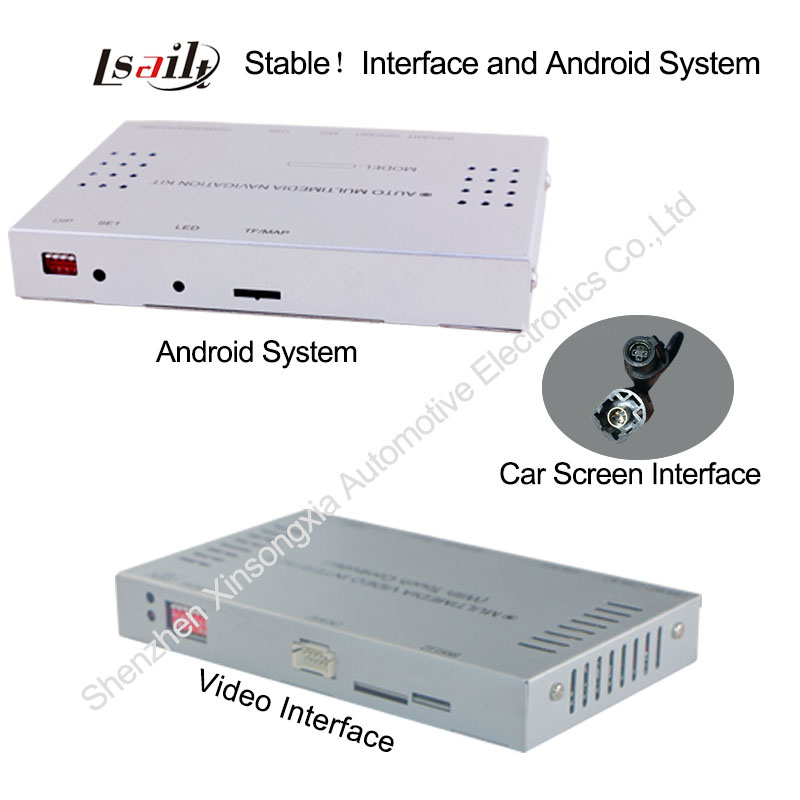

Car Android Navigation Video Interface for Volkswagen with Touch Navigation, WiFi, HD 1080P, Google Map, Play Store, Voice
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
LLT-W-VER1.1.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Definition: |
Original Car Screen(800*480) |
| Navigation: |
800(GHz), 256(Storage), 800*400(HD Dispaly). |
| Map: |
Google Map/Igo |
| Working Voltage: |
9-12V |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
7" |
| Brand: |
Lsailt |
Product Description
Car Android Navigation Video Interface for Volkswagen with Touch Navigation,WIFI,HD 1080P,Google MAP, Play Store,Voice
| Origin | Shenzhen | Trademark | Lsailt |
| Product Model | LLT-W-VER1.1.1 | Standard | CCC,CE |
| Type | Android Navigator Interface | Use | Automotive |
Trade Terms| Min. Order | 1Set | Unit Price | Negotiation |
| Trade Terms | FOB | Payment Terms | T/T or Western Union, PayPal |
| Supply Ability | 1,000pcs/month | Delivery Time | 7 working days after received your payment |
| Packaging Details | Standard Export Carton | HTTP | www.lsailt.com,www.carnavigationbox.com |
| SIZE | 155*90*20 (MM)x2 | GR. WT | 2KG/SET |
Custom Properties| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| CPU | 1.2GHZ/1.4GHZ | RAM | 1GB |
| Flash | 8GB and 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android4.2.2/4.4.1 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
Product Description 1.Apply to: 2015 Volkswagen Passat, NMC(Lamando),Golf 7,Skoda;2.Supports external video input,full touch DVD,Android system;3.Multiple Switching ways:long press screen,double sliding,party control,etc;4.Full-digital circuit, LVDS signal processing, achieve high-definition images;5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;7.It's convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;8.Optional external RGB (800 x480) input,Andrews system connection,HD display;9.UI of the original car UI,matching the original car style,integrated the original car system;10.Full pull-in installation,realize nondestructive installation; Applications1.Vehicle:Original car with screen models;2.Suitable for car Brand: 2015 Volkswagen Passat, NMC(Lamando),Golf 7,Skoda;3.Sales channels:Super auto supplies supermarket,car audio modification store,automobile service factory,standard 4S shop;4.Suitable type:Original car with screen,support for touch control,HD display models. Competitive advantages1.Convenient installation,all on the plug;DO not destroy the original vehicle lines,simple operation;2.Random installation,without secondary installation;3.Simple functions,strong stability,more useful;4.Convenient to upgrading map;5. Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.6.Why not produce all-in-one machine ? Because Android system heat badly.
To prevent against crashes,break down,we produce split to work more better and stable. | Product Accessories |
| Host Interface | 1(standard configuration) |
| Host Android | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 1(standard configuration) |
| ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| Specifications |
| Model | LLT-W-VER1.1.1 |
| Brand | (Lsailt) |
| Car Screen Size | 5.8 "and 7 " |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(MiNi 4PIN) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
| Rear View | Track Reversing and Video |
| Customization | Negotiated |
| General Parameters Andrews |
| CPU | 1.2G~1.6G Hz |
| Model | Cortex A9 dual-core processor,car rule MST786 |
| RAM | DDR3 1GB |
| Flash | Inand standard equipped,8GB or 16GB |
| Navigation Storage | TF card |
| OS | Android 4.2/4.4 |
| HVGA | 800X480 |
| WIFI | Support |
| Operating Voltage | DC(9-15)V |
| Operating Current | Normal 400 mA@12V |
| Operating Temperature | -20°C-+70°C |
| Storage Temperature | -30°C-+80°C |
| Audio Output | Left and right channels,stereo,distribute the signal and analog output |
| Function Parameters Andrews |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don't support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. |
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The
Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.
Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.
We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd sticks to the Traditional spirits "Create Classic attentively" and Enterprise culture "Creative, Flexible, Team, and Mutual Benefits" which consistently Challenge Himself, The Best of the Best as Conducts to Create more wonderful products to satisfy Driver for Car audio system entertainment
Our products are not only providing Inland 4S Shop, but only the supplier of South America, Middle East, Europe, and America at abroad. Company owed Sales network through the country and Contact the strategy Cooperation relationships with more than 10 Car sales CO.
Develop and Grow is common goal of members. Bellwether of Supplier of OEM Car audio upgrading kit is our Grand mission to the world.
Company Culture
Mutual respect
Honest
Aggressive
Realization of Mutual Benefits
Custom First
Efficiency and Original
Improve competition of market
The Value of Industry
1. Brain value is higher than the material value
2. Mutual value is higher than the personnel value
3. User value is higher than the production value
Enterprise Tenet
Value for customer; Development for staff; Opportunity for society; Benefits for industry.
Enterprise Spirit
Honest
Aggressive
Dedicated
Original
Cooperation
Enterprise Relation
Love country
Love company
Love staff
Love family
Enterprise Brand
Lsailt: Involved in the original car upgrade decode navigation screen, change the screen machine, Internet communications, and Android navigator box, the original car screen upgrade scheme.
