| Prod Model: |
303F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Size: |
8.9×5.0×1.6cm |
| Network: |
GSM/GPRS |
| Back Up Battery: |
Chargeable 3.7V 500mAh Polymer Li-Battery |
| Arm Alarms: |
Acc, Shock Sensor(Motion Sensor |
| Dual Tracking: |
GSM Lbs(Location Based Service) |
| Alarm Function: |
Low Battery, Sos, Genfence, Acc Working, Fuel etc |
| Car Security: |
Cut off The Oil and Power System, Acc Working Alar |
| Compact Size Easy To Install: |
Internal GPS&GSM Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Baanool GPS303 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool |
| Certification: |
Ios9001 |
Product Description
Car GPS navigation waterproof gps tracker with sim card 303FProduct Description: Working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety. This product can locate and monitor any remote targets by SMS or internet.
Applications: Used for vehicle and other moving objects tracking.
Features and Functions: -Change Password
-Authorization
-Single Locating
-Auto track continuously
-Automatic update positions of vehicle turns
-GPS drift suppression
-Absolute street address by SMS
-Location based service (LBS)
-Voice Monitor -Data logging
-Data Load
-Forward the third parties' message
-Charges Inquiry
-Alarm Function
-Low battery alarm
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-Arm
-Silent Mode
-DISARM
-Alarms under Arm State
-Shock Sensor alarm
-Check the Vehicle State
-Reset Hardware
-Sleep Mode
-Sleep by time
-Sleep by shock sensor
-No sleep mode
-Check IMEI
-Set up Terminal (local) Time
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting
-Setting up APN
-GPRS User ID and password Setup
-IP and port setup
-Less GPRS traffic
-Modes Switch between "SMS" and "GPRS"
-Set up monitor center number
Specifications:
Content |
Specification |

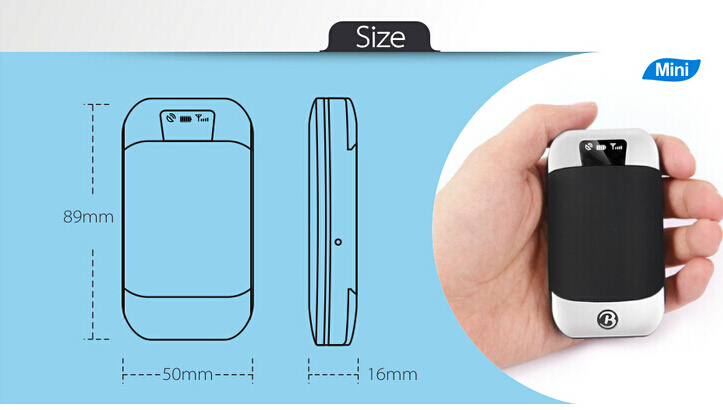

DIM |
9.6×5.3×1.6cm |
Weight |
70g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
GPS start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Car power supply |
12 V -24V |
Back up battery |
Chargeable 3.7V 700mAh Li-ion battery |
Storage Temp |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |

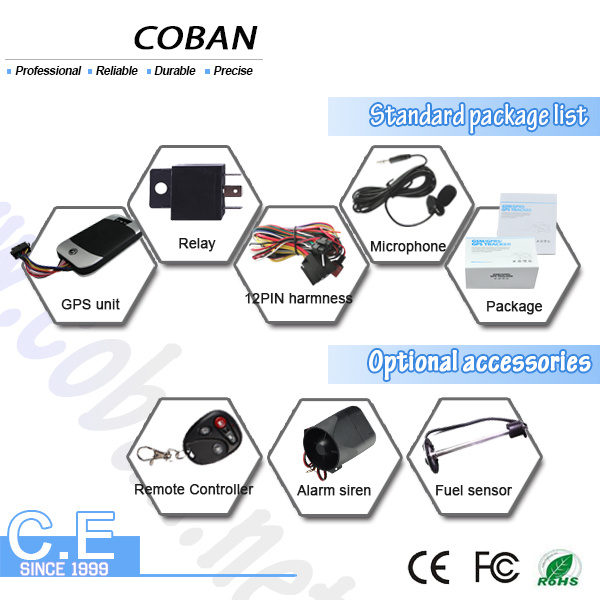

Packaging Detail:
GPS unit
12PIN harness
Microphone
Relay
Screwer
CD
Manual
Giftbox
Optional
MicroSD
Alarm sire(big or small both ok)
Fuel sensor

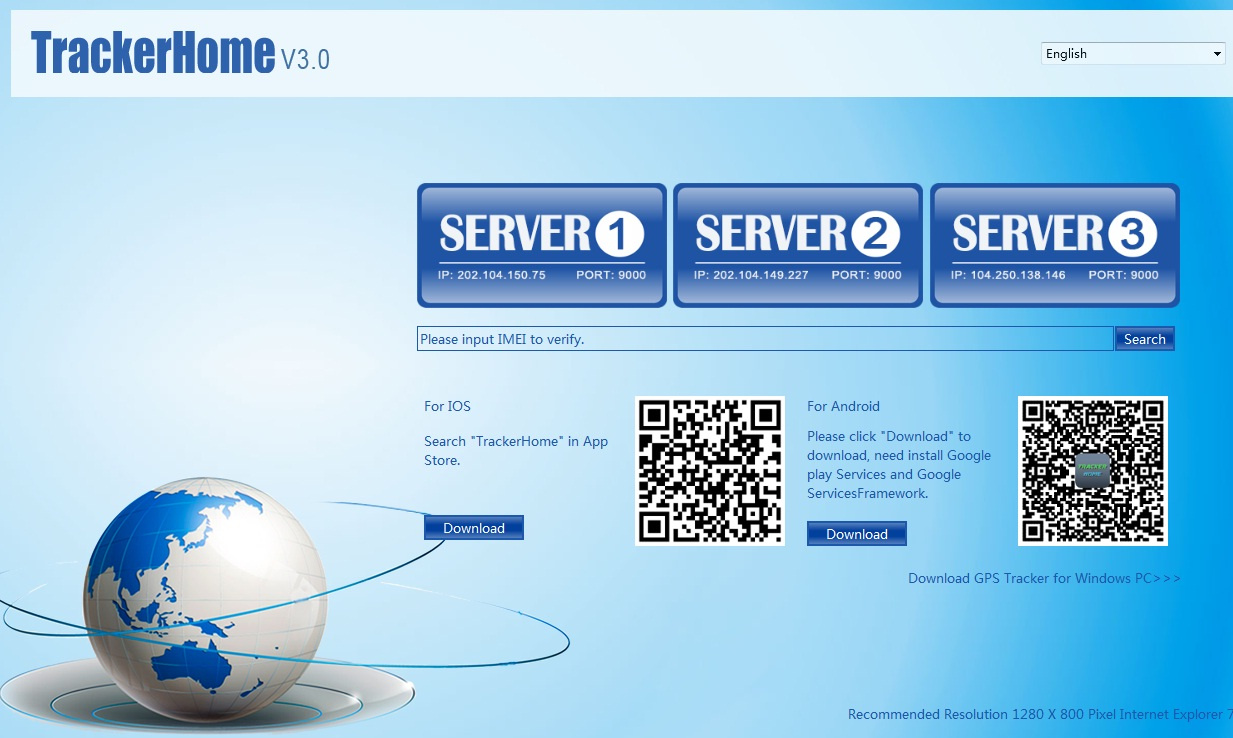

Live Tracking
web platform--www.gpstrackerxy.com
Androis and IOS mobile app
