| Prod Model: |
Car GPS Tk103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
83mm*54mm*26mm, 120g in Weight |
| Network: |
GSM/GPRS |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Cut Engine: |
Supported |
| GPRS Configuration: |
by SMS or USB Cables |
| Microphone: |
Included, for Voice Monitor |
| Alerts: |
Door Open, Shock, Acc, Sos, Geofence |
| Mobile APP: |
Free, Name "Trackerhome " |
| Micro SD Card Slot: |
Supported |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
Tracking Vehicle by Phone |
| Port Number: |
20 Channels |
| Model: |
GPS Tk103A Tracker |
| Brand: |
Coban |
| Chip: |
CB900 |
| Certification: |
Is9001 |
Product Description

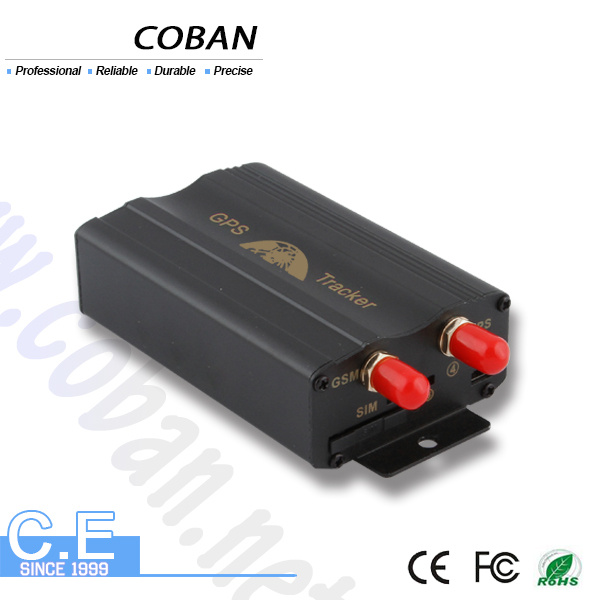

Model : Gps tracker TK103a , TK103B
5 tracking solutions:
SMS tracking by calling, return google map link
Absolute street address by sms
Free software
Free IOS/Android app
Optional web server
Main features :
Main functions :
1. GPS + LBS double solution,exact street address
2. Auto track continuously
Track by time
Track by distrance
3.Turning points update automatically
4.GPS drift suppression
5. auto logging : in case of no gsm coverage , tracker will store all tracking data & alarm data in sd card .
when gsm coverange is resumed , it will send data automatically to authorized phone or server .
6.Alarms
ACC working alarm
Power off alarm
shock alarm
Door open alarm
Fuel theft alarm
Low battery alarm
GPS blind Spot alert
SOS
Geo-fence
Overspeed alert
Movement alert
Multi-area management
Built in Acceleration Sensor Alarm
7.Sleep Mode : Sleep by time , sleep by shock
8. Real time tracking via SMS or GPRS (TCP/UDP)
9.Track on demand by calling or sms comamnd
10. Live http google map link in message
11.Five authorized phone numbers
12. Voice monitor
13.Easy switch for track or Monitor
newly-added functions :
1. Built-in shock sensor
2. sleep mode to save power
3. less gprs mode to save gprs
4. auto logging : in case of no gsm coverage , tracker will store all tracking data & alarm data in sd card .
when gsm coverange is resumed , it will send data automatically to authorized phone or server .
5. support fuel sensor
What is in the package :
1 x GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 x Harness
1 X Relay(12V)
1 X Manual
Optional accessories ; shake sensor , siren , remote controller, fuel sensor
Specifications :
*Dimension: 83mm*54mm*26mm, 120g in weight
*Network:GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900Mhz
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
1.
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V 350mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
