| Prod Model: |
303F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Two Modes: |
Tracker, Monitor |
| Apllication: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| OEM Or Not: |
Yes |
| SD Card Slot And Camera: |
Yes |
| Packaging: |
40 Unit /Carton Standard Color Box |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Warrenty: |
1 Year |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
303f |
| Screen Size: |
No Screen |
| Brand: |
Coban |
Product Description
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Built-in GSM, GPS antenna, Waterproof ,compact, elegant appearance.
* Support GPS and LBS (Location based service) double tracking solutions.
* Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
* Support configure the settings remotely
* Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
3. Main Function discription
1.For all models vehicles(12-24v)
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State: ACC/Shock alarms
8.Remotey shutdown engine .
9.Support MiroSD
10.Built-in memory for 16,000 positions
11.Built-in 500 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Content | Specification |
| DIM | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 700mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Five ways to track:
FIVE tracking solutions:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Free PC based tracking application (send you in CD package)
4. Optional web server
5. Free mobile tracking app for android/IOS phones

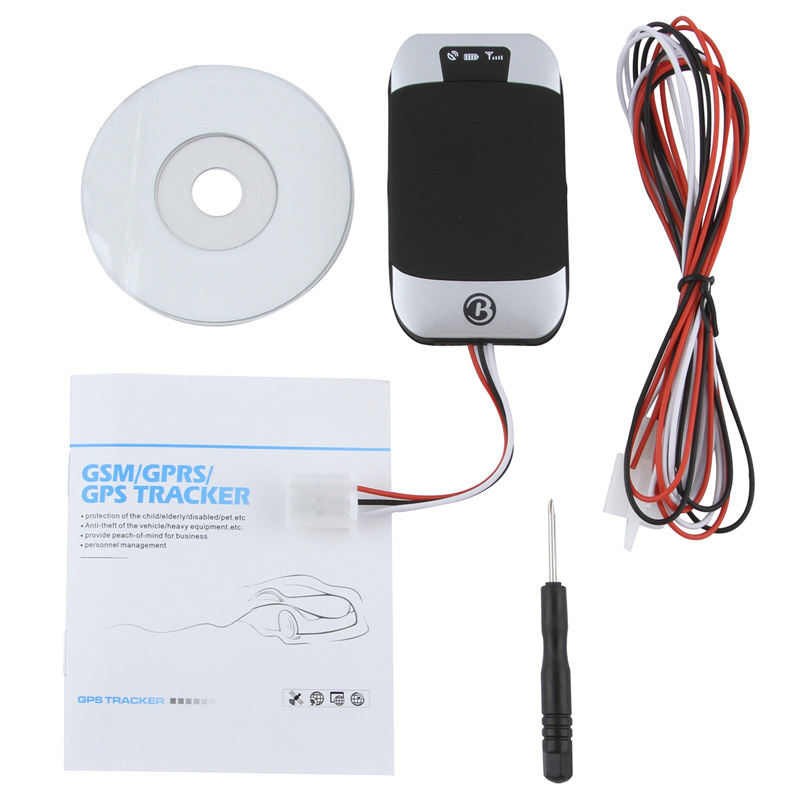

Pakage contents:
GPS unit
12PIN harness
Microphone
Relay
Screwer
CD
Manual
Giftbox
Optional
MicroSD
Alarm sire(big or small both ok)
Fuel sensor
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
