| Prod Model: |
RFID GPS tracker GPS105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, RoHS |
| Warranty Time: |
1 Year |
| Network: |
GSM/GPRS |
| GSM Network: |
850/900/1800/1900MHz |
| Channel: |
Parallel 20 Channels |
| Optional: |
Fuel Sensor, Camera, Shock Sensor, Siren |
| High Sensitivity: |
External GPS GSM Antennas |
| GPS Accuracy: |
5m |
| Speed Limiter: |
Governor Mode |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Car GPS Tracker GPS105 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

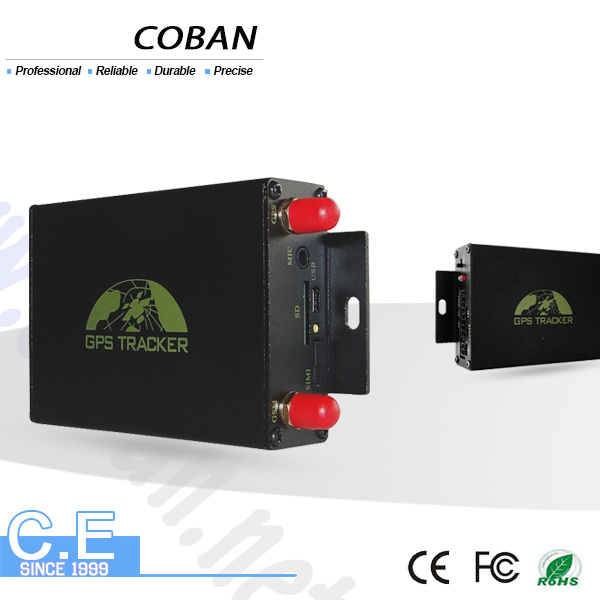

Car GPS Tracker with Dual SIM Card support camera and RFID (GPS105)
Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by multi tracking ways
Basic functions:
1. Tracking by GPS and location base service both even in building, underground and garage
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, SOS button ,Low battery alarm, Geo fence,Overspeed Alarm , Power off alarm
10 Engine -cut and restore alarm by SMS GPRS
11, Door, windows alarm get by SMS
12, Movement alert sensor
13, RFID
14. With direction and heading value
15. Optional vibration sensor and fuel sensor
16. Optional camera
17 Support SD card function
18.speed limiter (Governor mode
When speed approach max speed, siren beeps 5 times to warn the driver; when speed reaches or exceed the max speed, relay will be activated to limit the speed.
19.IOS Android APP tracking
20.GPRS Web platform tracking
Applying directions:
*Vehicle fleet/logistics/vehicle rental (12 to 24V)
Specifications
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
