| Prod Model: |
VT310N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size (mm): |
117*85*26 |
| Weight (G): |
180 |
| Input Voltage (V DC): |
9 ~ 36 |
| Backup Battery (mAh): |
850 |
| GPS Module: |
Sirf3 |
| GSM Module: |
M35 |
| Data Logger: |
4MB |
| Inputs: |
5 |
| Outputs: |
5 |
| Analog Inputs: |
2 |
Product Description

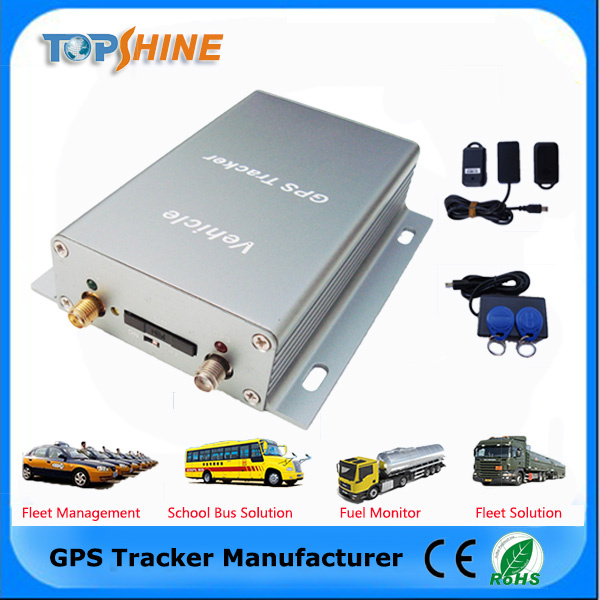

Car GPS Tracker for Fuel Monitoring Free GPS Tracking PlatformProduct OverviewVT310N is a professional level GPS vehicle tracker focus on positioning and vehicle security. VT310N can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, with build-in motion sensor for power saving, with build-in memory to store GPS position info when no GPS signal and resend automatically when GPS signal recover. It has abundant ports for additional applications and tracking solutions especially suitable for fleet management.
Application
* Vehicle Real Time Tracking
* Car Security/Anti-Hijack
* Comprehensive fleet management
Specifications
| Items | Specifications |
| Dimension | 117*85*26mm |
| Weight | 185g |
| Charging Voltage | 9V~24V |
| SIM card type | 3V |
| Power consumption | Active mode(peak) < 1.0A
Active mode(avg.) < 300mA |
| Operating Temperature | -20ºC~+ 75ºC |
| Humidity | Up to 75% non-condensing |
| External Antenna | Connected via 50 coax connector |
| External SIM Card | Connected via SIM card connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Optional |
| Transmit Power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPS Chip | Latest GPS SIRF-Star III chipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| Speech Codec | Triple rate Codec
Half rate-ETS 06.20
Full rate-ETS 06.10
Enhance full rate-ETS 06.50/06.06/06.08 |

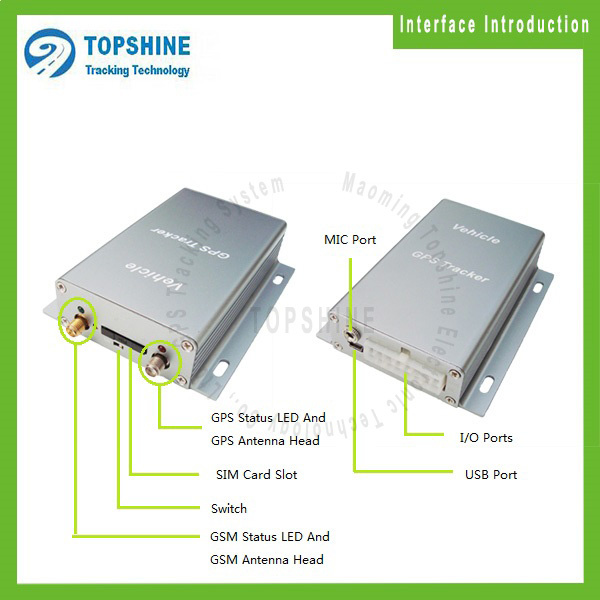

| I/O | 5 Digital Input ( 2 positive triggering and 3 negative triggering)
2 Analog Input Detection
5 Output
1 USB port |
Functions & Features:
1. Tracking via SMS or GPRS (TCP/UDP)
2. Current location report
3. Get actual address name via SMS or website
4. Get position GoogleMap link via SMS
5. Tracking by distance or time interval
6. Data logger function with 4MB memory.
7. Built-in motion sensor for power saving
8. SOS panic button
9. Geo-fencing control
10. Internal backup battery
11. Over-Speed alert
12. Suddenly acceleration/brake alert
13. Engine cut-off to stop the car in safe condition
14. Monitoring voice(optional)
15. Alert when VT310N enters/exits GPS blind area
16. Alert when VT310N is power failure
17. I/O: 5 digital inputs, 2 analog inputs, and 5 outputs
18. Mileage report

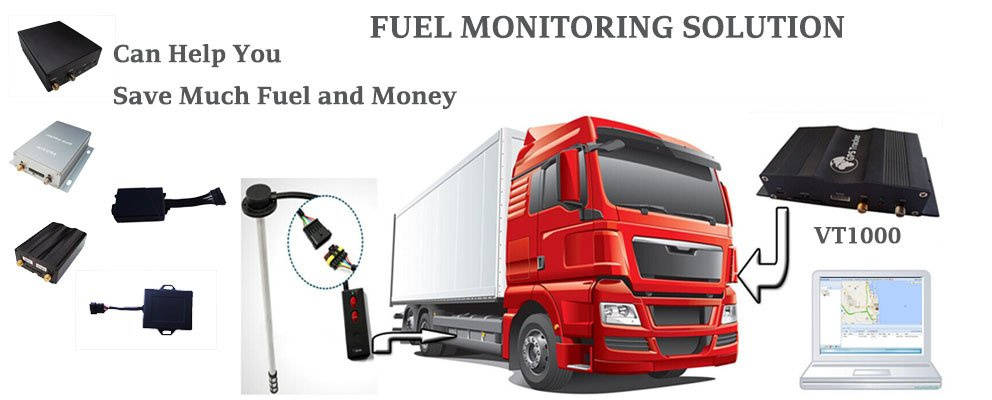

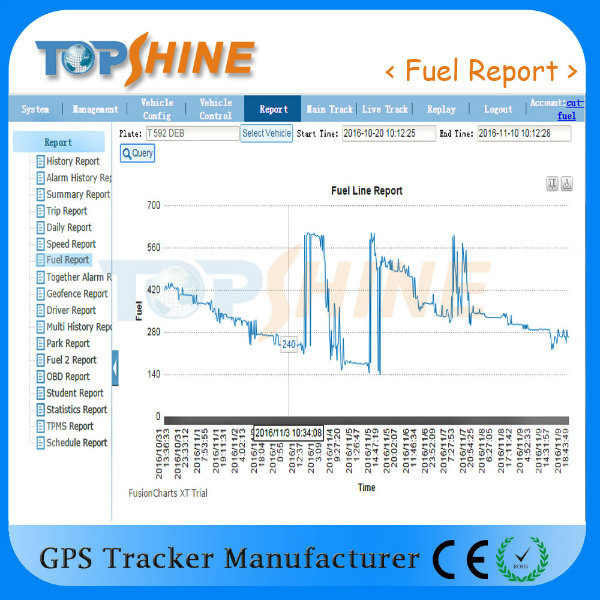

19. Monitor fuel consumption for Fleet management(optional)

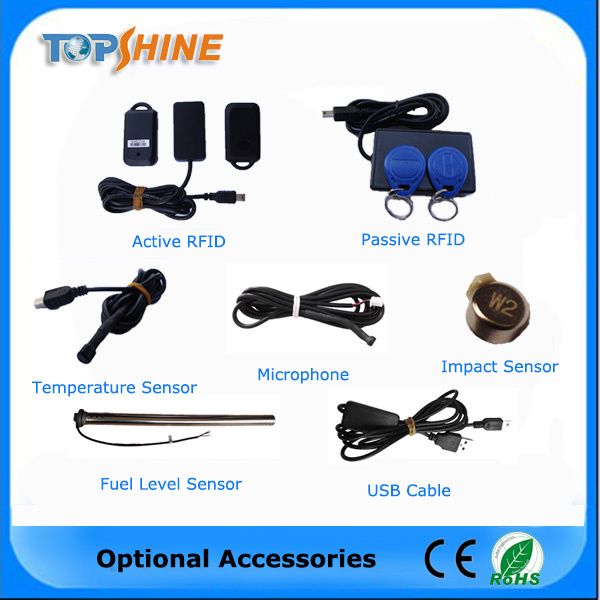

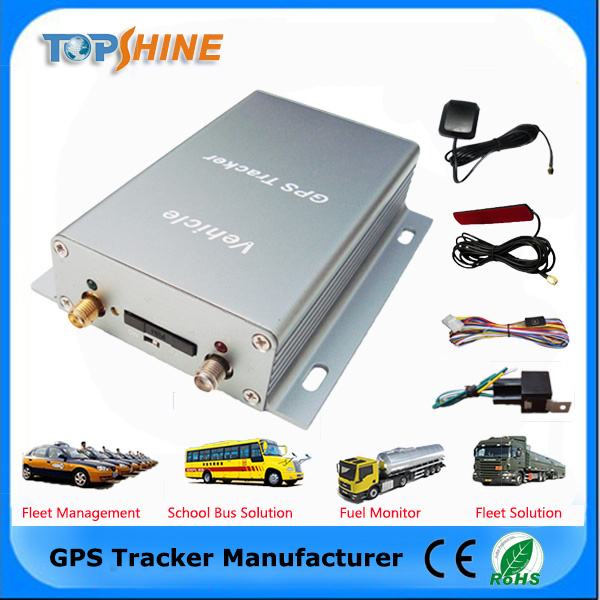

20. Monitor temperature(optional)Package and Accessories| Standard accessories |
| Main unit | Wire |
| GPS antenna | SOS button |
| GSM antenna | Relay |
| Optional accessories |
| Cuttable fuel sensor | Ultrasonic fuel senosr |
| Temperature sensor | Crash sensor |
| Mircrophone | Buzzer |
| Speaker | |

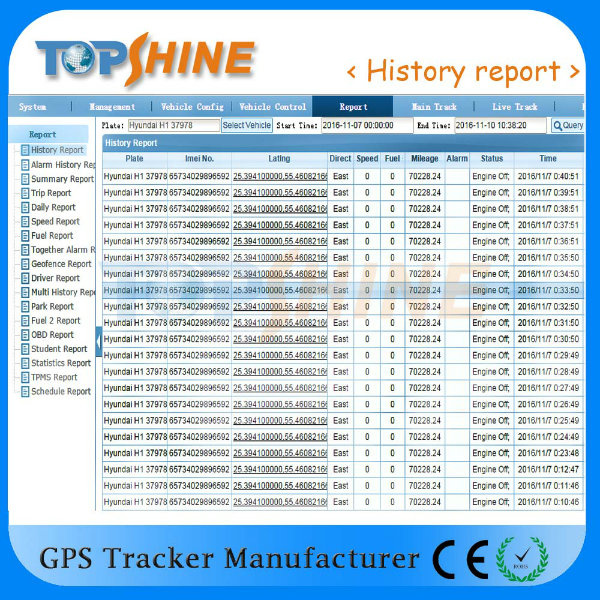

Welcome to access Topshine GPRS01 trackin software PC: www.track-car.com
Mobile Phone: www.track-car.com/M
User name: hongkong
Password: 123
TOPSHINE advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No any monthly or yearly charge.
* 2 years warranty
* All of products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform or hardware.
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
