| Prod Model: |
gps vehicle BN303H |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V, 24V |
| Special Features: |
Real Time Tracking, Digital Compass |
| Tracking System: |
Web Server Platform |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Network: |
GPS Vehicle Tracker Support GSM |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GSM/GPS |
| Model: |
GPS Tracker Tk303h |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
CB900 |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
Cheapest coban multiple motor vehicle tracking device gps tracker with CE FCC
Product Description

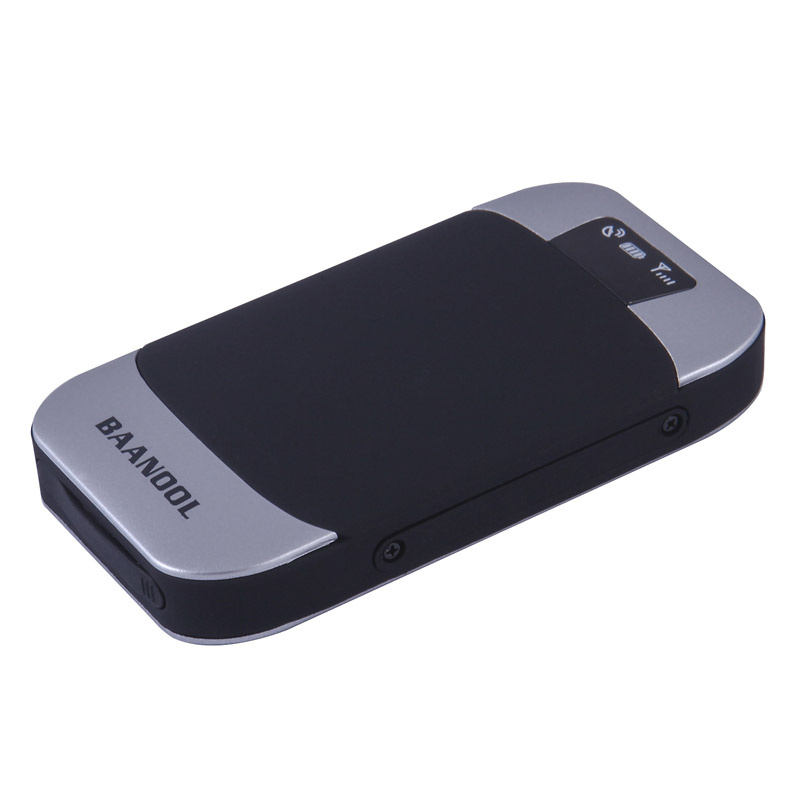

GPS-303H tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
Features
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Specification| Content | specifications |
| DIM. | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Package
GPS unit
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Attention
Optional accessories
MicroSD
Alarm sire(big or small both ok)
Fuel sensor
Function
Single Locating
Auto track continuously (Track with limited times upon time interval,
Smart track upon time and distance interval)
Turning points update automatically
GPS drift suppression
Exact street address
Location based service (LBS) / Cell-ID Locating
Monitor
Data logging
Data Load
Forward the third parties' message
SIM card Balance Inquiry
ACC working alarm
Cut off the oil and power system
Calibration of fuel sensor
Function of Remote Controller (Option, for model G ONLY )
Arm(Set up arm by SMS, Set up arm by remote controller (Option, for model G ONLY))
Silent Mode
DISARM
Decide how many times of alarm message
Alarm Function(Low battery alarm, External Power off alarm, GPS blind Spot alert, SOS, Geo-fence, Multi-area management, Movement alarm, Overspeed alarm, Fuel Alarm)
Alarms under Arm State (Door Open Alarm, ACC Alarm )
Built in Acceleration SensorAlarm
Alarm without GSM network service
Sleep Model
Check the Vehicle State
Check IMEI
Set up Terminal (local) Time
Reset Hardware
Configure parameters by USB
Activate "Fuel" value in GPRS data
Set up monitor center number

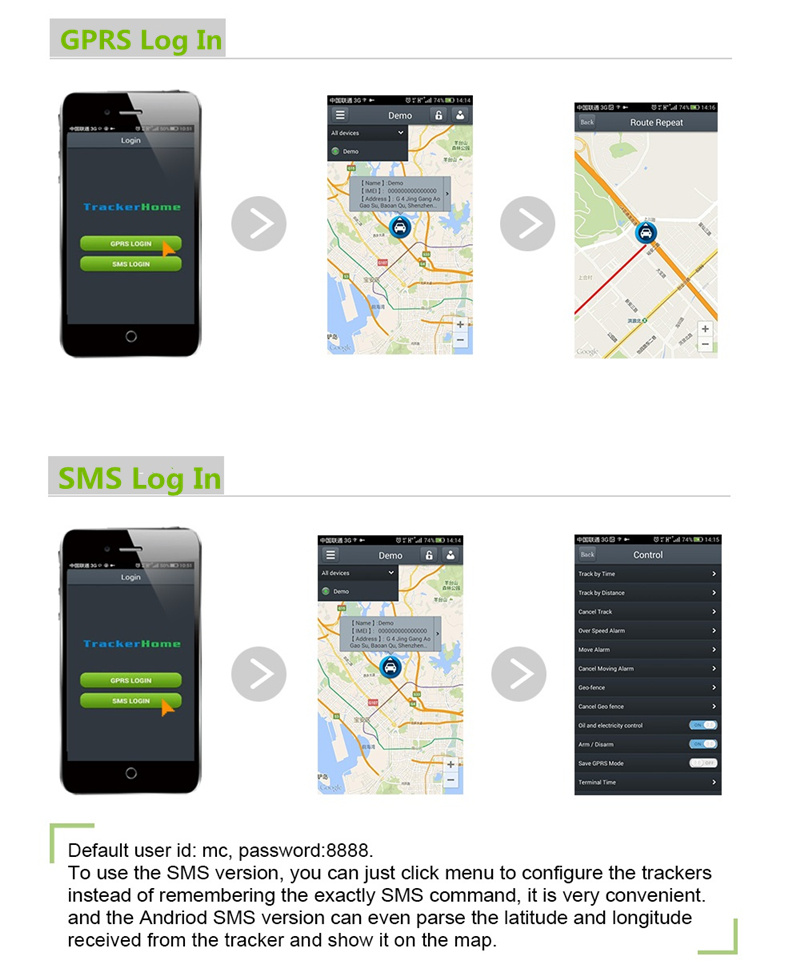

web platform and mobile APP
Picture Show

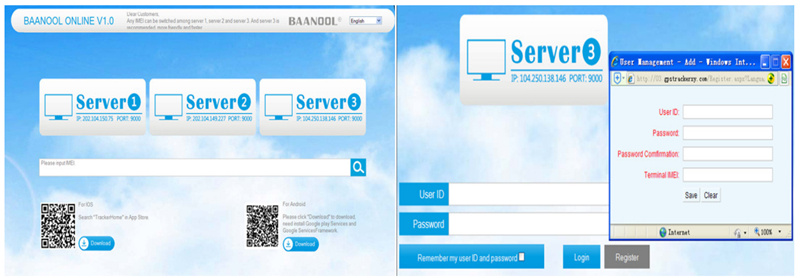

Our online tracking system
