| Prod Model: |
GPT26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gpt26 |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
3.7VDC |
| Battery Capacity: |
7000mAh |
| Tracked By: |
Web, Mobile APP, SMS |
| Port Number: |
Multichannel |
Product Description
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
*GPS / LBS Double locating mode , support A-GPS
*Usually LBS working, GPS can be enable when needed (automatically closed after 6 hours)
*Built-in 7000mAh High-capacity battery, The longest standby for a month (LBS status)
*Strong magnetic force,can be adsorped on iron
*Military grade three anti-performance, waterproof to IP67
*Keelin Tracking Service Platform, Keelin APP Client, SMS query
*Support EELINK protocol, can be integrated to any platform of the customer's
*OTA upgrade firmware.
Base Specification
Voltage: 3.7VDC
Standby Current: <30mA
Work current: <15uA
GPS positioning accuracy: 15m
GSM positioning accuracy: 100m
GPS Frequency: 1575MHz
GSM Frequency: 850/900/1800/1900MHz
Hot/warm/cold start time: <3s, <15s, <60s
Dimensions (mm): 108.5(L) × 66.5(W) × 22.4(H)
Operating temperature: -20º C~70º C
Operating humidity: 20%~80%RH
Net Weight: 180 g
Alarm Type
Vibration Alarm
Speed Alarm
Geo-fence Alarm
low battery alarm
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or APP. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Accessories (Optional)
Relay/ Microphone/SOS
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500PCS or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000PCS stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.

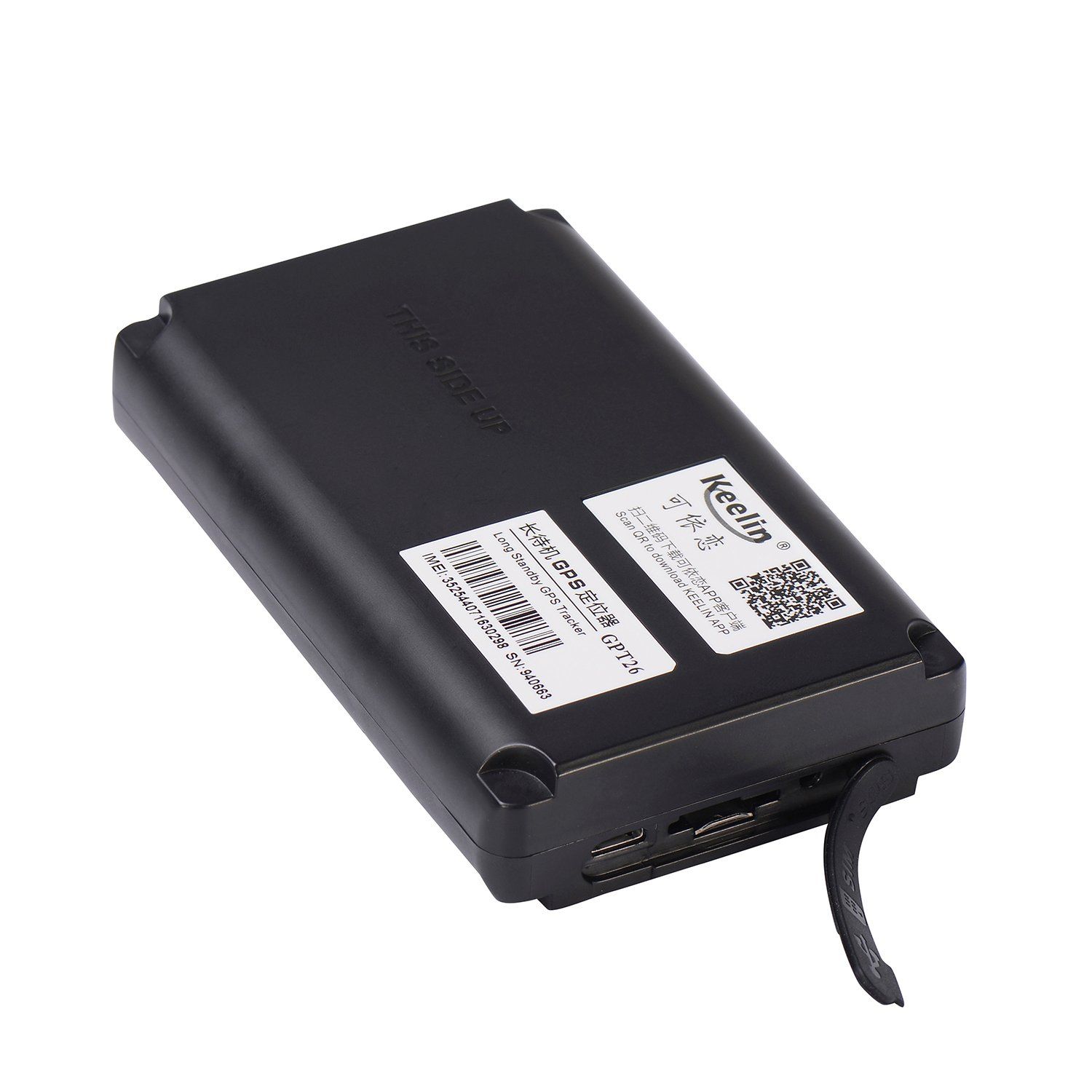

Vehicle GPS Tracking device picture GPT26
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
