| Prod Model: |
TK116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk116 |
| Color: |
Black |
| Weight: |
42g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/48VDC/60VDC |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Chip: |
MEDIATEK |
| Brand: |
Keelin |

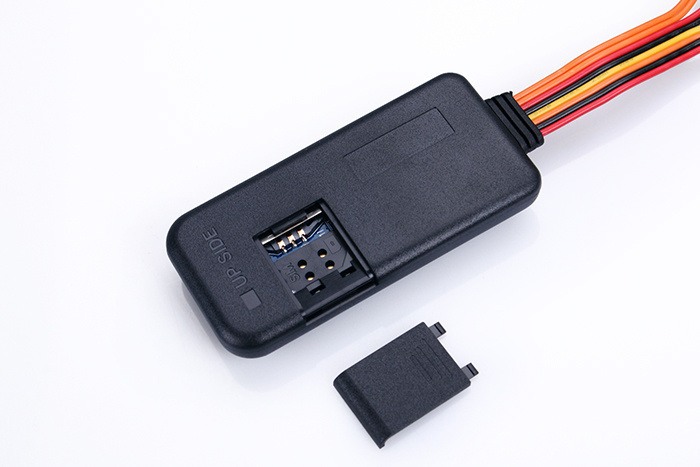

Product Description
Using GPS tracker, we can position, monitor and control the vehicle on the position server via GPRS, GPS and Internet. It can help customers to manage transparently, reduce cost, maintain security and raise efficiency. Now it is widely used in business traffic, logistics distribution, automobile lease, intelligent transportation, shipping market, army and police, rescuing, Safety Supervision, Intelligent city
PRODUCT FEATURES:
Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
Wide Input Voltage:6-36V DC.
GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
Keelin Tracking Service Platform, Keelin APP Client, SMS query
Built-in battery, Power disconnect alarm & Low battery alarm.
Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
Supports ACC status checking and vehicle status notifying.
Relay to remotely control the vehicle..
SOS button for SOS call.
MIC to remotely monitor.
Multiple protocol support, can be integrated to platform of customersOTA upgrade firmware.
Base Specification:
Voltage: 12VDC/24VDC/36VDC
Standby Current: <10mA@12V
Work current: <30mA@12V
GPS positioning accuracy: 15m
GSM positioning accuracy: 100m
GPS Frequency: 1575MHz
GSM Frequency: 850/900/1800/1900MHz
Hot/warm/cold start time: <3s, <15s, <60s
Dimensions (mm): 79.5(L)X38.5(W)X13.5(H)
Battery Capacity: 200mAh
Operating temperature: -20º C~70º C
Operating humidity: 20%~80%RH
Net Weight: 45 g
PLATFORM/APP:
Real-time Tracking
Route Play Back
Cut Oil (Need Relay)
SOS Alarm (Need SOS Cable)
Listen (Need Microphone)
Vibration Alarm
Collision / Falling Alarm
Speed Alarm
Geo-fence Alarm
Power Disconnect Alarm
Low Battery Alarm
FUNCTION EXTENSION:
1. Default interface: Microphone input port for remote monitoring
2. Can be extended: ADC input port , used for temperature and oil detection
3. Can be extended: External lithium battery port ,used for long battery life
4. Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
TK116 extensible function
Platform:
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Delivery:
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty:
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
| Base Specification |
| Voltage: | 12VDC/24VDC/48VDC/60VDC |
| Standby Current: | <10mA@12V |
| Work current: | <30mA@12V |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | 100m |
| GPS Frequency: | 1575MHz |
| GSM Frequency: | 850/900/1800/1900MHz |
| Hot/warm/cold start time: | <3s,<15s,<60s |
| Dimensions (mm): | 79.5(L)X38.5(W)X13.5(H) |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 45 g |
Scenarios:
TK116 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful,wide voltage 6-36V , cutting oil ,listening, SOS, can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers.
