| Prod Model: |
GPS103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Net Work: |
GSM/GPS/GPRS |
| Map: |
Google Map |
| Fucnction: |
Anti Theif for Car Vehicle Security |
| Battery: |
Internal Backup Battery |
| GPS Tracker Factory Location: |
Shenzhen, China GPS Tracker Manufactuer |
| Orignal GPS Tracker Supplier: |
Yes |
| Remote Cut Engin Off: |
Yes |
| Support Fuel Lever Montior: |
Yes |
| Easy Install: |
Yes |
| Warranty Time: |
1 Year |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Certification: |
ISO2000 |
| Model: |
GPS103 |
| Screen Size: |
No Screen |
| Brand: |
Coban / Baanool |
Product Description

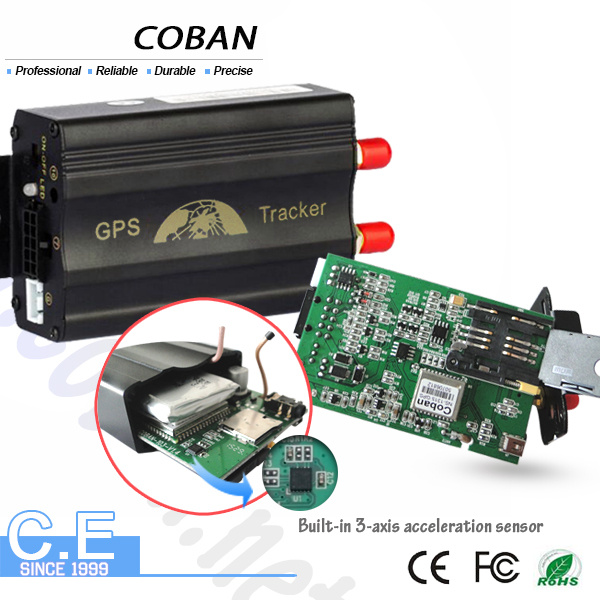

Car GPS Tracker tk103 with andriod & Ios APP tracking and remote shut engine off (GPS103-A)
--Adding ACC, Door, Shock sensor alarms
--Remote shutdown vehicle engine and resume
--Reset inside GSM and GPS module by SMS and Reset button
--"Arm" and "Disarm" by sending SMS
-- Support Silent Mode by SMS commands
--SMS tracking on cellphone with Google maps link
--Get accurate address including street name by SMS
--Real time tracking, voice listen in function
--Free PC based software for live tracking
--Web based online tracking server
--Five mobile numbers can be authorized to device
--Support GPS+LBS Positioning ways
Basic Function:
1. ACC alarm, Door alarm, Shock sensor alarm
2. Power -cut and restore alarm by SMS
3. Engine -cut and restore alarm by SMS
4. Power off alarm when the power be cut off or the voltage is 0V
5. Anti-thief for 24 hours a day
6. SOS panic alarm. When there is emergency, only need to press the SOS button, and then the tracker will send SMS "help me! + latitude, longitude" to all the authorized numbers every 3 minutes.
7. Voice Surveillance. When the tracker stay in "monitor" mode, you can call the tracker and hear the voice of remote target.
8. Geo-fence alarm. Set up a geo-fence for the tracker to restrict its movements within a district.
9. Movement alarm. (default distance is 200m)
6. Overspeed alarm. To restrict the speed of the tracker and control it well
7. Low battery alarm. It will remind you to charge the unit in time.
8. Single Locating by calling the tracker
9. Auto Track by sending SMS commands
10. Location based service (LBS), when there is no GPS signal, it will be located by LBS.
11. Get accurate street address by sending SMS "address+password".
12. SMS and GPRS two modes switch freely as you like
13. Setting local time of the unit by SMS
14. No GSM network alarm. Some place where there is no GSM network, if trigger alarms, the siren will beep continuously.
Applications:
Used widely for vehicle and other moving objects tracking.
Technology parameters:
*DIM: 83*54*26mm
*Weight: 120g
*Network: GSM/GPRS
*Band: 850/900/1800/1900MHz
*GSM/GPRS Module: SIM900B
*GPS Module: SIRF3 chip
*GPS Sensitivity: -159dBm
*GPS Accuracy: 5m
*GPS Start time: Cold status 45s Warm status 35s Hot status 1s
*Voltage of car power system: 12 V-24V
*Backup battery: 3.7V 800mAh Li-ion battery
*Storage Temp.: -40C to +85C
*Operation Temp.: -20C to +65C
*Humidity: 5%--95% non-condensing
Specifications
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
