| Prod Model: |
car gps tracker TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Output: |
Engine Shut, Siren Alarm |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Anti-Theft Car Tracking: |
Shut Engine Remotely |
| Applying Direction: |
Vehicle Fleet/Logistics/Vehicle Rental |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
103 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

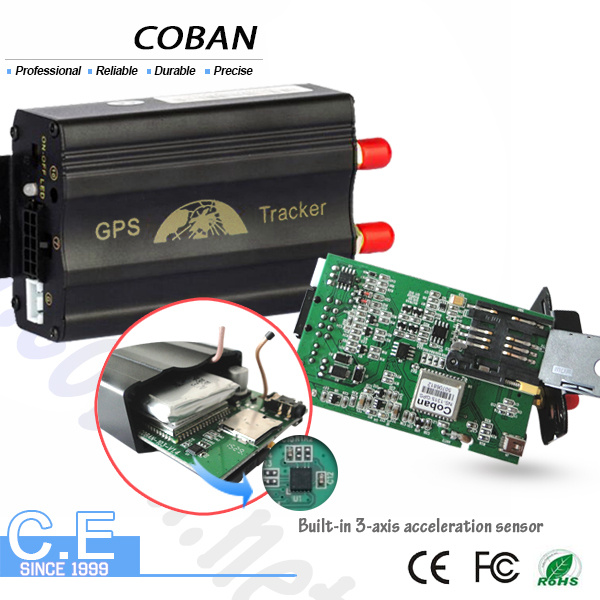

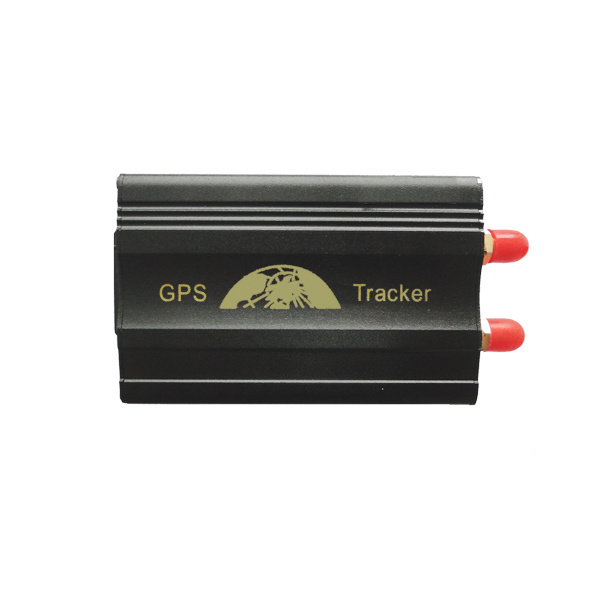

car gps tracker with Android IOS APP tracking (TK103) -For vehicle (12-24V)
-Realtime tracking, voice listen in function
-SOS/Geo-fence alarm
1). GPS Tracker, which set multiple functions of accurately positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety, special for vehicle.
2)The product fully supports the functions of SMS / GPRS / Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
3). Applying directions: Vehicle fleet/logistics/Vehicle rental

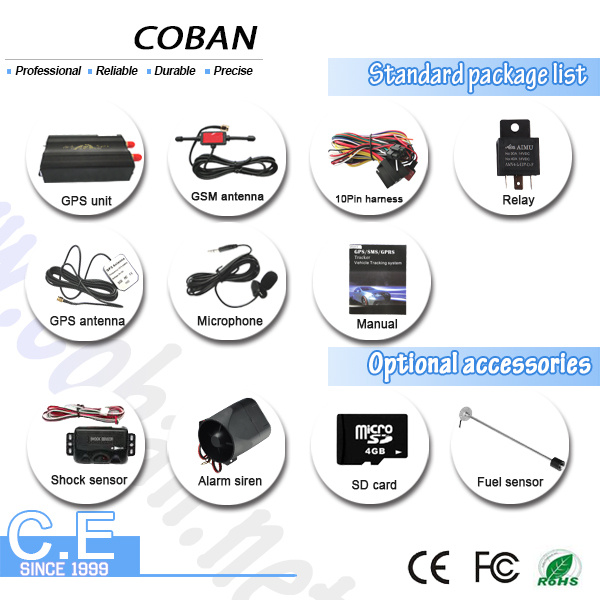

What is in this package:1 PCS GPS Car Tracker TK-103;
1 PCS GPS Antenna;
1 PCS GSM Antenna;
1 PCS Harness;
1 PCS Relay;
1 PCS User Manual
specification| GSM Module: | | For vehicle (12V-24V) |
| Location base service(LBS) |
| Band: | 850/900/1800/1900Mhz | Remote control for "ARM" &" DISARM" |
| remote shutdown vehicle engine and resume |
| GPS Chip: | SIRF3 chip | Reset by SMS and Reset button |
| GPS sensitivity: | -159dBm | Real time tracking, voice listen in function |
| GPS accuracy | <5M | geo-fence, movement, overspeed, low batter alarm |
| TTFF(Time To First Fix): | Hot start (Open Sky) <1s | SOS panic button, door and ACC and sensor alarm |
| Hot start (Indoor) <15s | SMS tracking on cellphone with google maps link |
| Get aboslute address including street name by sms |
| Cold Start (Open Sky) <35s | Free PC based software for live tracking |
| Web based online tracking server |

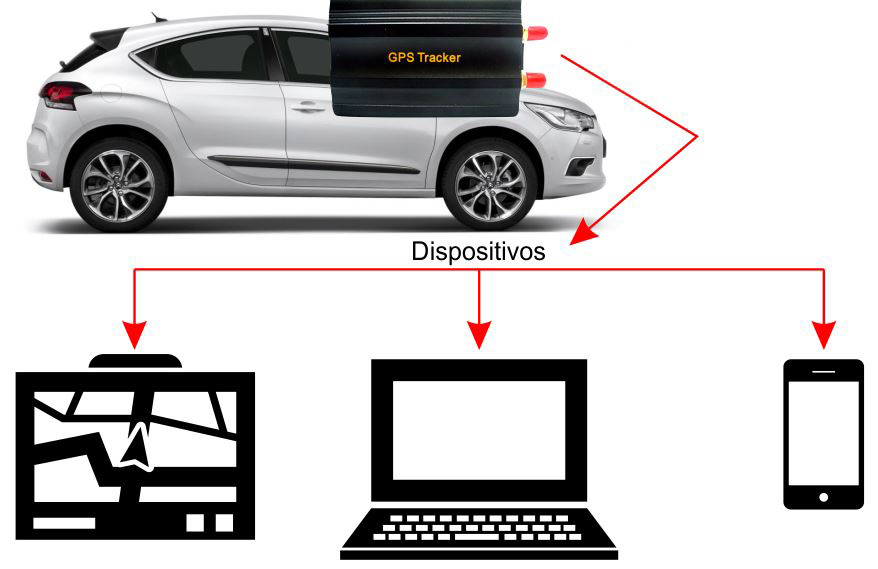

Tracking Solutions

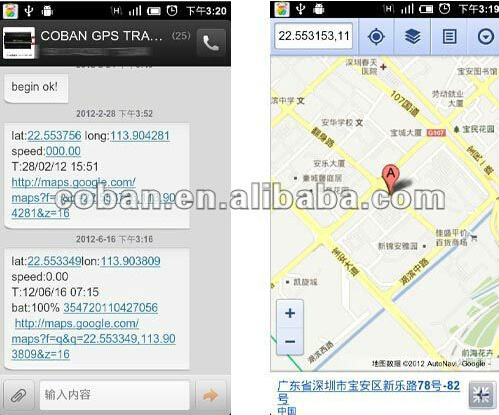

-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking

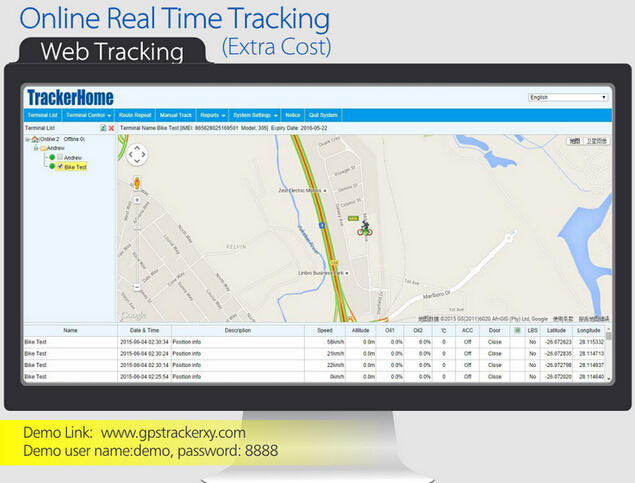

-Web server online tracking. Capable of monitor 10,000 objects
