| Prod Model: |
105 GPS Tracker with Camera |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
85*71*26mm |
| Frequencies: |
850/900/1800/1900 |
| GSM Module: |
SIM900b |
| GPS Module: |
Sirf III |
| Network: |
GSM/GPRS |
| Certificate: |
CE FCC ISO |
| Tracking System: |
SMS, Mobile Phone APP, Web Server |
| Warranty Time: |
1 Year |
| Feature: |
Dual SIM Card with Camera, RFID, Speed Limitor |
| Frequency Band: |
850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
Product Description
1) Vehicle GPS tracker
2) LBS + GPS satellites GPS tracker
3) Absolute address
4) Free soft
5) camera, fuel & temperature sensor, SD card slot

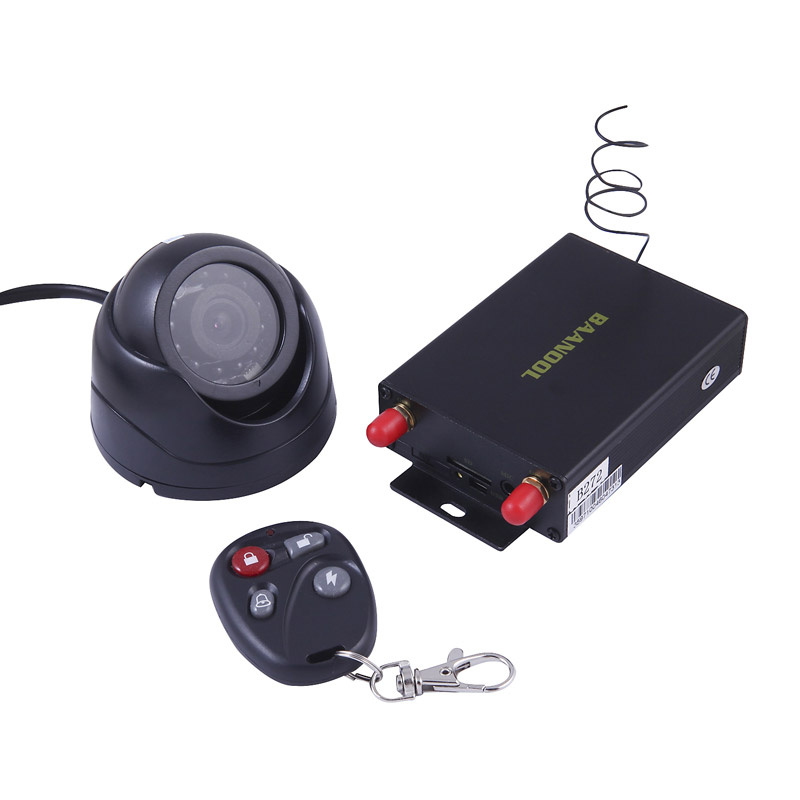

Car GPS tracker with camera, fuel and temperature sensor
GPS Tracker, which set multiple functions of accurately positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety, special for vehicle.
This GPS tracker fully supports the functions of SMS / GPRS / Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Basic functions:
1, Location based service(LBS) + GPS doubel way tracking solution
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS
15, Door, windows alarm get by SMS
16, Movement alert sensor
17, Free tracking GPRS software send you in CD package
18, with direction and heading value
19, Optional vibration sensor and fuel sensor
20, Optional camera
21, Support SD card function
22, Absolute street address request by SMS.
Applying directions:
Vehicle fleet/logistics/Vehicle rental (12-24V)
| Content | Specifications |
| DIM | 85*71*26mm |
| Weight | 170g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V -24V
|
| Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
