| Prod Model: |
car gps tracker TK103B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network: |
Car GPS Tracker with GSM GPS Network |
| Weight: |
120g |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Remote Controller: |
Optional for Tk103b |
| GPRS Tracking Protocol: |
TCP UDP |
| Warranty Time: |
12 Months |
| Arm Alarms: |
Acc, Door and Shock Sensor Alarm |
| Delivery Time: |
2-3 Business Days |
| GPS Tracking Solutions: |
GPRS Web Platform, SMS, Android Ios APP Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Vehicle GPS Tracker 103 |
| Brand: |
Coban GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

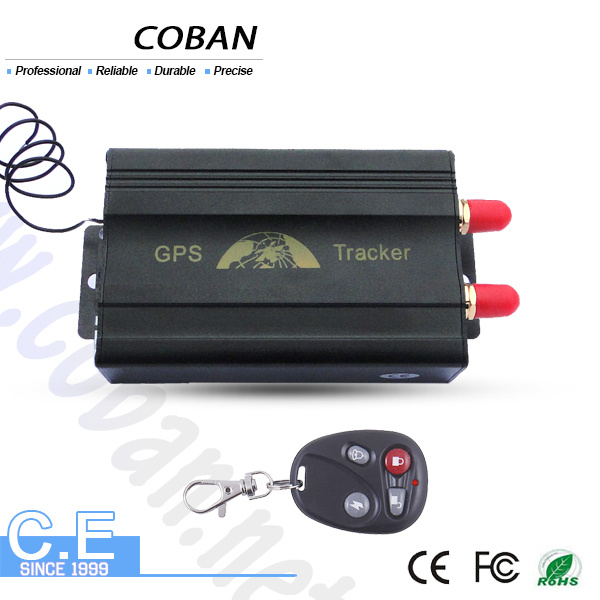

Car GPS Tracker with Remote Engine Shut and APP Tracking TK103BThis tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Multiple Tracking Ways:*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.

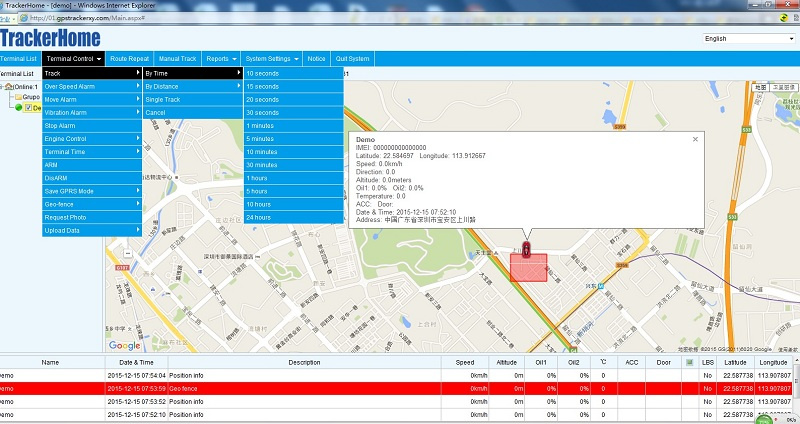

*Web based online tracking on PC at our server www.gpstrackerxy.com
*Android Ios APP real time track on cell phone
Function Description: 1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14
, Engine -cut and restore alarm by SMS GPRS15, Door, windows alarm get by SMS
16, Movement alert sensor
17, Optional Android IOS app tracking
18. With direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function
21. Smart track upon time and distance interval
22. Automatic update positions of vehicle turns
23. GPS drift suppression
24. Data logging
25. Forward third parties message to authorized phone number
26. charge inquiry
27. Multi area management
28. Accident alarm(Option)
29. ACC working alarm
30. Configure parameters by USB
31. Less GPRS traffic
32. GPS blind spot alarm
33. Fuel sensor(option)
34. Sleep mode fuction
Specifications| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

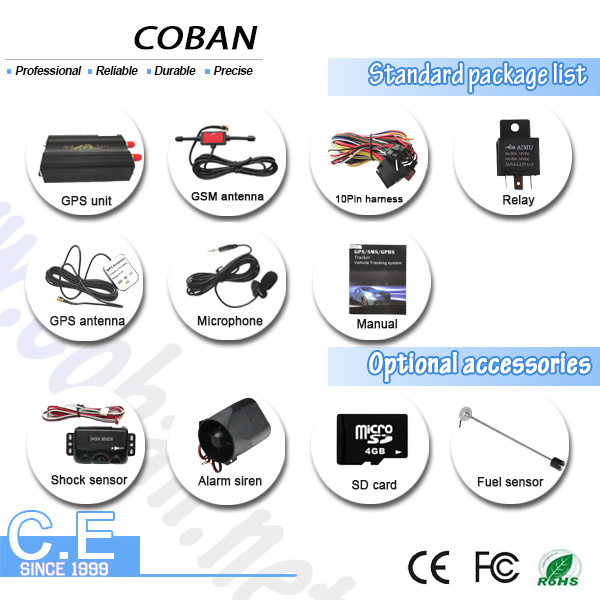

Product Notes:Great for private use, company car or rental fleet managementComes with external GSM and GPS antenna for excellent receptionInstall the mic inside your passenger compartment, and you can listen to conversations inside the car without letting any passenger or driver knowComes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed mapStandard Package Include: 1 x tracker
1 x user manual
1 x GPS Antenna
1 x GSM Antenna
1 x packing box
1 x harness (cables)
1 x 12V relay
1 x microphone
1 x Remote control and remote control Antenna (Only for GPS103B)
FAQ - Frequently Asked QuestionsHow do I make sense of the longitude and latitude data this unit provides?Both Google Maps and Google Earth can easily translate the data into usable visual information.The unit does not pick up a GSM signal and the SMS functions aren't working,What's wrong? A number of things could cause this to happen:1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work2) Make sure there is money left on the SIM card and that it has not expired3) Make sure there is no PIN code associated with the SIM card4) Make sure roaming is enabled on your SIM account if you are in a different countryCan I install the software on multiple computers?No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:- Orders processed and shipped within 24-hours- 12 month warranty- In-house QC- Member discounts- Award winning customer support- Quantity order discounts- Worldwide ShippingReal time track on cell phone by APPCertification:
