| Prod Model: |

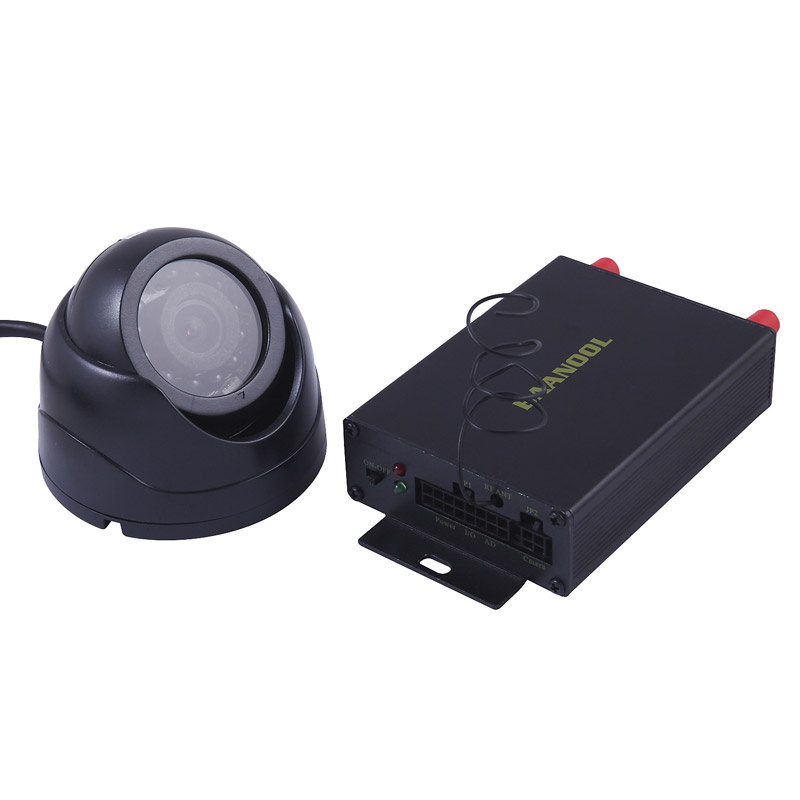

Car GPS tracking device GPS105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC |
| Weight: |
215g |
| Size: |
110*82*28mm |
| Shipment: |
DHL, UPS, EMS etc |
| Delivery Time: |
1-3 Working Days |
| Dim: |
110*80*26mm |
| GPS Accuracy: |
5m |
| GPS Sensitivity: |
-159dBm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Screen |
| Brand: |
Coban/ Baanool |
Product Description
Model: GPS105A
Description:
The product fully supports the functions of SMS/GPRS/Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management
It is based on GSM/GPRS (850/900/1,800/1,900MHz) wireless telecommunication internet and GPS satellite global position system,track by multiple tracking ways:
SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Web based online tracking on PC at our server www.baanool.net
*Real time track on cell phone by APP
Basic functions:
*Get absolute street address by SMS
*Take photo via camera by SMS message and temperature monitoring
*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*Location based service (LBS)
*SOS button alarm
*Geo fencing alarm
*Turning points update automatically in GPRS mode
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Compatible with car original anti-theft system
*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.
*Remote Start engine
*GPS blind area alarm
*Setup Appointment for engine
*Dual sim card and real time fuel sensor for fuel monitor
*Central locking system
*Empty / Loaded
*Footbrake Alarm
*Support sleep mode
*Bonnet alerts
*Vehicle maintenance notification
Optional function:
*Central locking system box
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID
Applying directions:
*Vehicle fleet/logistics/vehicle rental (12 to 24V)
Technology parameter:
*Dimension: 85mm*71mm*26mm
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time to first fix Cold status 45s,Warm status 35s,Hot status: 1s
*GSM Network frenquecy: 850/900/1800/1900Mhz
Standard packing:
1 x tracker
1 x user manual
1 x GPS Antenna
1 x GSM Antenna
1 x packing box
1 x harness (cables)
1 x 12V relay (option for 24V relay)
1 x microphone
1 x Remote control and remote control Antenna (Only for GPS105B)
Delivery and shipping:
We will send the good out in 2-3 working days once received your payment with real time tracking No.
content | Specifications |
| DIM | 110*80*26mm |
| weight | 215g |
| network | GSM/GPRS |
| band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp | -20°C to +65°C |
| Interface | 5%--95% non-condensing |
