Prod Model: |
SLT01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Monitoring Driver's Behavior |
Tracker: |
Dual Speed Limiter GPS Tracker |
Tracking Platform: |
Web-Based and Mobile APP |
GSM Frequency: |
GSM 850/900/1800/1900MHz |
GPS Sensitivity: |
-159dB |
Voice Monitoring: |
Microphone |
Memory: |
2MB Data Logger |
Carrier Frequency: |
GSM 850/900/1800/1900MHz |
Chip: |
GPS Chip: Sirf3 GSM Chip: M35 |
Certification: |
Ce RoHS SGS |
Product Description

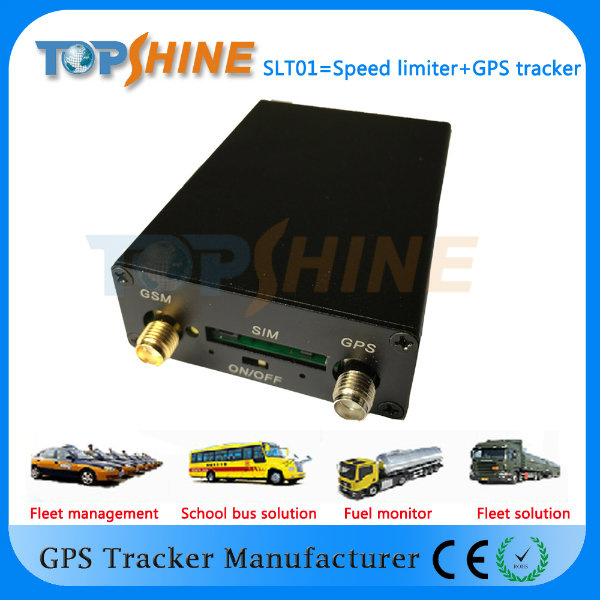

Car GPS Tracking system device control speed with dual speed governor Product OverviewSLT01 is a dual speed limiter + GPS/ GSM/ GPRS tracking device which is specially developed and designed for electronic speed limit and real-time tracking and security. We can set two max speed for good road and rough road. With superior GPS and GPRS modules, SLT01 has good sensitivity and stable performance. It can intelligently realize the effective control of high speed to avoid the hidden danger of road driving.
Features of GPS tracking device
1) Dual electronic speed limit
2) GPS tracker + accurate speed limiter
3) Tracking by time/distance interval
4) Real time tracking via the web-platform
5) Get position location via call/SMS
6) Get location physical name via SMS & from the web-platform
7) Google Map link for location via SMS, it shows your location on map via mobile phone.
8) SOS Panic button
9) Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
10) Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
11) Built-in 2MB memory & position logging capacity up to 10,000+waypoints even no GPRS signal
12) Engine on/off detection
13) Remote Engine cut off to stop the car in safe condition
14) Built-in backup 350 mAh battery
15) Wiretapping/remote listening (optional)
16) I/O: 2 Inputs, 1 Outputs, 1 Analog Input, UART
17) Analog input for Fuel sensor detecting/monitoring (optional)
18) More Alarm functions:
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS alert
Specifications of GPS tracking device
Model | SLT01 | Voltage | DC 9V~36V/1.5A |
Dimension | 75*50*20mm | Input | 2 digital input |
Net weight | 80g | Output | 1 digital output |
Back-up battery | 350mAh/3.7V | Analog input | 1 Analog input,for fuel sensor..etc |
Power consumption | 40mA standby current | Microphone | Optional |
Crash sensor | Optional | Memory | 2M Bytes |
Storage Temperature | -20°C to +70°C | Frequency bands | GSM 850/900/1800/1900 |
Antenna | external | Motion sensor | Yes |
GPS Chip | U-BLOX 7 | GPS sensitivity | -161 dBm |
GPS cold start | 29 sec | GPS warm start | 5 sec |
GPS hot start | <1 sec | Positioning Accuracy | 5 m CEP |


Applying directions
1. Speed limit, reduce accident
2. Ensure your safe driving
3. Vehicle Real Time Tracking
4. Fleet management to regulate the behavior of drivers
5. Refueling truck to manage the risk vehicles

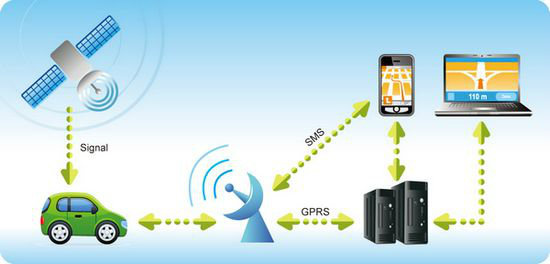

How is work:

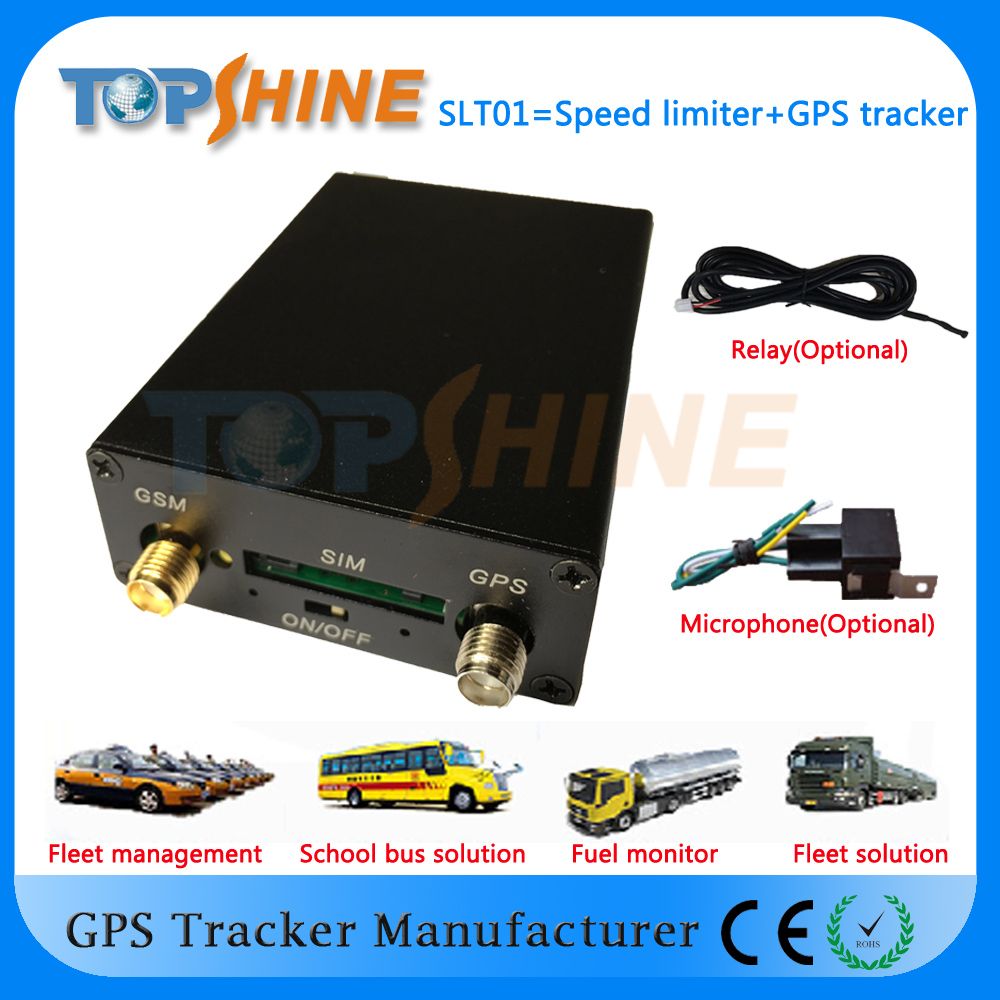

Package and accessories
Standard accessories |
Main unit speed limiter tracker | GSM antenna |
Wire harness | GPS antenna |
Optional accessories |
Microphone | Relay |
Cuttable fuel sensor | Crash sensor |
Ultrasonic fuel sensor | Buzzer |
USB cable | |
Packing Measures |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 225x160x55 | 0.65 | 1 set |
Carton | 470x340x310 | 14 | 20 sets |

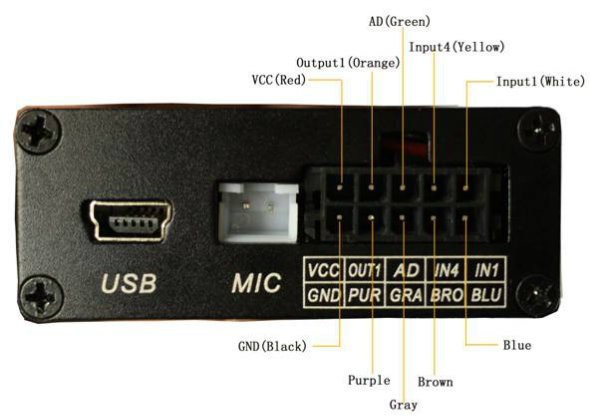

Installation of GPS tracking device

PIN Number | Color | Description |
Input 1/SOS | White wire | Digital Input 1 (negative triggering), E.g. connect SOS panic button |
Input4 | Yellow wire | Digital Input 4 (positive triggering), E.g. detecting status of ACC on/off |
AD | Green wire | It can be used to connect with fuel/temperature sensor etc. |
Output 1 | Orange wire | E.g. Connect relay to cut off engine or fuel |
VCC | Red wire | Positive, DC In (power source). Input voltage: 12V~24V. 12V suggested. |
GND | Black wire | Negative |
Note: pls check diagram above for installing these 4 wires | Purple wire | Connect first signal wire to ECU |
Blue wire | Connect first signal wire to accelerator pedal |
Gray wire | Connect second signal wire to ECU |
Brown wire | Connect second signal wire to accelerator pedal |

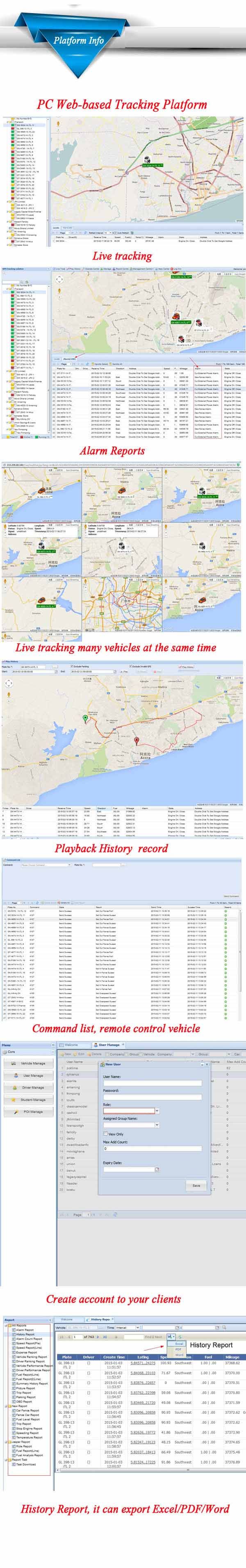

Topshine web based GPRS/GSM/GPS tracking software platform:
Welcome to log in our free tracking platform, no any monthly or yearly charges
Pc: www.track-car.com
Mobile link: www.track-car.com/m
Account: test1
Pass: 123

Our ServiceOur price comes with high quality products,lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.With purchase of our GPS tracker, there is no additional or hidden cost to use our tracking platform. We can creat free user name and password for you to monitor various vehicles. Warranty
1. Two years warranty is provided for all Topshine GPS tracker.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM & ODM Service
1.Customize company logo and brand on the device or box
2.Customize design in bulk order
3.Offer firmware modification service
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment.
