| Prod Model: |

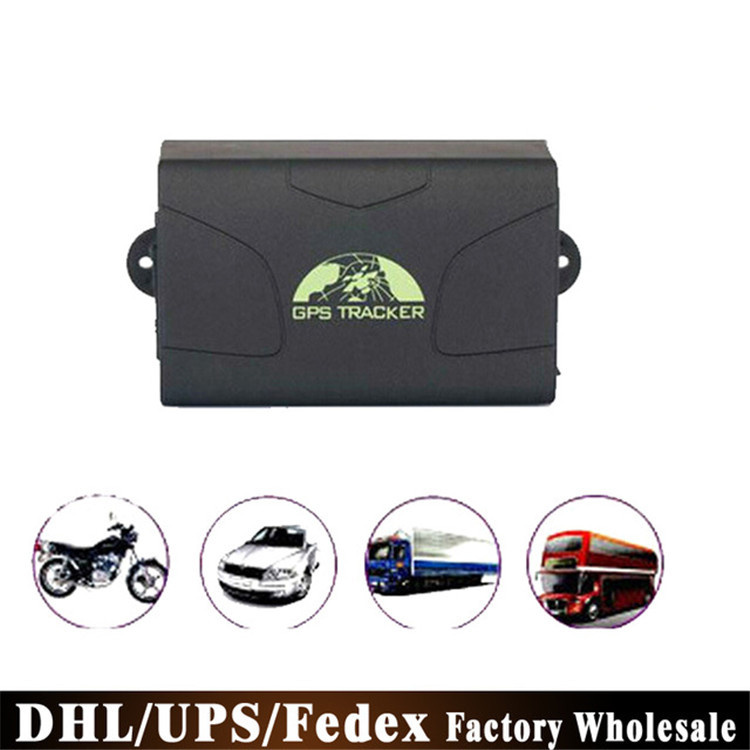

GPS Tracker tk104 |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V,24V |
| Special Features: |
Real Time Tracking, Digital Compass |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Function: |
Powerful Magnet + Water Proof |
Product Description
Function Introduction
1. Successive Locating Automatically, auto tracking, continuously receive report SMS from tracker at a least interval of 20s in SMS mode &10s in GPRS mode
2. Get Absolute address including street name, after a correct APN settings being set, NO need to input coordinates and check by Google Earth
3.Check the Vehicle State, know GSM/GPS signal strength, remaining power of car battery in case of any ignorance.
4.Setup time zone for tracker, a necessary setting to get Real-time SMS from your tracker. DO REMEMBER.
5.Track Mode, send command to the tracker or call it to get a reply via SMS
6.Monitor mode, listen what is happening around the tracker, just give the tracker a call after you switch its working mode from Track to Monitor
7.Cut off the Oil and Power System(Option)
8.Resume the Oil and Power System(Option)
9.Tracker's Hardware Resetting, default its factory settings
Alarm Function Geo-fence,Movement Alarm,Over Speed Alarm,Shock Sensor Alarm,SOS(Option), Low power alarm,Modes Switch between "SMS" and "GPRS" GPRS Tracking & monitoring platform We offer a variety of real-time tracking & monitoring software platform
1 View map on the cell phone screen
2 Get absolute address in SMS by cell phone
3 PC installation GPRS tracking & monitoring software
4 Web based GPRS real time online tracking
5 Please check the manual with the tracker for detailed instructions.
Production installation
1.The product is easy to install. The built-in powerful magnet can make it to be directly adsorbed on the iron objects.
2.Built-in GPS and GSM antenna, external antenna can be an optional.
3.The tracker is waterproof, but please still avoids the long-term placement in the places of water infiltration.
4.If you need an external power supply, cut oil & power system and SOS feature, Please find 4PIN main wire (if optional).
Applies to: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Specifications
| Content | specifications |
| Weight | 300g |
| Network | GSM/GPRS |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| | Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| | Deep sleep | 0.6mA |
| | GSM operating Current | 68mA±3mA |
| | GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| | Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Package
GPS Unit
AC adapter
Harness
Relay for stopping engine
External GSM antenna
External GPS antenna
Waterproof bag
Cigarette lighter car charger
manual | package
Attention
Optional accessories
Microsd memory card
IF you need Accessoories, Please contact us!
Function
Single Locating
Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Exact street address
Location based service (LBS) / Cell-ID Locating
Monitor (Voice Surveillance)
Data logging
Data Load
Forward the third parties' message
SIM card Balance Inquiry
Cut off the Oil and Power System
Decide how many times of alarm message
Alarms(Low battery alarm, Power off alarm, GPS blind Spot alert, SOS, Geo-fence, Multi-area management, Movement alarm, Over speed alarm, Shock sensor Alarm)
sleep Mode
Check the Vehicle State
Check IMEI
Terminal (local) Time Setting
Reset Hardware
Configure parameters by USB
GPRS configuration
Less GPRS traffic
Set up monitor center number
web platform and mobile APP
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. How to use the GPS Tracker ?
A:Prepare an common GSM card can make device to work.
Q6: Does the GPS can work anywhere ?
A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.
Q7: Can I use my own tracking system and server ?
A: Yes, we can share the device protocol for free.
Q8: Can I make my own company LOGO and design on device case or color box ?
A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.
