| Prod Model: |
Coban gps 306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Request For OBD Data By SMS: |
Mileage, Engine Status Diagnostic Tr |
| Map: |
Realtime Google Maps |
| Easy To Install,Wireless: |
Internal GPS&GSM Antenna |
| Delivery Time: |
2-3 Business Days |
| Functions: |
Vehicle Fleet Management |
| Warranty: |
12months |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Certification: |
Ce FCC |
Product Description

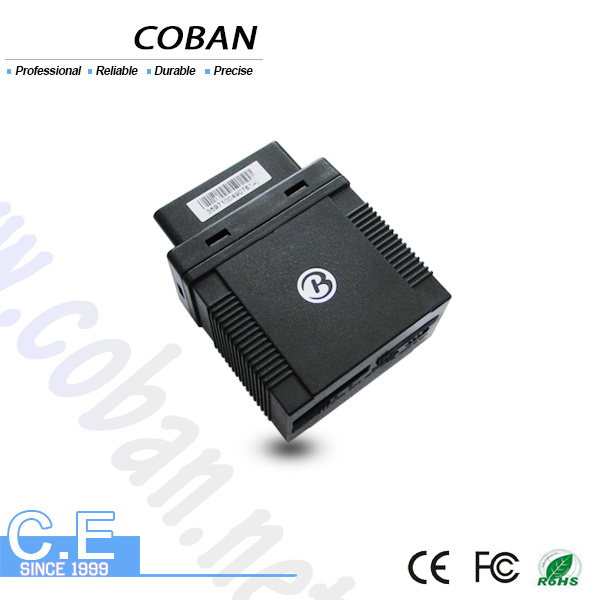

sim card OBD2/obd ii gps gprs gsm car tracker with diagnostic function
Function of gps tracker:Low Battery Alarm External Power off alarm GPS blind Spot alert SOS Geo-fence
Multi-area management Movement alarm
Over speed alarm
Alarms under Arm State
Shock sensor alarm
ACC alarm
Request for OBD data by SMS--Send Obdmsg+password to gps device,it will return below vehicle info .as following
ODO: Accumulative mileage
FLI: Remaining fuel
AF: Average Fuel
Dtime: Driving time
speed: Speed
Pload: Power load
TEMP: Water temperature
ATP: Throttle percentage
RPM: Engine speed
BAT: battery voltage
DTC: diagnostic trouble code
Warranty1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com

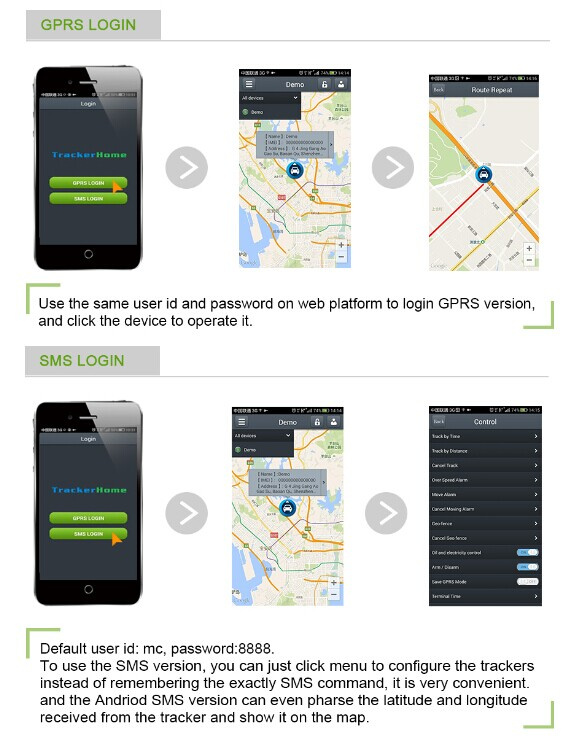

E >: IOS and Android APP

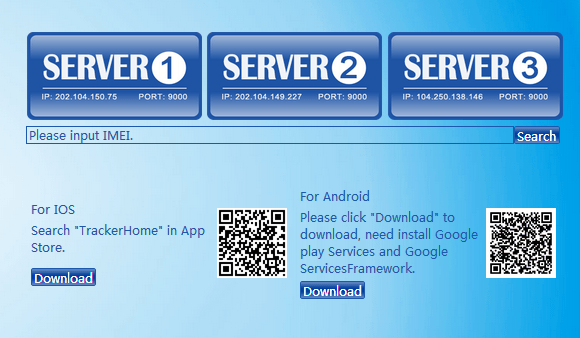

Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
Specifications:
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
1.1. OBD compatibility1.1.1. Protocol compatibility
The product supports existing OBD protocol:
l SAE J1850 PWM
l SAE J1850 VPW
l ISO 9141-2
l ISO 14230-4 (KWP2000_5BPS)
l ISO 14230-4 (KWP2000_FAST)
l ISO 15765-4 (CAN500_11BIT)
l ISO 15765-4 (CAN500_29BIT)
l ISO 15765-4 (CAN250_11BIT)
l ISO 15765-4 (CAN250_29BIT)

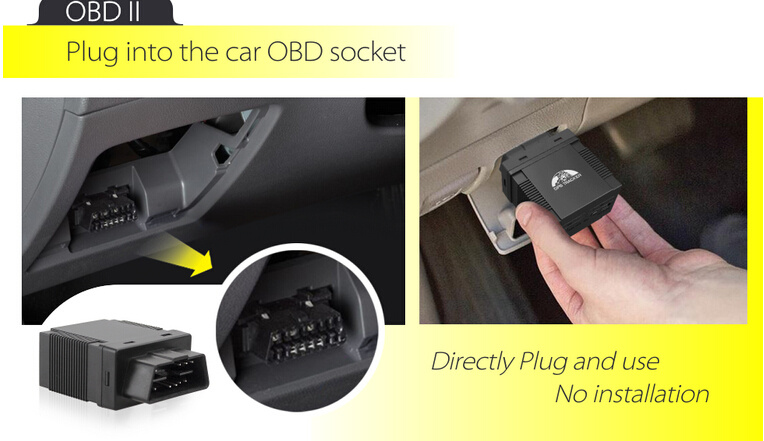

1.1.2. Vehicle CompatibilityApplies to all vehicles which are compatible with OBDII (Including, but not limited to the following models)
l US-produced gasoline vehicles are sold after 1996; all Chinese domestic car are sold after 2003;
l European gasoline vehicles are sold after 2001 or are produced after 2000; Diesel vehicles are sold after 2004 or are produced after 2003.
Support vehicle models:
| No. | Model | No. | Model | No. | Model | No. | No. |
| 1 | Mercedes-Benz | 2 | BMW | 3 | Audi | 4 | Land Rover |
| 5 | Buick | 6 | Chevrolet | 7 | Ford | 8 | Honda |
| 9 | TOYOTA | 10 | Volkswagen | 11 | Hyundai | 12 | SSANG YONG |
| 13 | Citroen | 14 | Mazda | 15 | subaru | 16 | Roewe |
| 17 | Peugeot | 18 | Chery | 19 | Cadillac | 20 | JINBEI |
| 21 | Haima | 22 | Kia | 23 | BYD | 24 | SKODA |
| 25 | FAW | 26 | Nissan | 27 | Geely | 28 | JMC |
| 29 | Dongfeng | 30 | MITSUBISHI | 31 | Porsche | 32 | Suzuki |
| 33 | Soueast | 34 | Isuzu | 35 | Acura | 36 | |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
