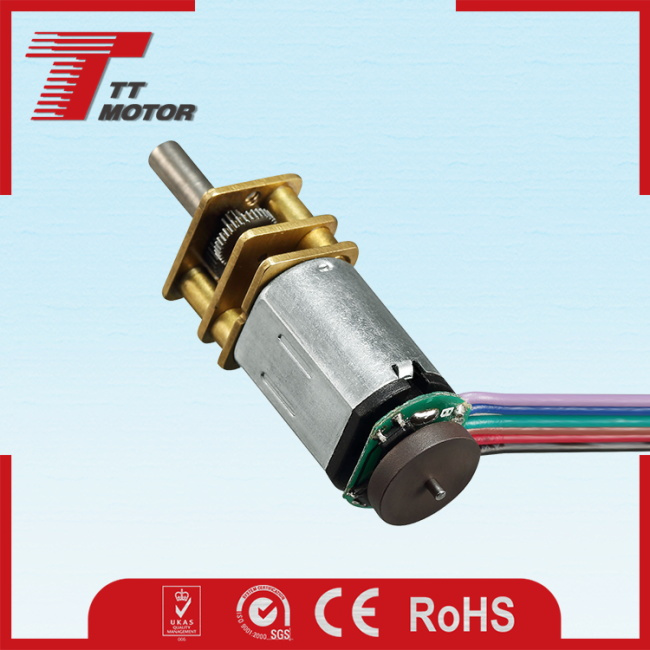

Car Permanent Magnet 2.4V electric DC gear motor

Prod Model:	DC Gear motor GM12-N20VA-EN
Product Name:	DC Gear motor GM12-N20VA-EN
Rated Voltage:	2.4VDC
No-load Speed:	14800r/min
No-load Current:	60mA
Rated Speed:	12000r/min
Rated Torque:	2.5g.cm
Rated Current:	200mA
Output Power:	0.31W
Stall Torque:	13G.cm
Stall Current:	1.20A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-proof
Type:	DC Gear motor
Certification:	RoHS CE
Brand:	TT motor

Product Description

Car Permanent Magnet 2.4V electric dc gear motor

Main Features
1.OEM/ODM 12X10mm gearbox plus N20&N30 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.12mm gear motor provide 0.1Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.DC Gear motor can match encoder,3ppr
6.Reduction ratio:3,5,10,20,30,50,63,100,150,210,250,298,380


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TFF-N20VA-13110	2.4	14800	60	12000	2.5	200	0.31	13	1.20
TFF-N20VA-09220	5	14800	30	12000	2.5	120	0.31	13	0.52
TFF-N20VA-05430	12	16000	15	12500	3.0	60	0.35	13	0.25

Gear motor technical data : GM12-N20VA-13110-XXX-EN

Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length mm	9	9	9	9	9	9	9	9	9	12
No-load speed rpm	1450	470	285	145	96	69	58	50	27	14.5
Rated speed rpm	1200	400	240	120	80	57	48	40	31	12
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5	1.0
Max.momentary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

Gear motor technical data : GM12-N20VA-09220-XXX-EN

Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length mm	9	9	9	9	9	9	9	9	9	12
No-load speed rpm	1450	470	285	145	96	69	58	50	27	14.5
Rated speed rpm	1200	400	240	120	80	57	48	40	31	12
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5	1.0
Max.momentary tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

Gear motor technical data : GM12-N20VA-05430-XXX-EN

Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length mm	9	9	9	9	9	9	9	9	9	12
No-load speed rpm	1550	530	310	160	110	78	60	55	43	16
Rated speed rpm	1100	400	250	125	83	60	50	42	33	13
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5	1.0
Max.momentary tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country
