| Prod Model: |
INV-02 |
| Voltage: |
DC 12V |
| Powered: |
75W |
| Overload Protection: |
150W |
| Output: |
AC110V/220V |
| Frequency: |
50Hz/60Hz |
| Size: |
60*39*120mm |
| Weight: |
0.15kg |
Product Description

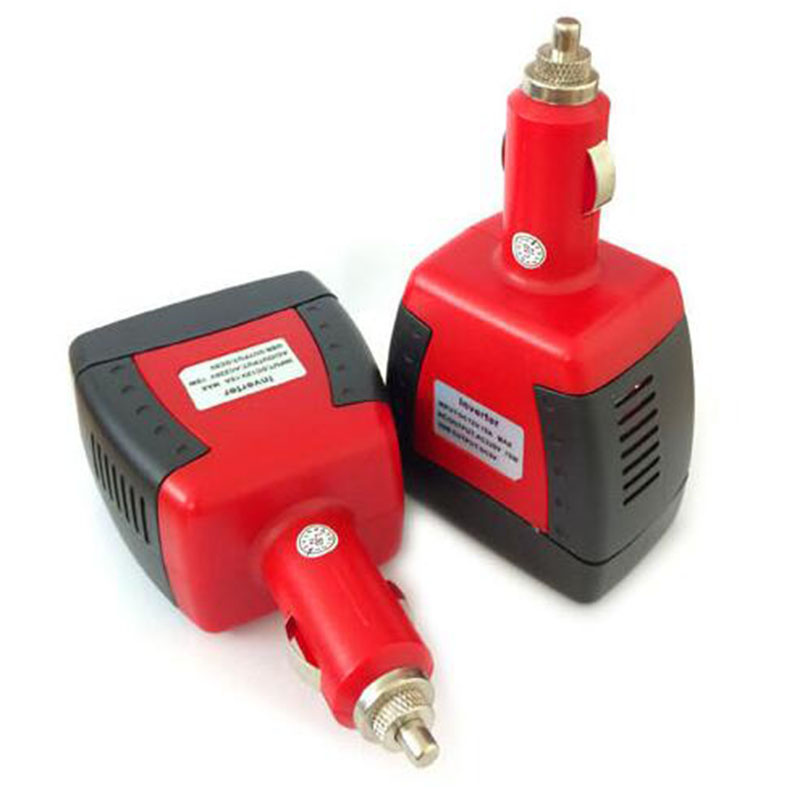

Car Power Inverter 75W DC 12V to AC 110V 220V With 500mA USB Port For Smartphone And Tablet PC Electric Device Vehicle Inverter
Features:
1. 100% High quality and brand new, blinster or color box packing
2. With universal plug socket, suitable for multi standard plug
2. Convert 12V DC to 110V/220V AC power, directly plug in any 12V cigarette lighter socket
3. Ultra compact and lightweight design, convenient with no additional wires or assembly required.
4. Built-in cooling fan, intelligent temperature control, quiet operation and no noise, free maintenance and more durable
5. Full protection and auto-shutdown keep your appliance and car from
over heat, over load, low load, short circuit, low voltage and over voltage.
5. With 5V 500MA USB interface, widely used in vehicle equipment, lighting, electric tools, notebook computers, digital photo printers, electric razor, digital camera, mobile phone, video camera, portable stereo, TV, fan, DVD, game machine, and other electrical equipment provide reliable AC power supply.
6. It will not be caused damage to external electrical appliances and the car itself, will not because forget to turn off and cause the vehicle can not be started, built-in electronic fuse, more secure and reliable
7. Microcomputer chip control technology, conversion power of more than 90%, current and voltage and overload microcomputer automatic control, to achieve the control of intelligent
Specifications:
Item: 75w Vehicle Inverter
Input Voltage: DC 12V
Rated Power: 75W
Max Power: 150W
Overload Protection: 100±20W
Output Voltage: AC110±10V/220±10V
No-load Current: ≤0.25A
Output Frequency: 50±4Hz/60±4Hz
Transfer Efficiency: ≥90%
USB Output: 5V 500mA
Under Voltage Protection: ≤9.8±0.5V
Over Voltage Protection: ≥15.5±0.5V
Over Heat Protection: 60ºC (± 5ºC)
Case Temperature: ≤50ºC
Over Temperature Recover: ≤38ºC
Output Wwave Pattern:modified sine wave
Dissipate Heat: built-in fan
Plug Socket: universal
Short Circuit Protection: yes
Size: 60*39*120mm
Weight: 0.15kg
Color: red/black
Packing: blinster/color box
Package Content:
1 x 75W Power inverter
1 x User manual
1 x Color box
Packing detail:
50pcs/carton
carton size: 51*35*26cm
G.W/N.W: 10kgs/9.5kgs
Instructions:
1. Overload protection, overload three times automatic stop output, red light warning
2. Under voltage protection, under voltage three times automatic stop output, when the voltage recovery to 12.5V automatic restart
3. Over voltage protection, over voltage three times automatic stop output, when the voltage recovery to 12.5V automatically restart
4. Short circuit protection, short circuit three times automatic stop output, red light warning
5. Overheating protection, overheating two times automatic stop output, red light warning
Note: there are Power 75W and 150W, Voltage AC 110V and 220V, Current 500MA and 2100MA, please place order according to your requirement and consult us.
