| Prod Model: |
VT310N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Silver |
| GPS Chip: |
Latest GPS Sirf-Star III Chipset |
| Is Customized: |
Yes |
| Check Car Door Status: |
Yes |
| Dimension: |
75*54*25mm |
| Input Voltage: |
DC 9V~24V/1.5A |
| Accident Alert: |
Yes |
| 850mAh Inbuilt Rechargeable Battery: |
Yes |
Product Description

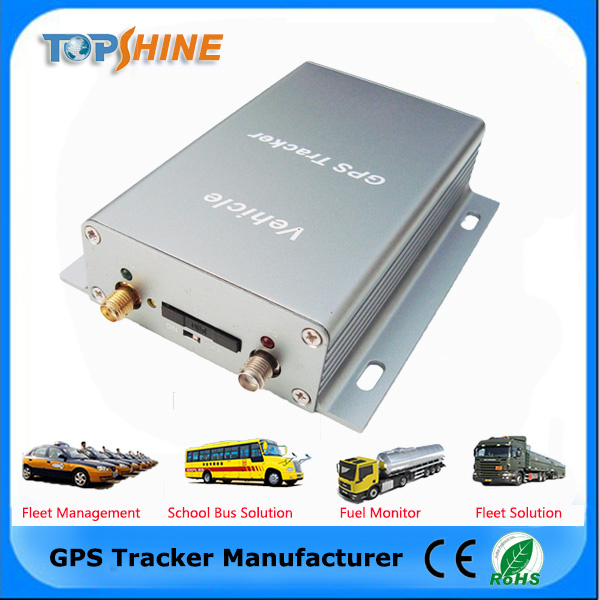

VT310N is a professional level GPS vehicle tracker focus on positioning and vehicle security. VT310N can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, with build-in motion sensor for power saving, with build-in memory to store GPS position info when no GPS signal and resend automatically when GPS signal recover. It has abundant ports for additional applications and tracking solutions especially suitable for fleet management.
Functions & Features:
1. Tracking via SMS or GPRS (TCP/UDP)
2. Current location report
3. Get actual address name via SMS or website
4. Get position GoogleMap link via SMS
5. Tracking by distance or time interval
6. Data logger function with 4MB memory.
7. Built-in motion sensor for power saving
8. SOS panic button
9. Geo-fencing control
10. Internal backup battery
11. Over-Speed alert
12. Suddenly acceleration/brake alert
13. Engine cut-off to stop the car in safe condition
14. Monitoring voice(optional)
15. Alert when VT310N enters/exits GPS blind area
16. Alert when VT310N is power failure
17. I/O: 5 digital inputs, 2 analog inputs, and 5 outputs
18. Mileage report
19. Monitor fuel consumption for Fleet management(optional)
20. Monitor temperature(optional)
Application:
Suit for Vehicle security / Fleet management
Complete Set:
Standard Package:
Main unit
GSM antenna
GPS antenna
Wire harness
Relay
Optional Accessories:
Special USB cable
Fuel sensor
Microphone
Active RFID kit
Passive RFID kit
| Technical Parameters: |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 104mm x 62mm x 24mm |
| Installation Dimension | 104mm x 83mm x 24mm |
| Weight | 150g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
