| Prod Model: |
car/vehicle Gps TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Weight: |
120g |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GSM/GPS/GPRS Network |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Brand: |
Baanool / Coban |
| Certification: |
ISO9001 |
Product Description

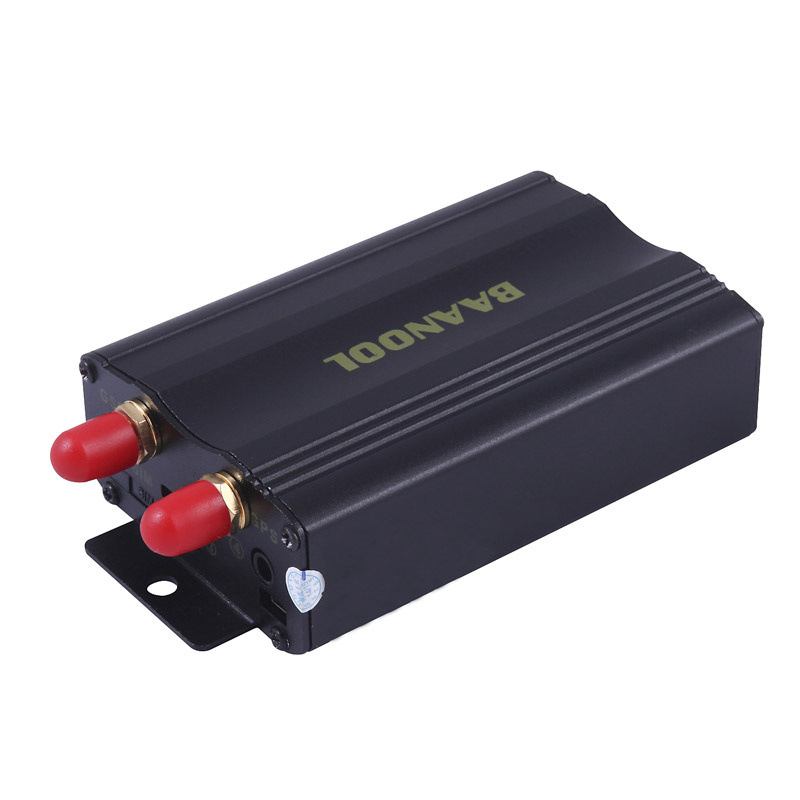

GPS tracker with Web based and PC based software by SMS/GPRS
-GPS car tracker: Function guard against theft, orientation, monitor, alarm, first aid, track, etc.
What is special?
1)GPS Tracker, which set multiple functions of accurately positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety, special for vehicle.
2)The product fully supports the functions of SMS / GPRS / Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
What is the basic information?
It is based on GSM/GPRS(850/900/1800/1900MHz)wireless telecommunication internet and GPS satillite global position system, track by several ways. Provide monitor software and global map. Real-time track through the monitor software in your PC; Track through your PDA cell phone and googleearth.
What's the featurers and functions?
1). Small cubage, Dimension: 83mm*54mm*26mm, weight: 120g,
Easy to hide. Support orientation without orientated server: It can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
2). Get location in real street/address name
3). Remote Engine-stop and Resume
4). Active and deactive DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
5). Tracking function by timing and frequency
6). Remote reset by SMS & reset button on the device
7). Input Power: 12V-24V DC
8). GSM/GPS LED indicator
9). Authorized number added and deleted function
10). Support hidden alarm and monitor function
11). Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
12). Power supply disconnection alarm.
13). Door alarm/ACC alarm
14). Movement alert: You can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
15). Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
16). Low battery alarm function
17). Check the vehicle status
18). Optional functions: Quiver alarmsiren/horn
Applying directions: Vehicle fleet/logistics/Vehicle rental
| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
