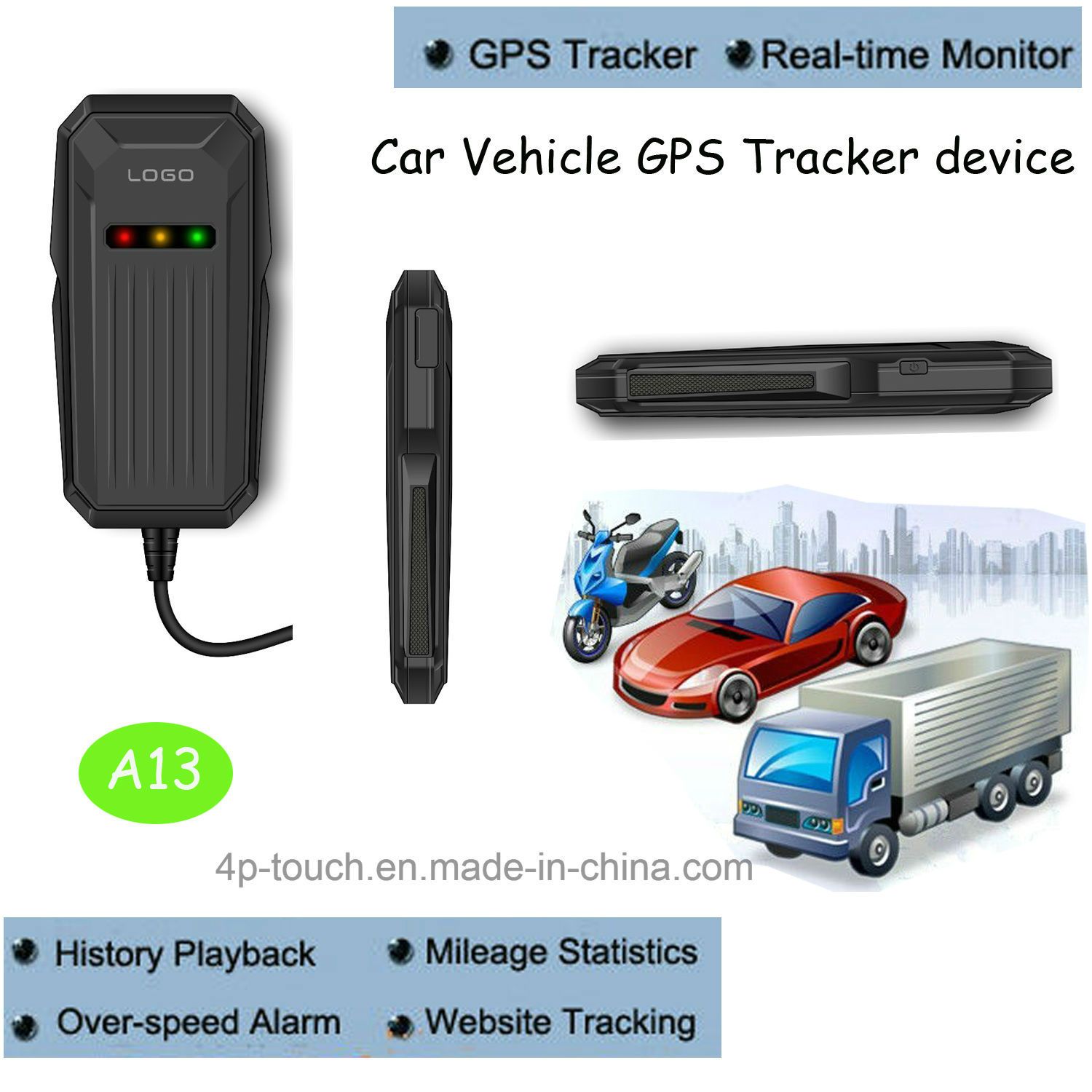

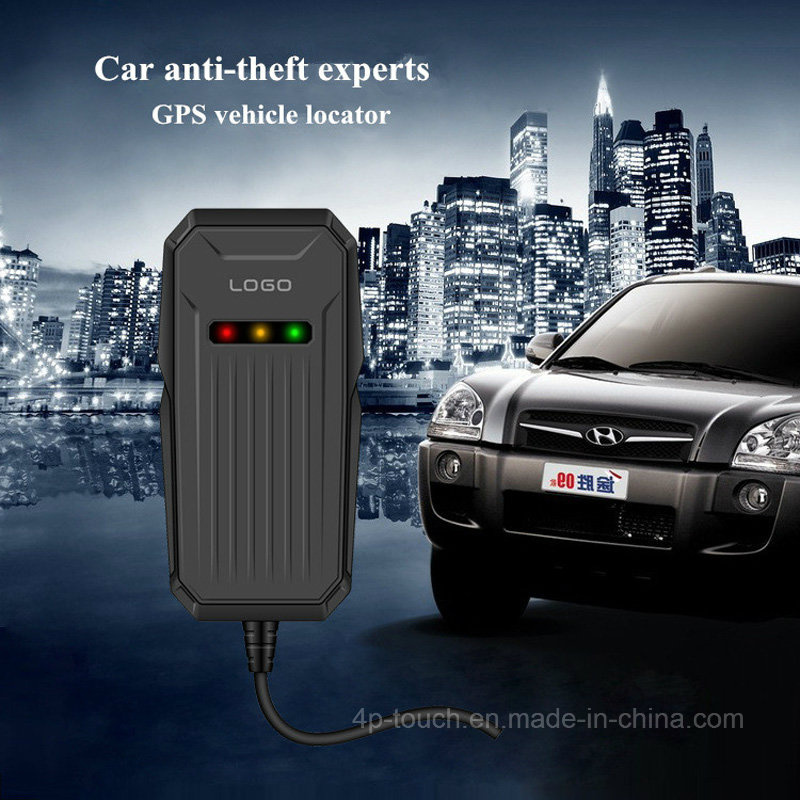

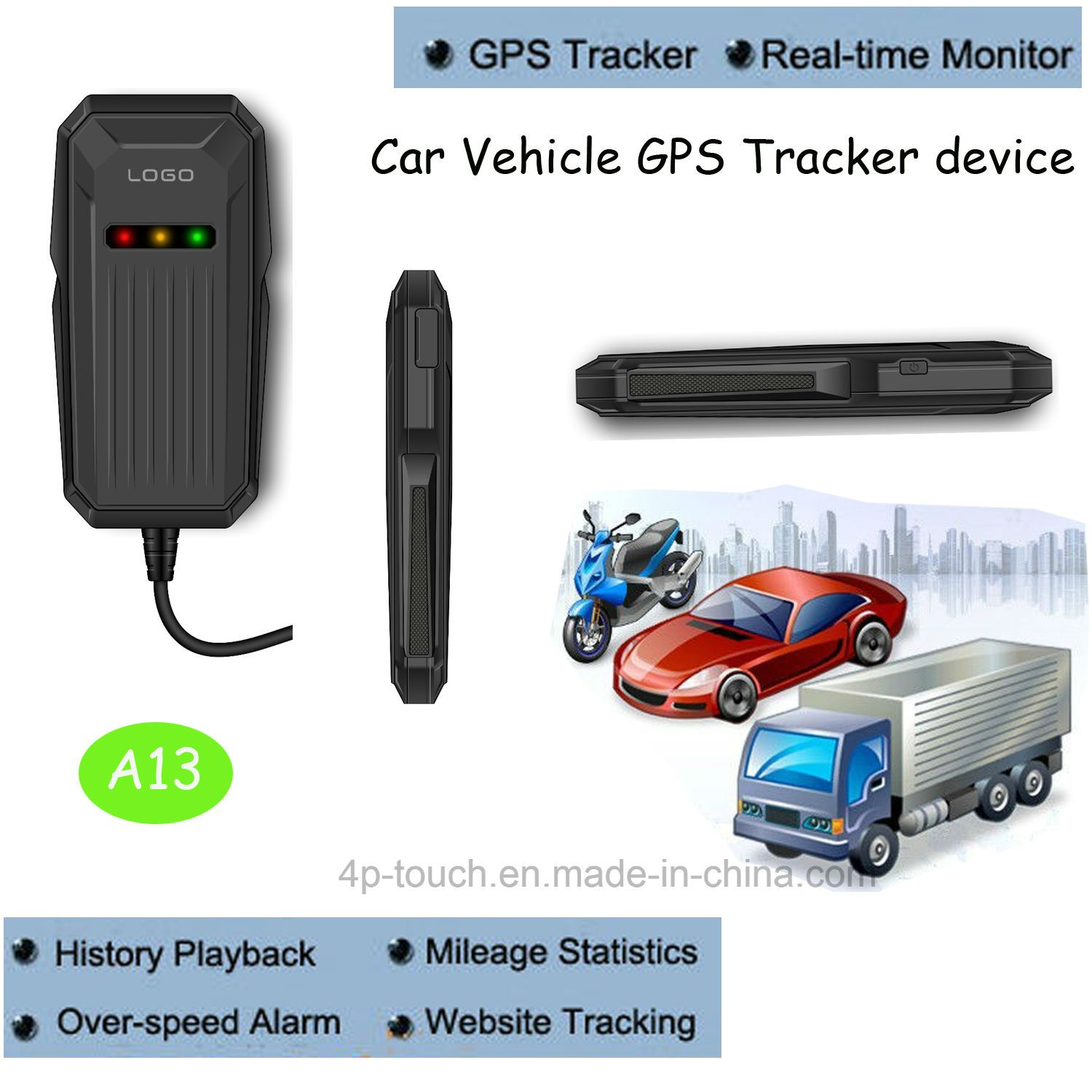

Car/Vehicle GPS Tracker with Cable Connector
| Price: |
US $ 22-23/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A13 |
| Net Weight: |
52g |
| SIM Card Slot: |
One Slot |
| Color: |
Black |
| Size: |
92X43X14mm |
| I/O Port: |
USB Port for Charging |
| Lbs Accuracy: |
100-1000m |
| Chipset: |
Mtk 2503 |
| Battery: |
350mAh |
| GPS Anttnna: |
High Sensitive Ceramic Antenna |
Product Description
Car/Motorcycle GPS Tracker with relay
Size:92X43X14mm
Net weight:65g
Button:Power button(p) and Function button(F)
GPS anttnna:High sensitive ceramic antenna
GSM antenna:Copper-Nickel Alloy
G-sensor: Support
Chipset: MTK6261
GPS chip:MTK3337
Batttery :350mAh
software: Android 2.3 and above, iOS 4.0 and above
Language:Chinese and English

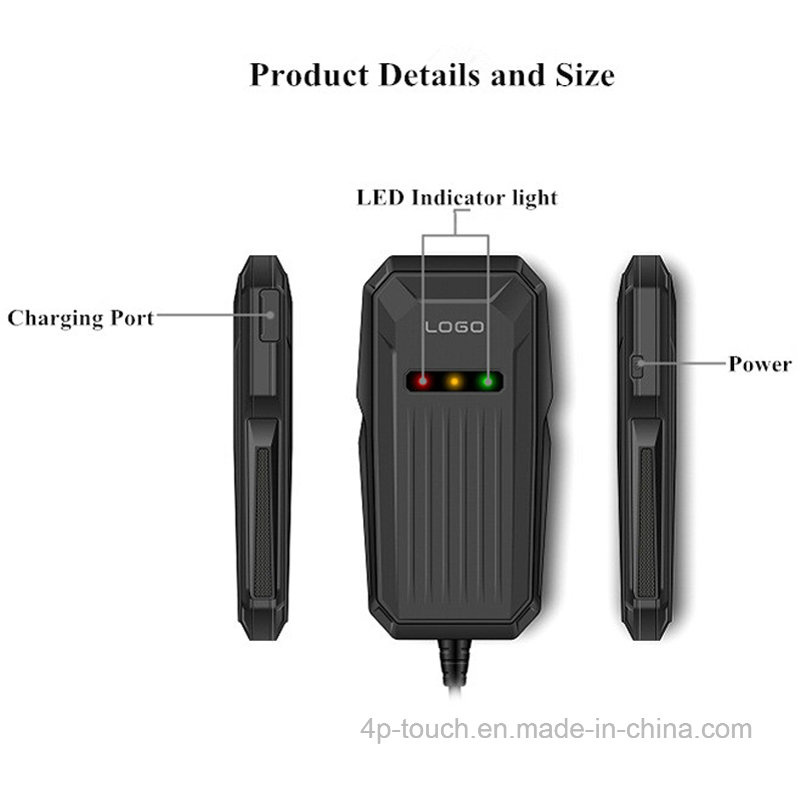

| Structure parts | Category | Specification |
| ID design | Compact and light weight |
| Whole machine size | 92X43X14mm |
| Weight | 52g without package,151g with package box |
| Colour | black |
| Buttons | one button (power button) |
| Screen | no |
| GPS antenna | High senstive ceramics antenna |
| GSM antenna | holder antenna |
| Battery | 350mAh |
| SIM card shot | 1 slot |
| G-sensor | Supported |
| I/O port | USB charge |
| Hardware parts | Clip | MTK6261 |
| GPS chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15M |
| Based station location accuracy | 100-1000M |
| Average standby current | less than 3 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working voltage | 11-50V |
| Working humidity | 5% to 95% non-congealable |
| Test and Certification | Can approval by 3C and CE |
| GPS antenna | Built in high sensitive FPC antenna |
| GSM antenna | Built in four frequency PIFA antenna |
| Bluetooth | Bluetooth 3.0(Normal closed ) |
| G-sensor | Supported |
| 12V storage battery protection | Supported |
| Software parts | Supporting operating | Support 2.3 and above system , IOS5.0 and above | |
| Language supported | Simplified Chinese and English | Compatible with suppport for multi-languages |
| GSM+GPRS+GPS | GPS+LBSmulti-modal positioning | |
| Support AGPS | Cold start 26 seconds positoning | |
| Power management | Ultra-low power consumption of power management,intelligent dormancy | |
| Intelligent fence | Outside the range setting can be automatic alarm | |
| Historical route | Can check history route of three months | |
| Wireless upgrading | Software remote upgrading, remote debugging maintenance , remote setting paremeters | |
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
If any comments,please feel free to contact us!
Thanks!
