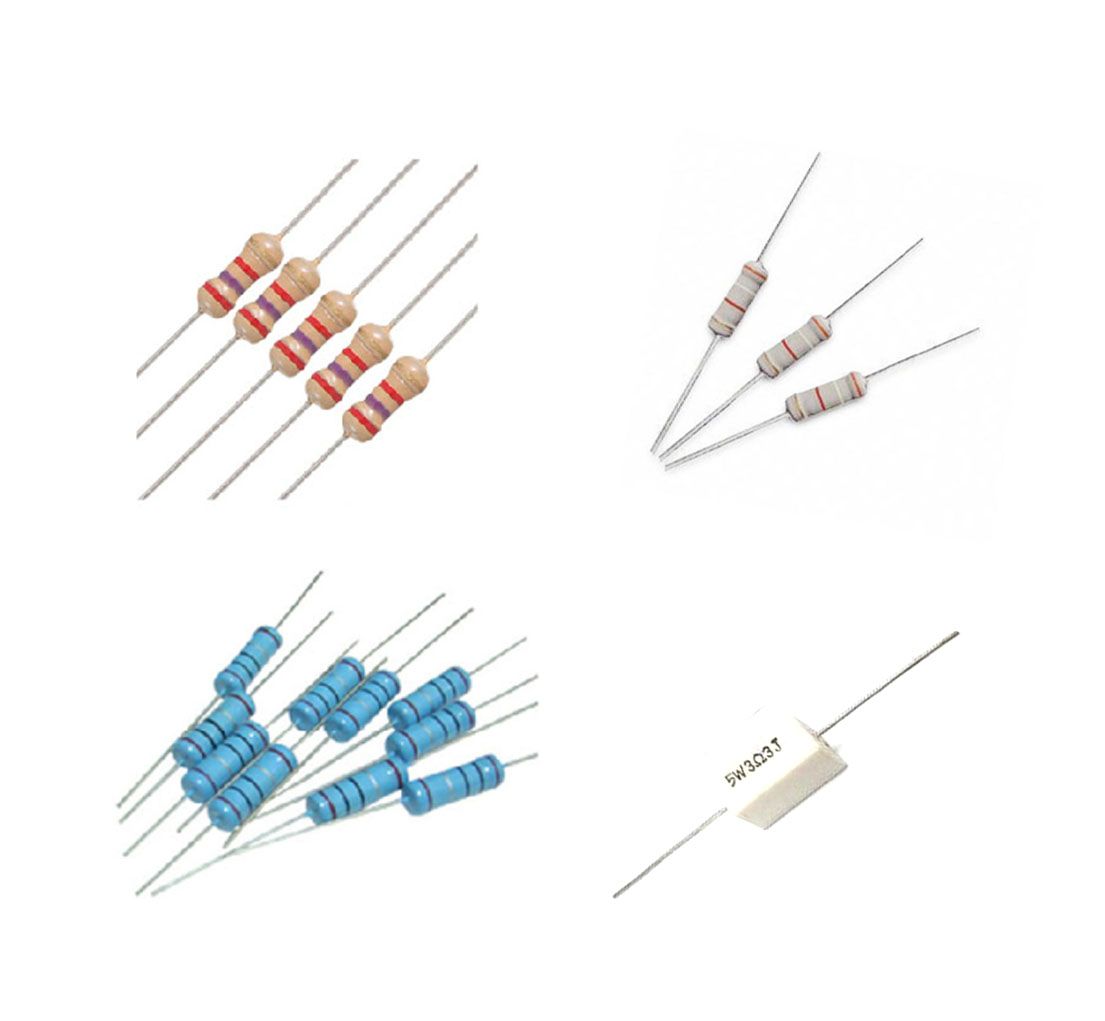

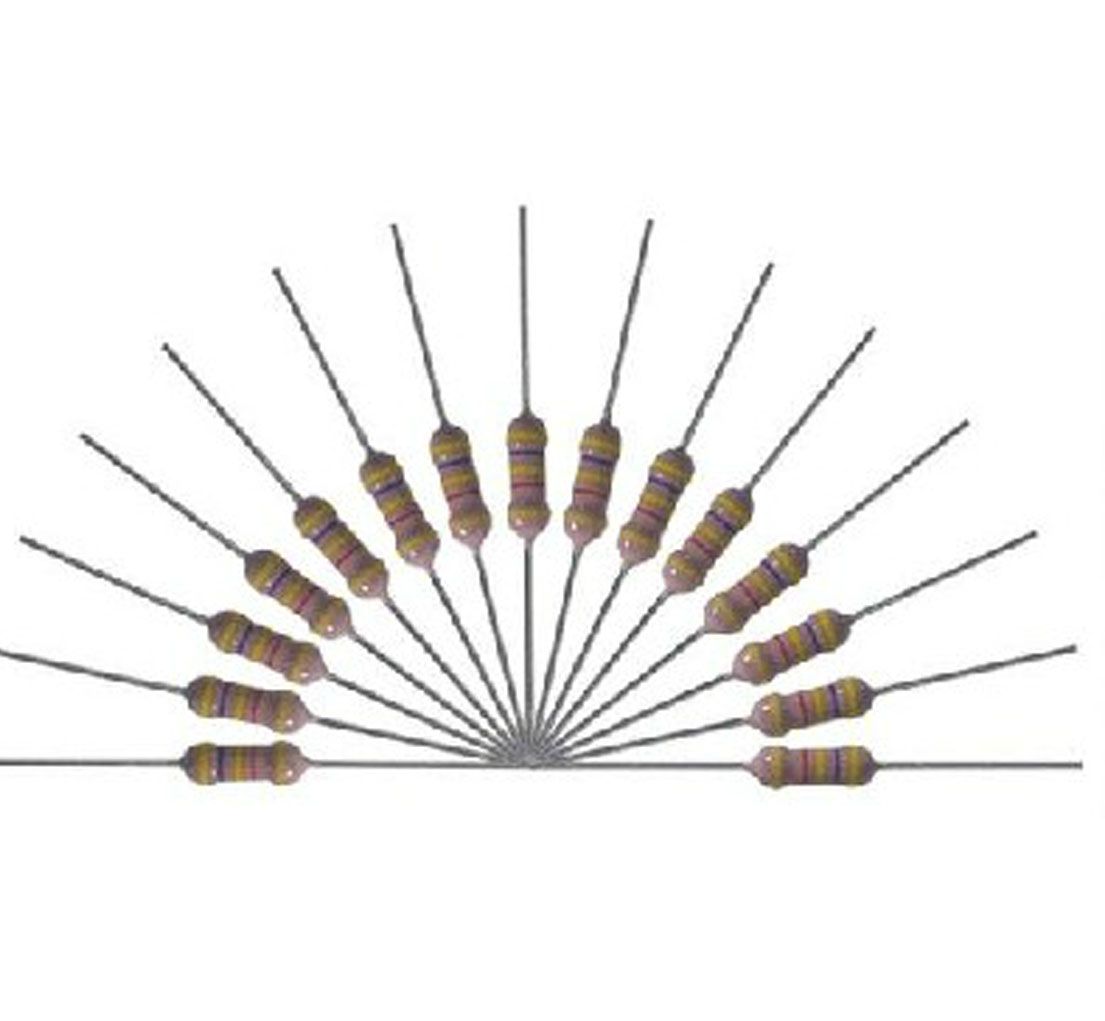

Carbon Film Fixed Resistor for PCB Board Dedicated

Prod Model:	rt1/4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	1/4W, 1/2W,
Resistance Range:	2.1ohms~10m Ohms
Pin:	Coppper or Iron
Pin Dia:	0.38mm 0.5mm
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Carbon Film Resistor
Package Type:	Throught Hole
Type:	Photoresistor
Brand:	OEM

Product Description

Features:
1 Small volume, high accuracy.
2 Low price, higher operating temperature and voltage.
3 Wide range of resistance values.
4 Several types of package: taping or bulk packaging.
5 High heat exchanged ceramic core
6.High stability electric conduction flim
7, Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage.
8, Highly adaptive pulse load, good high frequency performance
9, Operating ambient temperature: -55`C to +125`C.
10  Resistance tolerance: ± 2%, ± 5%, ± 10%.

Power: 1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W, 2WS, 2W, 3WS, 3W, 5WS
Tolerance: ± 2%, ± 5%, ± 10%.
Range: 0R1-22M

Applied to smaller communication meters and other electronic instruments and fit for the use as the voltage-lowering, voltage-dividing, current-dividing and load resistors in DC or low frequency circuits.


terminal strength	no dange ΔRmax ±0.3% or 0.5
soldering	good thing no dange ΔRmax ±0.5% or 0.5
temperature cycling	ΔRmax ±0.5%
vibration	no dange ΔRmax ±0.5% or 0.5
moisture resistance	ΔRmax ±3%
load life	ΔRmax ±2.5%
temperature coefficient
dielectric strength	2×work.volt no breakdown ΔRmax ±0.5%
insulation resistance	min10
short time overload	ΔRmax ±0.5%
resistance to solvents	no dange
