Carbon Paste Printed Circuit Membrane Switch for Electronic Scales
| Price: |
US $ 0.05-0.11/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DC-782 |
| Size: |
as Per Customer's Requirement |
| Shape: |
as Per Customer's Requirement |
| Printing: |
Silk Screen Printing, UV Offset Printing |
| Finishing: |
Matt, Glossy, Embossing |
| Type: |
Convex |
| Material: |
PET |
| Application: |
Camera |
Product Description

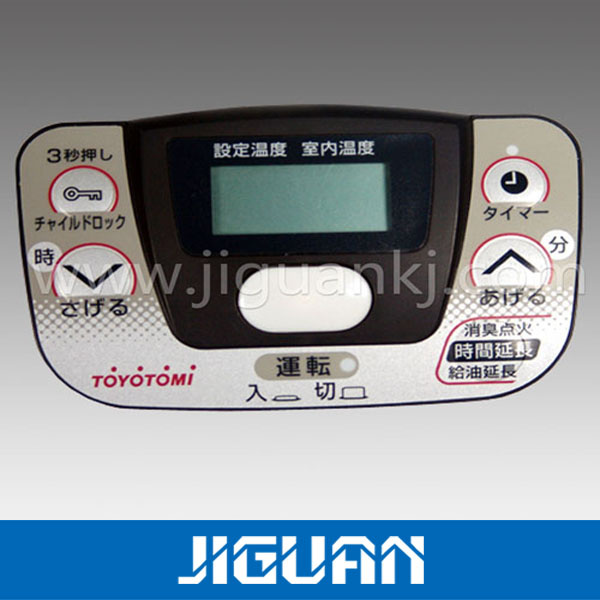

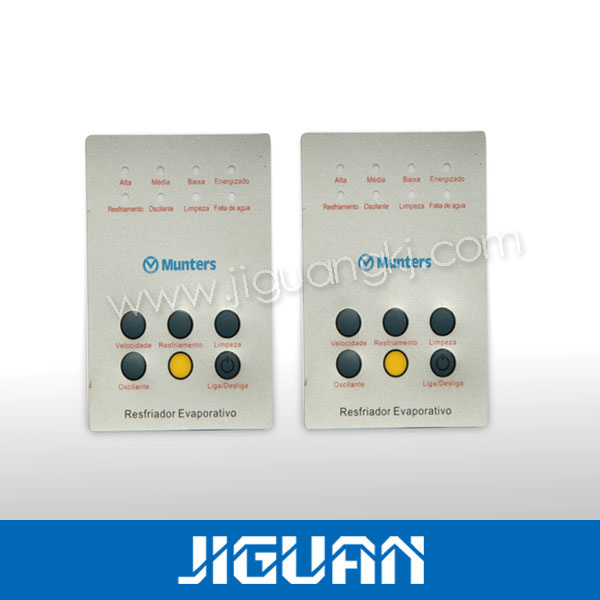

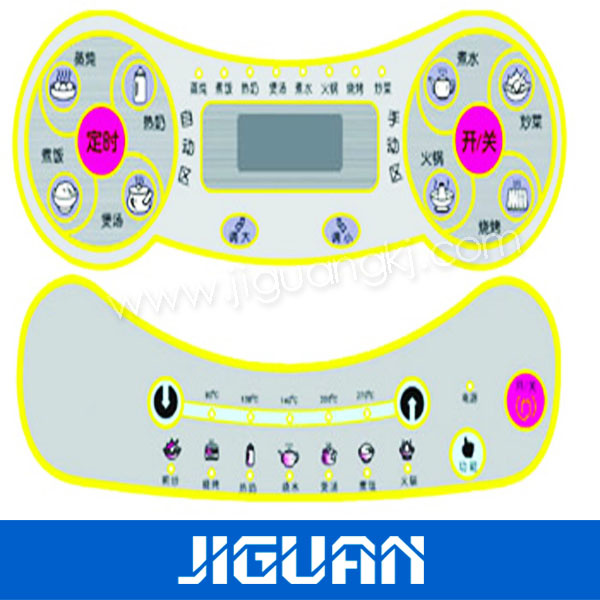

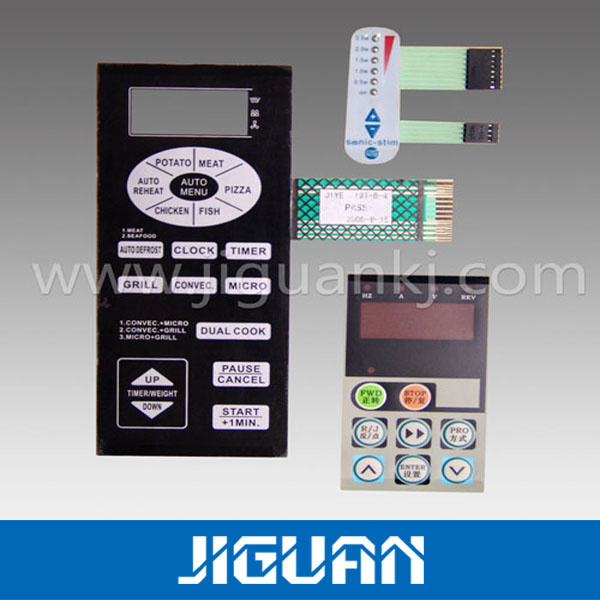

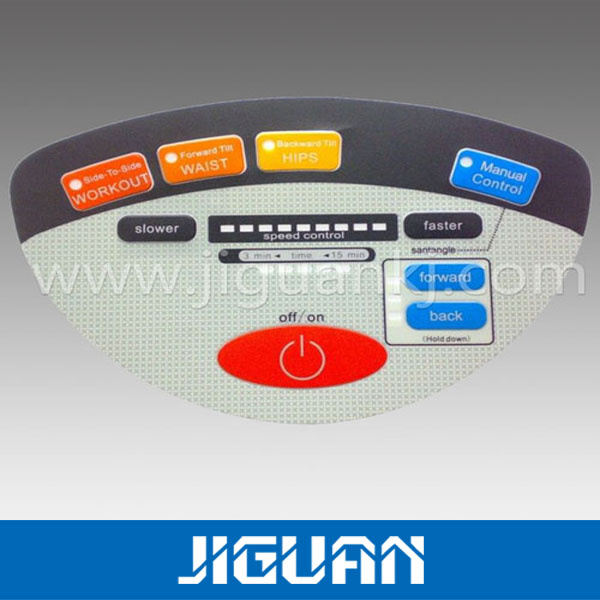

Carbon paste printed circuit membrane switch for electronic scales
A membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: A membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.
Membrane switches are user-equipment interface utilities that allow for the communication of commands from users to electronic devices. Membrane switches can be thought of as one category of interface utilities alongside touch screens, plastic keyboards, toggle switches and many other kinds of control systems. Interface utilities can be as simple as tactile switches for controlling lighting, and they can be as complicated as membrane keyboards and switch panels for use with computers.
Product details:
This type is somehow similar to single layer type by means of metal dome contacts attached under Maylar. But the difference is that, in this type, the Spacer is attached under the metal dome contacts. Air paths which function like air holes in single-layer, helps provide good click-feeling when dome contacts are pressed. Besides this effect, air paths help reduce the chance for PET film being damaged by metal dome contacts' burr and block dust coming into PET films.
1. Overlay materials:
A variety of overlay materials are used in membrane switch appliactions. Different material performs differently. Often, Matte PC (smooth), gloss PC + matte oil, gloss PC, PVC and PET(Polyester) are more suggested.
2. Adhesive: 3M9448, 3M9080, 3M467, 3M468 etc...
3. Tactile feedback for button switches:
For obtaining a good feedback from the buttons, there are usually two methods to make it.
A. Raising certain areas of the graphic overlay by tooling can be offered --Poly Domes. And the shapes and styles of the embossing can be various flexibly. Common hard-tooled embossing types include: Ring embossing, pillow embossing and dome embossing.
B. Adding extra parts on the switch to get the crisp effect--Metal domes. Metal domes can be provided in several different sizes according to the switch size.
4. Cut-outs
For some products, it needs holes and cutouts to meet its final application. Usually, these cutouts are achieved by laser cutting machine and hard tooling punching.
5. Flat flexible cable
As a keypad, it is usually required to have conductive performance. It is the circuit called in the membrane industry. It can be flexibly designed on a polyester sheet with silver conductivity printed. Also it can be copper etched for a better stability in the performance
Shipment:
Shipping by air, by sea, by express;
Goods will be ready within 2weeks after receiving the payment;
Pictures or the producing process will be send to you then;
If you choose way of express-ready product pictures and tracking number will be provided to you after goods dispatched.
ABOUT US:
As an expert manufacturer of Professional production factory, we have rich experience in these field;
Our products are exported to Europe, North America, South America, Africa, many countries in Asia, all the world.
1.Electronic characteristics
|
Circuit rating
|
35V (DC), 100mA, 1W
|
Contact resistance
|
10Ω~500Ω (According the trace length and materials)
|
Insulation resistance
|
> 100MΩ 250V DC
|
Contact bounce
|
≤ 5ms
|
Dielectric withstand
|
250VRms (50~60Hz 1min)
|
Life expectancy
|
flat type≥ 5 million times, tactile type≥ 1 million times
|
2.Mechanical Properties
|
Actuation force
|
flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz)
|
Switch stroke
|
flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm
|
3.Environmental parameters
|
Operating Temperature
|
-40°C~+80°C
|
Storage temperature
|
-40°C~+85°C
|
Humidity
|
40°C, 90% ~95%, 240 hours
|
Dongguan JiGuan Technology Co., Ltd. is a high-tech enterprise integrating anti-counterfeiting printing, screen printing, label printing, offset printing, 3D lenticular printing and gold foil embossing.
"Quality Foremost, Customer First" is our primary business principle. Since the establishment of our company in 2002, we have always adhered to the operation concept of leading the market and have built a consolidated and complete service system to cater to our customer's diverse needs. We are using the modern equipments which were introduced from advanced countries and regions like Japan, Germany and Taiwan. We also have our own product Research and Development (R&D) Departments to grasp market trend so as to bring forth the latest technology in the anti-counterfeiting and printing field. In order to provide our customers with better quality and service, with dedicated efforts of our employees, our company has successfully passed the authentication of ISO 9001: 2000 international standard and numerous products are recognized by SGS, UL, CAS.
Business scope:
2D/3D hologram sticker, laser DOT matrix hologram label, heat pressing or hot stamping hologram roll, ID card hologram overlay, tamper proof sealing label, warranty sticker, VOID tamper evident label, telegraph code trade mark, scratch off security sticker, lottery scratch card, security ticket and coupon, security certificate and document paper, metallic thread security paper, watermark, textured graphic, microtext, fluorescent invisible graphic and text, latent image, light sensitive image, heat sensitive image, magnetic ink printing, Anti-alteration ink printing, water sensitive ink printing(disappear or turn red when wet), invisible encryption anti-counterfeiting techniques, speech recognition anti-counterfeiting techniques
Overlay panel for remote controller, mobile phone, apparatus, meter and clock, membrane panel and membrane switch for household appliances, poly dome and metal dome membrane keypad, embossed graphic overlay, silk screen printed PVC/acryl /polyester/polycarbonate sticker, LCD window overlay panel, silk printing and engraved aluminum/Copper/stainless steel metal nameplate, signboard, epoxy dome sticker,
Various self-adhesive labels, printable thermal label, thermal transfer label, serial number sticker, bar code label, transparent label, holographic label, removable label, partial adhesive label, static sticker, weatherproof vinyl sticker for outdoor use, waterproof sticker, die cut vinyl sticker, heat resistant sticker, car decal, window sticker, crystal sticker,
Brochure, instruction, manual, catalogue, printed card, insert card, head card, sewing tag, hang tag, poster, gift bag, printed packaging box, gift box, PP/PVC plastic card, PVC/PP/PET plastic box, calendar, notebook
3D lenticular printing, 3D lenticular card, 3D lenticular sticker, 3D lenticular ruler, 3D lenticular bookmark, 3D poster, 3D lenticular picture, 3D coaster, 3D mouse pad, 3D lenticular box
Gold/silver embossed badge, gold/silver foil embossing overlay panel, gold foil gift, holographic film roll, PVC/PP/PC/PET embossed plastic sheet, diffused plastic sheet for LED, electronic material, advertising gift
Special printing: Partial UV, Matt UV, matt gold and silver, pearl ink, colored iridescent powder, transfer, sparkle, painting, flocking, water transfer, reflection, luminous, sublimation, offset, sticky beads
Application area:
Electronics, house appliances, communication, medicine, network, car, safety-guard system, toys, food, home appliances, daily goods, garments, Building Material, gifs, mechanisms, office appliances, sports wears and so on.
