| Prod Model: |
Car gps tracker 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
3.7V 6000mA/H Polymer Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
Mediatek |
| Operating Principle: |
GSM GPS GPRS Tracker |
| Port Number: |
20 |
| Carrier Frequency: |
2g GPS Tracker |
| Brand: |
Coban |
| Certification: |
Ce FCC |
Product Description
Long Battery Life Vehicle GPS Car Tracker with Oil and Power Cut off 1041. Detailed description:Waterproof shell
Built-in large capacity 6000MA battery, long standby time of 60 days.

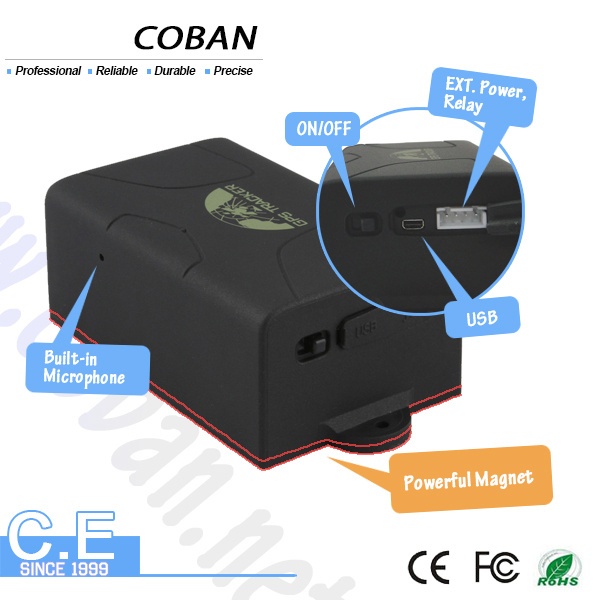

Powerful magnets to absorb to vehicle firmly.
Real-time tracking, retrieve of lost vehicles, cargo.
Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.

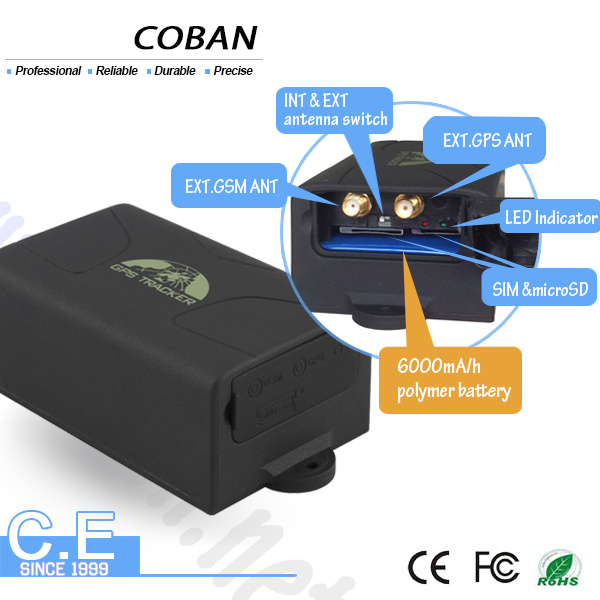

Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
tracking function by timing and frequency
Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
Low battery alarm function
Remote Engine-stop and Resume.
2.Applying directions: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
3.Technology parameter:
Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| Deep sleep | 0.6mA |
| GSM operating Current | 68mA±3mA |
| GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |

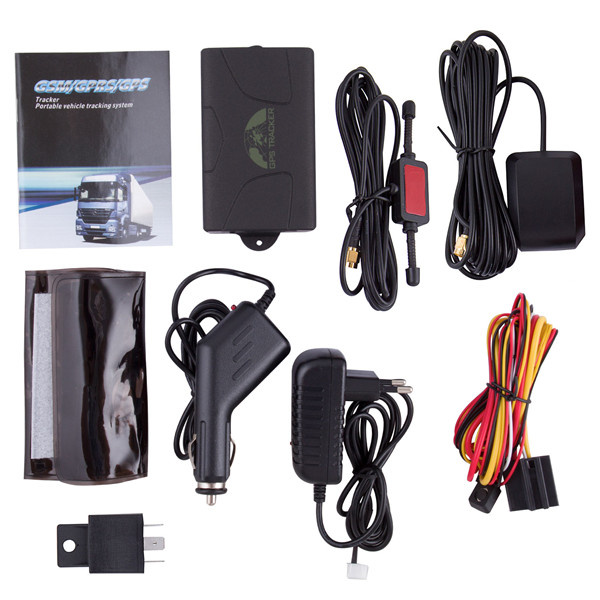

4.packaging1 X GPS Tracker 104
1 X AC adapter (Input: AC 100-240V,Output DC: 1.5A,12V)
1 X Lighter car adapter (Car 12V OR 24V power)
1 X GPS Antenna
1 X GSM Antenna
1 X Relay
1 X Harness

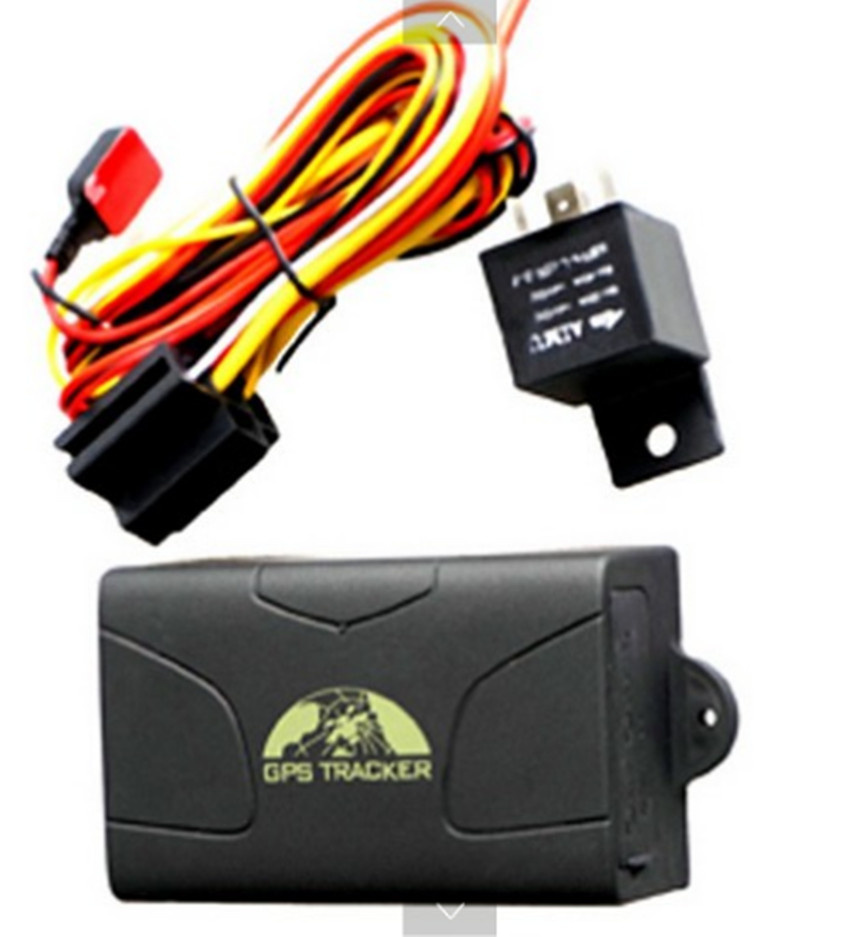

5.product picture
6.Warranty1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

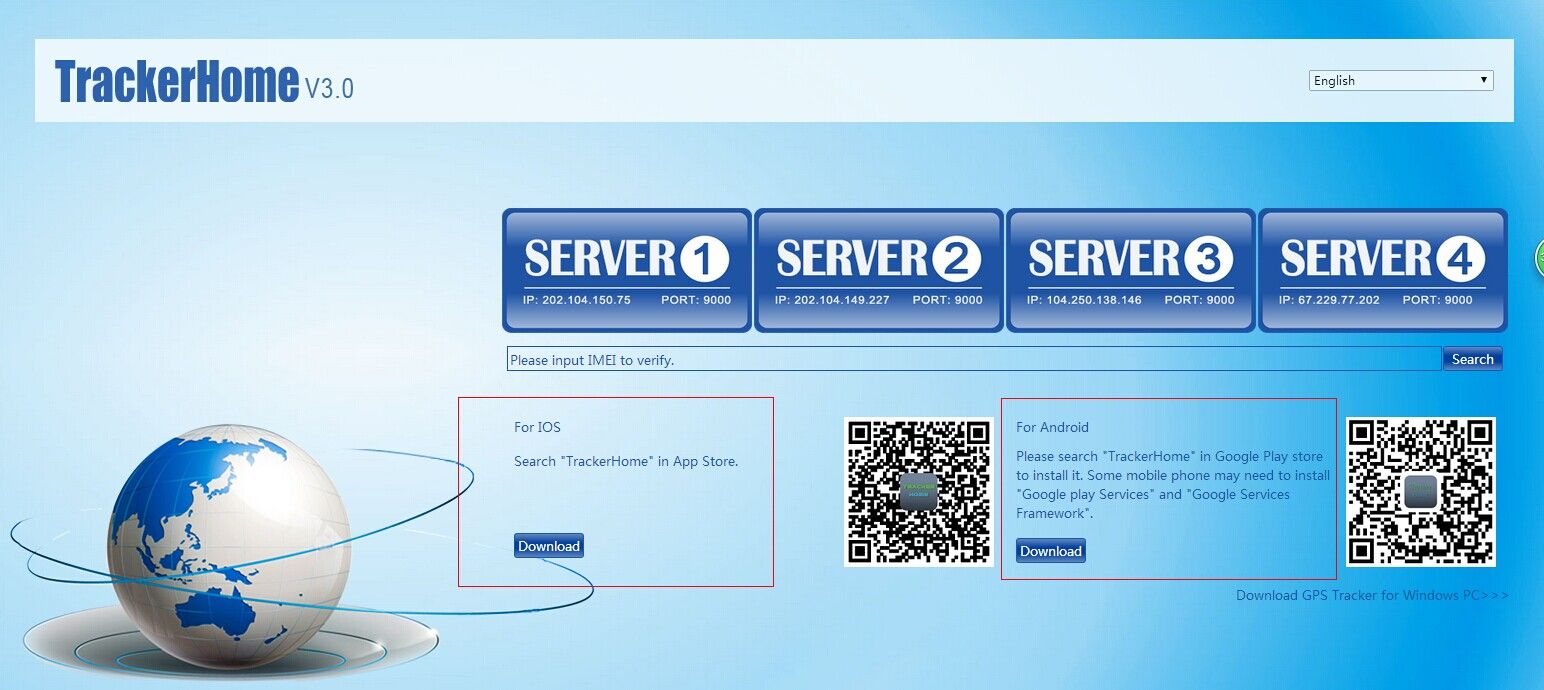

7. tracking platform and APP
www.gpstrackerxy.com server1 user: demo password: 8888
android and ios app

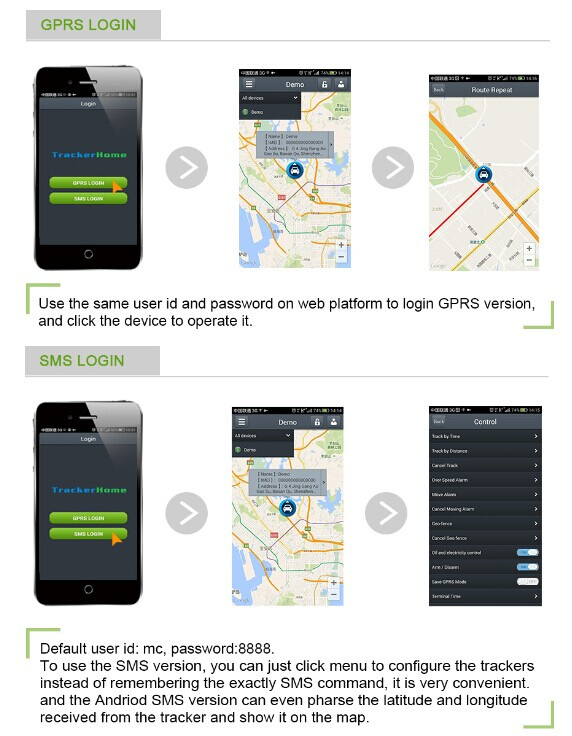

New GPRS LOGIN and SMS LOGIN
