Carling Waterproof LED Indicator Light Rocker Spst on-off Switch

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Pin:	3 Pins
Panel Cutout Dimesion:	36.8*21mm
Feature:	Waterproof Switch
Hxwxd:	42X24X40mm
Rating Ampere:	20A
Max. Voltage:	24V
Usage:	Digital Products
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Packaging & Delivery

Packaging Details:	50pcs in a box, normal carton
Delivery Detail:	7-14days after confirm payment


.

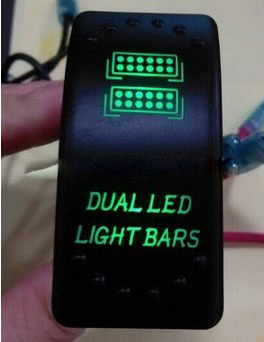

Rocker switch

Descriptions :

ON - OFF switch

Black hard surface rocker.

Rate: 20A 12V or 10A 24V

Color: Black

Pls choose the light you need, then leave message to us for the order! we accept mix order!

Description:

 Ultra-high-end luxury switch with LED indicator light
CE certified quality, made of environmentally friendly anti-retardant materials
12-24v car universal voltage; suitable for conversion control car people all equipment
Output circuit protection, overload protection, reverse polarity protection, multiple protection, safety to use.

Fitment:
Suitable for all 12 / 24v car battery installation, such as cars, motorcycles, buses, boats, RVs, boats, trailers, etc.

Specifications:

Material: ABS & Environmental anti-retardant materials
Color: Black
LED Light Color: Blue
Number of light: 2 led light
Quantity: 1 pc
Dimension: like the picture show
7 Patterns(type):
LED Light Bar / Reverse Light / Spot Light / Driving Light / Tray Light /
Zombie Light /  Rear Light
Type: SPST
Electrial: ON-OFF
Pin: 5


Single Pole Single Throw ON-OFF switch
Black hard surface rocker.
Available in Green LED design and Blue character.
Rating:20A 12V DC
          10A 24V DC
Size of Drill:37.2 x21.2mm


Wiring Diagram:
Connect [Pin 2 and Pin 6] to positive (+)
Connect [Pin 7 and Pin 8] to negative (-)
OFF: Character Lamp on (Blue led)
ON: Character and Design lamps both on(Green and Blue LED)

Package Contents:
1x Rocker Switch
